Repair information 4-185

5026

Go Back

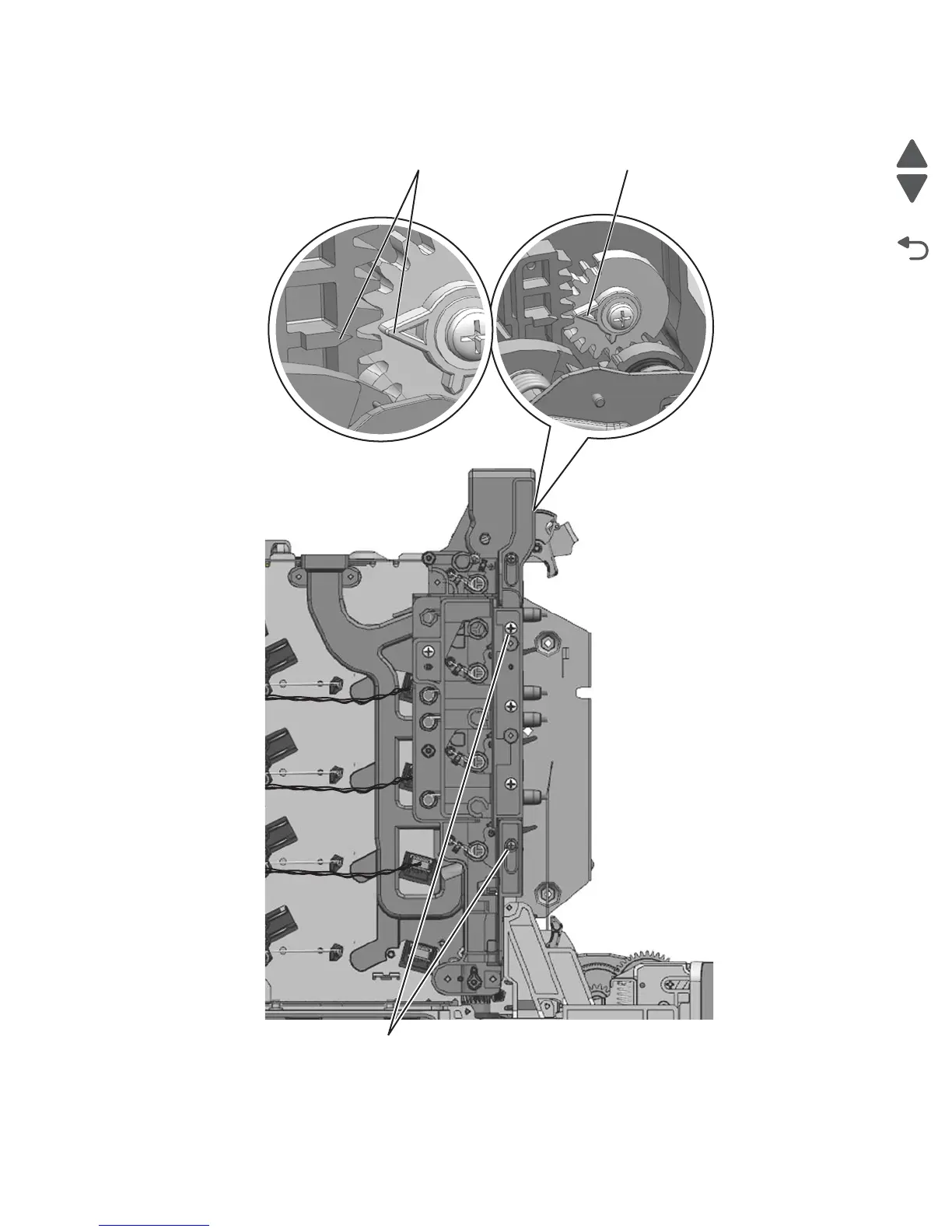

7. Use two screws (F) to attach the cleaner shutter actuator to the Waste toner HV contact assembly. Make

sure the gear aligns as shown.

F (27S2838)

RibRibs aligned
