Lexmark C734dn Service Manual

Repair information 4-187
5026
Go Back
Previous
Next

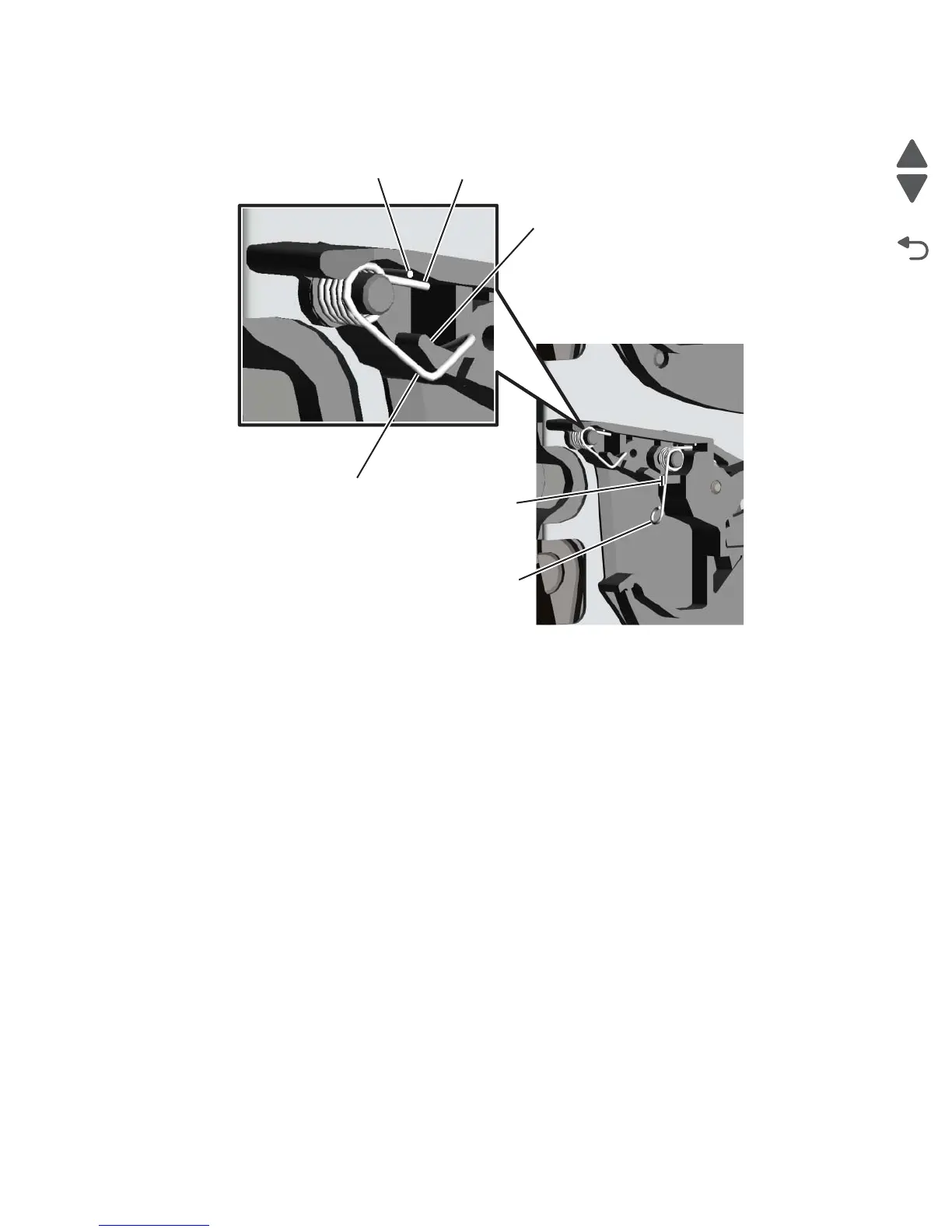

9. Install the contact springs. When installing each contact spring, make sure the top half (H) of the spring is
under the straight spring (J). This is typical for both types of springs. Also make sure that the bottom half
(K,L) of both springs are compressed and locked by the appropriate locking tabs (M,N).
L
KJ
M
H
N
