Lexmark C734dn Service Manual

Diagnostic information 2-49
5026
Go Back
Previous
Next
2

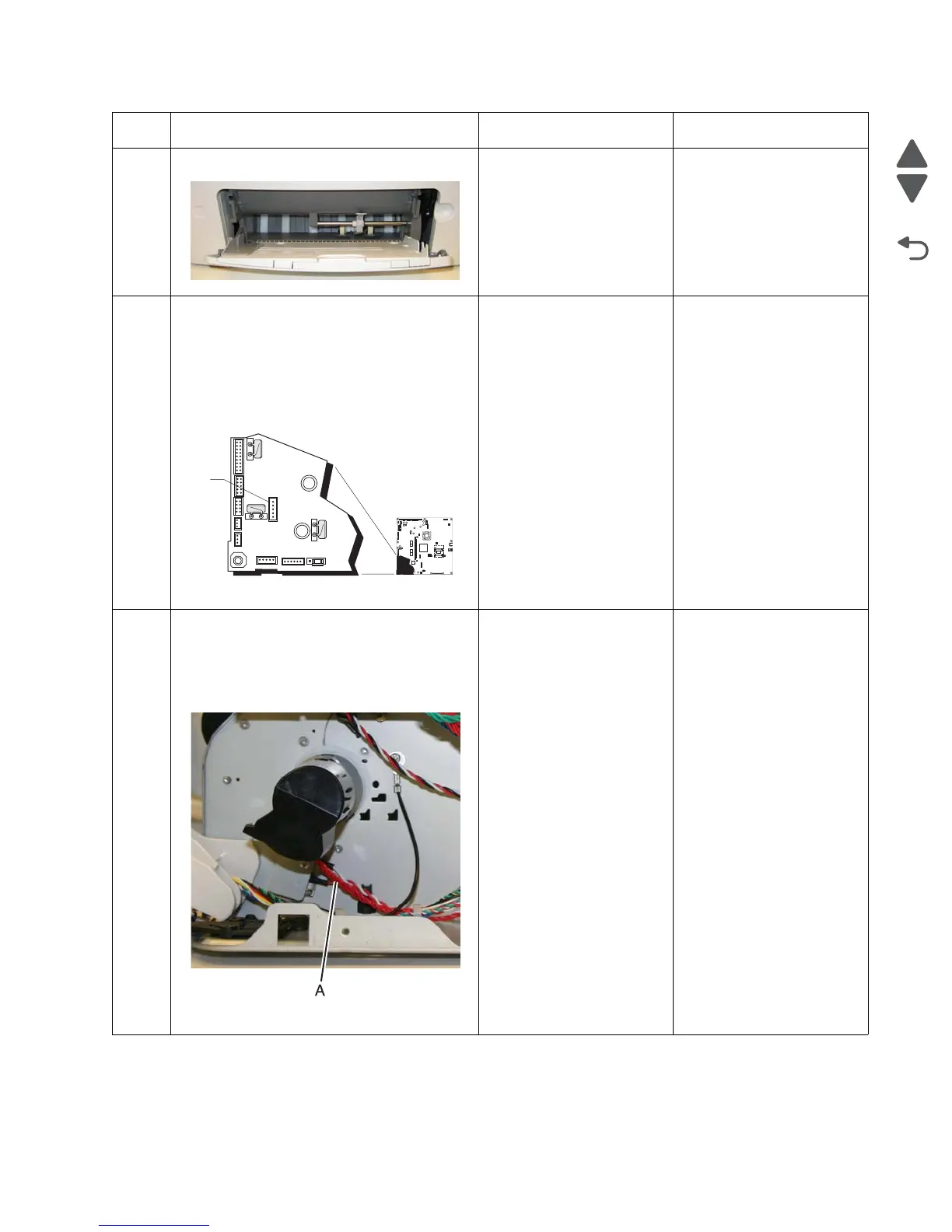

Is the multipurpose feeder damaged? Replace input tray. Go to step 3.
3
1. Turn the printer off.
2. Remove the rear frame cover. See “Rear
frame cover removal” on page 4-33.
3. Check the cable in connector JDX1 (A)
(MP feeder/duplex motor cable) for proper
connection to the system board, the cable
for pinch points, and the cable or
connector for any other damage.
Is the cable damaged?
Replace the MPF/duplex
motor cable. See
“Multipurpose feeder
(MPF)/duplex motor
cable removal” on
page 4-121.
Go to step 4.
4
Remove the right cover. See “Right cover
removal” on page 4-37. Check the MP
feeder/duplex motor cable for proper
connection to the MPF/duplex motor, pinch
points for the cable, and damage to the cable
or connector.
Is either cable damaged?
Replace the MPF/duplex
motor cable. See
“Multipurpose feeder
(MPF)/duplex motor
cable removal” on
page 4-121.
Go to step 5.
Step Questions / actions Yes No
1
JSB1
JBIN1
JFAN1
JFUSER1
JBOR1
JHVPS1
JMIRR1
JBLW1
JCVR1
JLVPS2
JCARTP1
JCARTS1
JCARTS2
JCARTP2
JDVR1
JTPS1
JOPT1
JFDS1
JINT1JINT1
JFDPCK1JTRAY1JSEC1
JDX1
JT12
J5
JDIMM1
JOPP1
JT1
JUSB1
JBOOT1
JFMUSB1
J49
JTWF1
JTDBUG1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
JTLBT1JTLBT1
JPH1
F5
F6
F7
F9
F10
F12
F13
F14
1
1
J10
1
1
A
