2-52 Service Manual
5026
3

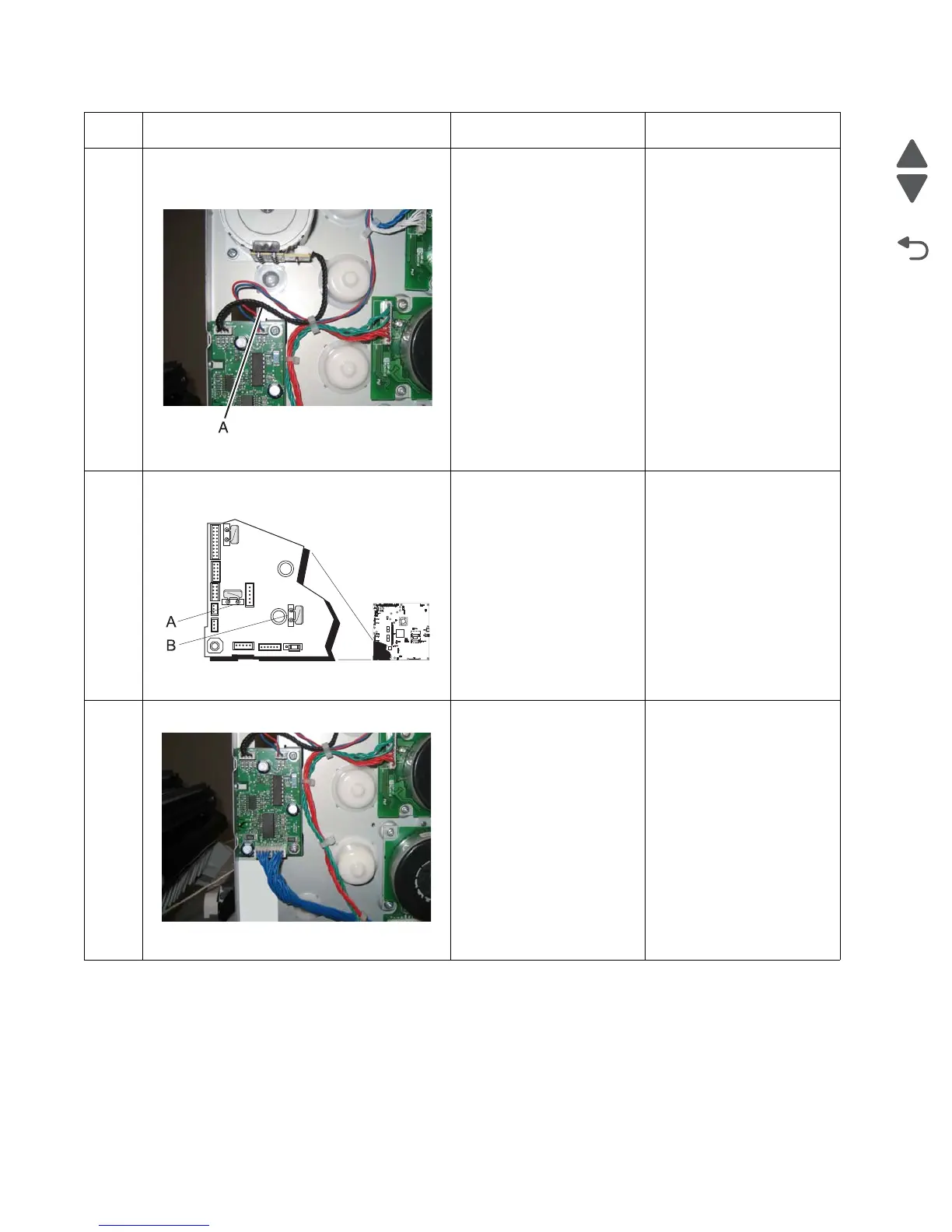

Check the transport motor cable from the cam
motor to the motor driver card for poor
connections or damage.
Is the cable damaged?
Replace the transport
motor cable. See
“Transport cable
removal” on page 4-170.
Go to step 4.
4
Measure the resistance across fuses F12 (A)
and F13 (B) on the system board.
Is either fuse blown?
Replace the system board.
See “System board
removal” on page 4-153.
Go to step 5.
5
Visually inspect the motor driver card.
Is the motor driver card damaged?
Replace the motor driver
card. See “Motor driver
cable removal” on
page 4-115.
Replace the EP drive
assembly. See
“Electrophotographic
(EP) drive assembly
removal” on page 4-82.
