MAINTENANCE AN D SERVICING
4. Remove four M10 hex flange head bolts (A), and
remove top pla te (B) and drum top (C).

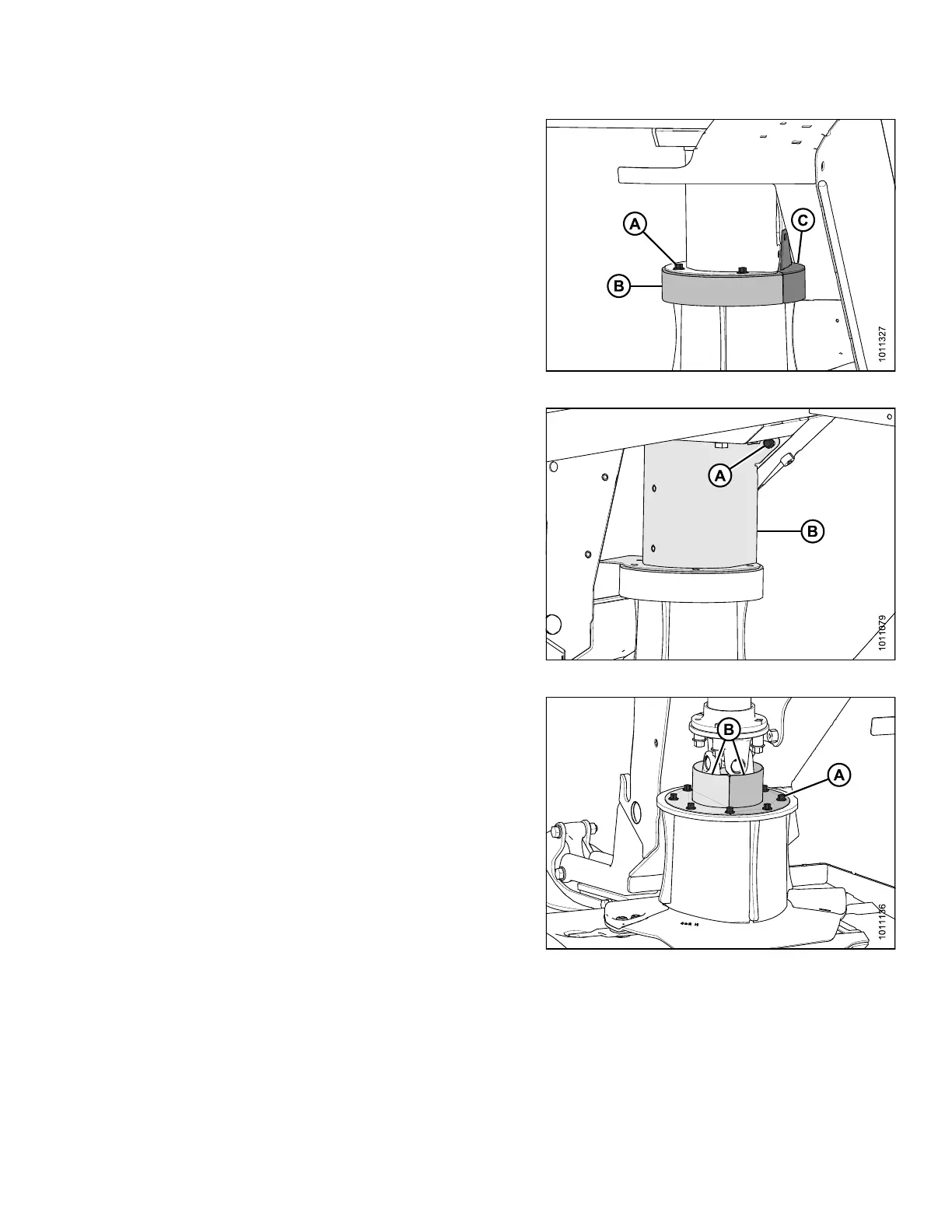

Figure 4.103: Top Plate and Drum Top
5. Remove M10 hex flange head bolt (A) and remove
vertical sh ield (B).
Figure 4.104: Vertical Shield
6. Remove eight M8 hex flange head bolts (A), and
remove two drum shields (B).
Figure 4.105: Drum Shields
147910 167 Revision A
