MAINTENANCE AN D SERVICING
26. Close both lift cylinder lock-out valves (A).
27. At left side of carrier, install tensioner bolt (B)
into s pring .
28.Turninbothfloat spring tensioner bolts (B) to achieve
the following exposed thread (C) measurements:
• 5-11/16–6-1/8 in. (145–155 mm) for 13-foot
• 3-3/4–4-1/8 in. (95–105 mm) for 16-foot
29. Replace the driveshields. Refer to 3.2.2 Closing
Driveshields, page 34.

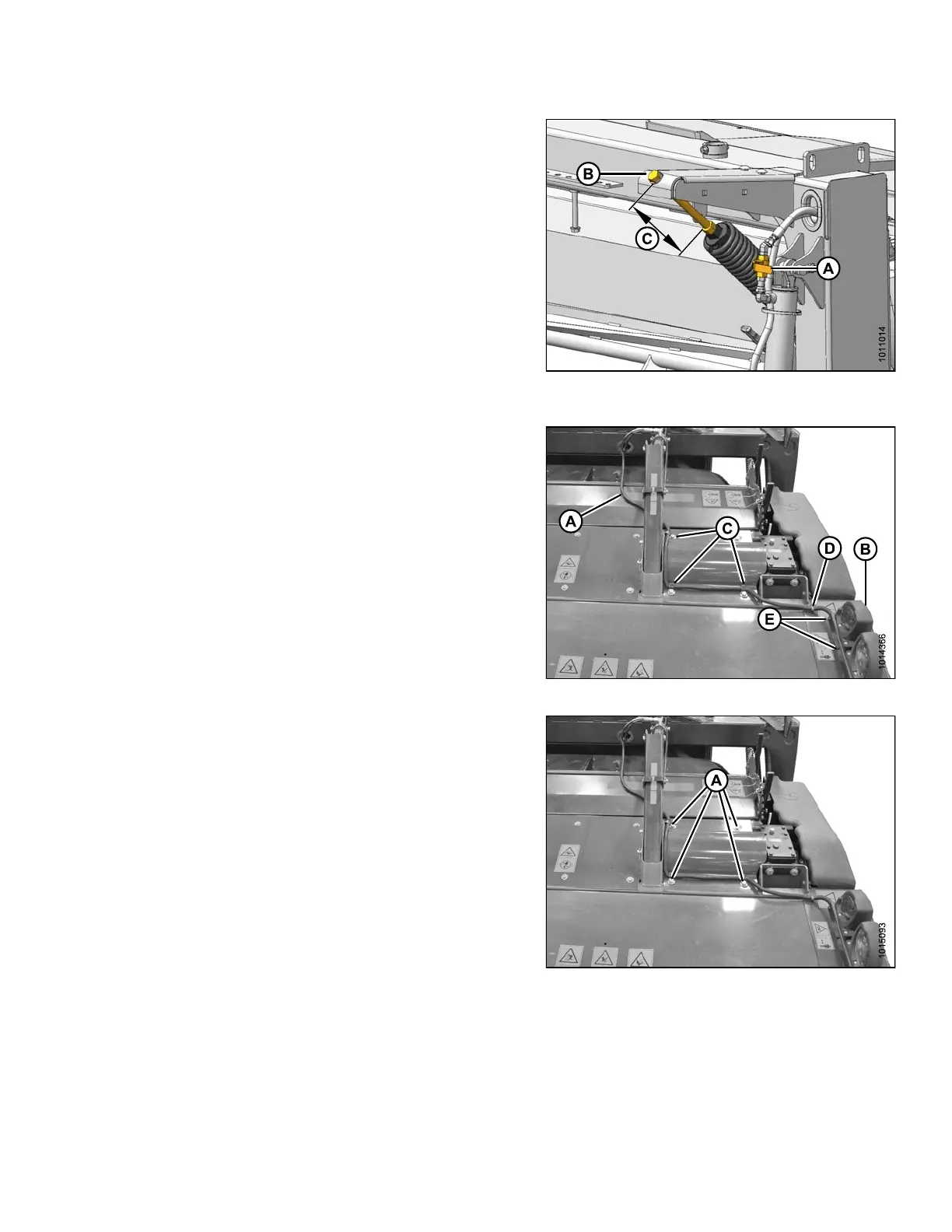

Figure 4.287: Right Side Shown – Left
Side Similar
30. If Road Friendly Transport
™
system is installed,
reconnect electrical harness (A) to the lights (B) and
secure harness to shielding using existing clips (C)
and (D).
31. Secure harness to light bracket with cable ties (E).
Figure 4.288: Electrical Harness
32. Tighten the four M10 hex hea d bolt s (A) and
flat washers. Torque to 20–22 ft·lbf (27–30 N·m).
Figure 4.289: Electrical Harness
147910 243 Revision A
