OPERATION
3. While light is illuminated, raise the mower
conditioner fully.

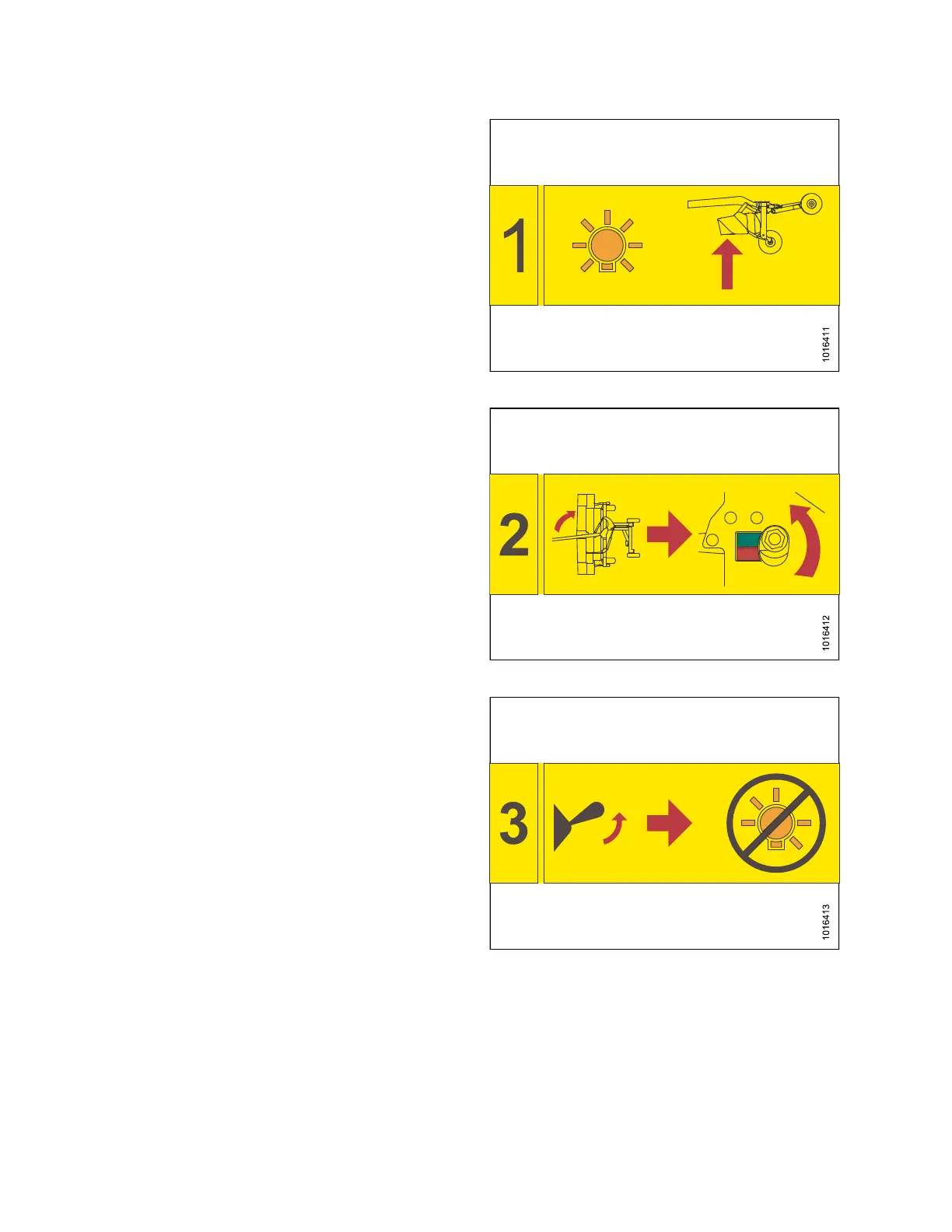

Figure 3.80: Raising Mower Conditioner
4. Operate th
e hitch swing control lever t o rotate the
mower cond
itioner to the right until cam bearing nut
is aligned
with the green section of the tr ansport
alignmen
t gauge decal.
Figure 3.81: Mower Conditioner Rotation
5. Move tr
ansport switch to the upper position and ensure
that t
he light is NOT illumin ated . The hitch swing circuit
is now
deactivate d a nd the transport circuit is act ive.
Fig
ure 3.82: Transport Switch
147910
