OPERATION
6. Operate hitch swing control lever to lower transport
wheels (A) and hold lever until mower conditioner is
lifted off the ground.
7. Continue to hold the hitch swing control lever so that
the mower conditioner (B) rotates to the left and under
the hitch.
8. Releas e h itch swing control lever w h en mower
conditioner (C) stops rotating.

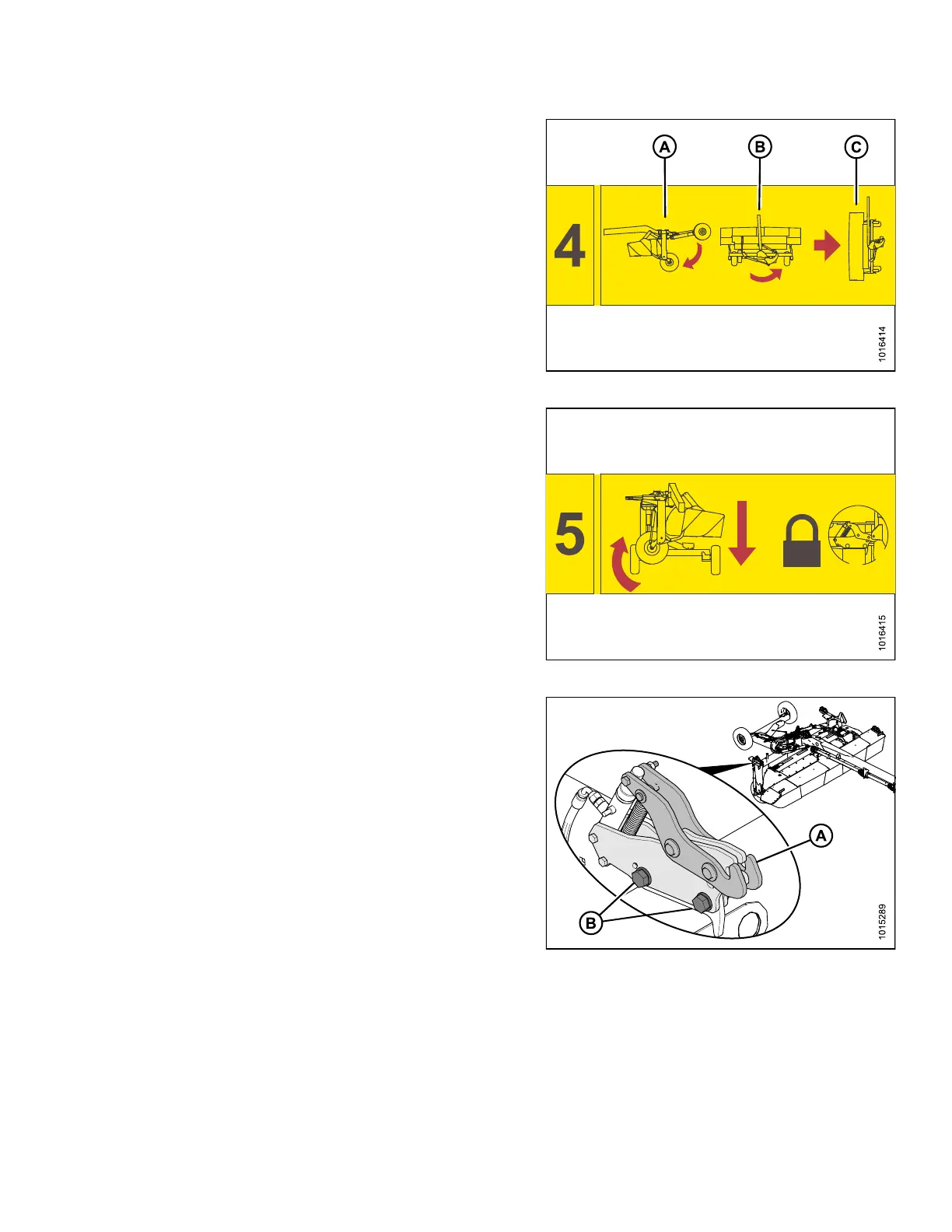

Figure 3.83: Transport Assembly Rotation
9. Operate the lift control lever to lower the mower
conditioner onto the transport assembly, to raise the
field wheels, and to engage transport latch onto hitch.
Figure 3.84: Transport Assembly Lowering
10. If necessary, adjust position of latch assembly (A) so
that it engages hitch. Torque bolts (B) to 340 ft·lbf
(460 N·m).
Figure 3.85: Transport Latch
