LOCATION INDEX
F3
F
INTAKE-AIR SYSTEM
A6E390013000W01
.
LOCATION INDEX

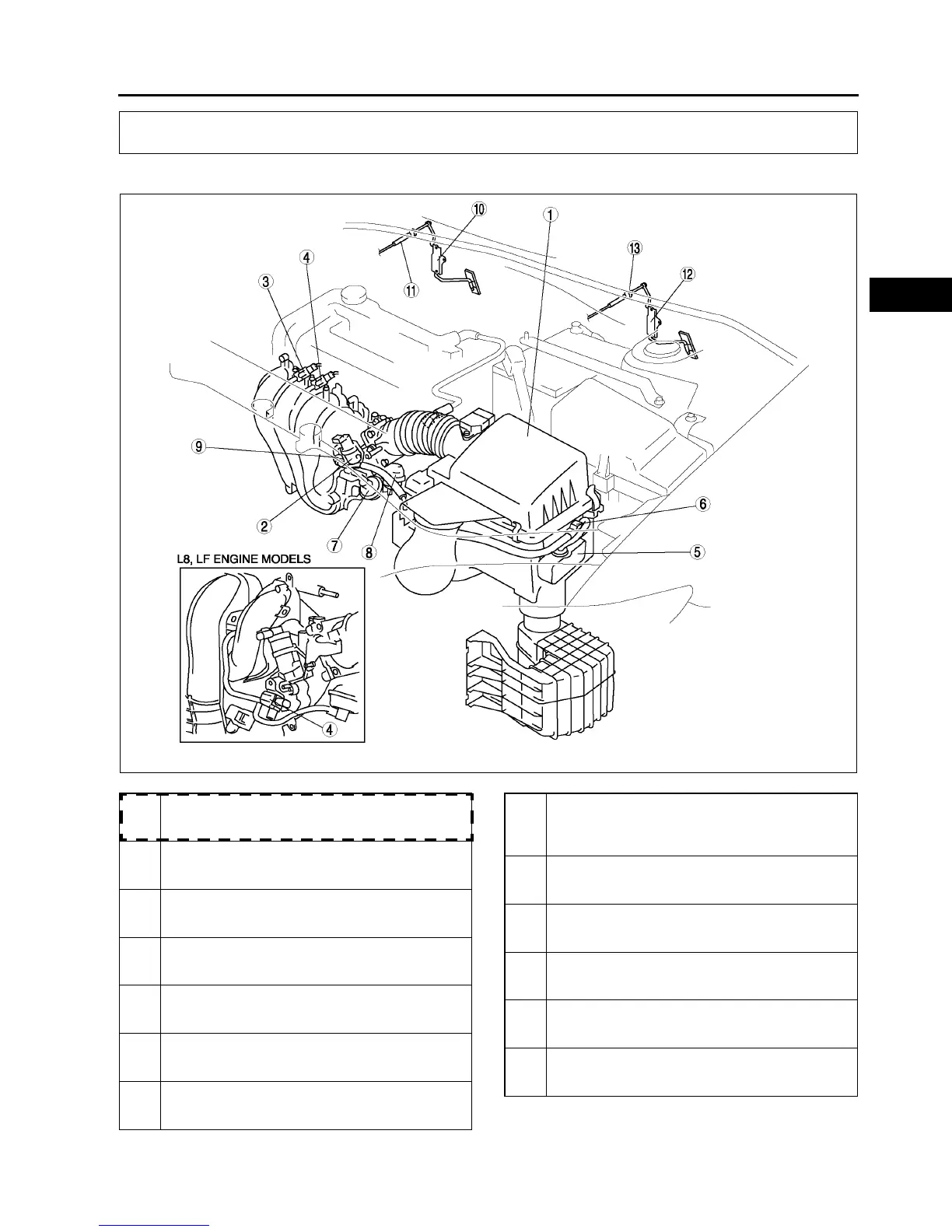

A6E3910W018
1 Air cleaner
(See F10 INTAKE-AIR SYSTEM REMOVAL/
INSTALLATION)
2IAC valve
(See F13 IDLE AIR CONTROL (IAC) VALVE
INSPECTION)
3 VIS control solenoid valve (L3)
(See F14 VARIABLE INTAKE-AIR SYSTEM (VIS)
CONTROL SOLENOID VALVE INSPECTION (L3))
4 Variable tumble control solenoid valve
(See F15 VARIABLE TUMBLE CONTROL
SOLENOID VALVE INSPECTION)
5 VAD shutter valve (L3)
(See F12 VARIABLE AIR DUCT (VAD) SHUTTER
VALVE INSPECTION (L3))
6 VAD control solenoid valve (L3)
(See F13 VARIABLE AIR DUCT (VAD) CONTROL
SOLENOID VALVE INSPECTION (L3))
7 VIS shutter valve actuator (L3)
(See F14 VARIABLE INTAKE-AIR SYSTEM (VIS)
SHUTTER VALVE ACTUATOR INSPECTION (L3))
8 VTCS shutter valve actuator
(See F15 VARIABLE TUMBLE CONTROL
SYSTEM (VTCS) SHUTTER VALVE ACTUATOR
INSPECTION)
9 VAD Check valve (one-way) (L3)
(See F13 VARIABLE AIR DUCT (VAD) CHECK
VALVE (ONE-WAY) INSPECTION (l3))
10 Accelerator pedal (R.H.D.)
(See F16 ACCELERATOR PEDAL REMOVAL/
INSTALLATION)
11 Accelerator cable (R.H.D.)
(See F16 ACCELERATOR PEDAL REMOVAL/
INSTALLATION)
12 Accelerator pedal (L.H.D.)
(See F16 ACCELERATOR PEDAL REMOVAL/
INSTALLATION)
13 Accelerator cable (L.H.D.)
(See F16 ACCELERATOR PEDAL REMOVAL/
INSTALLATION)
