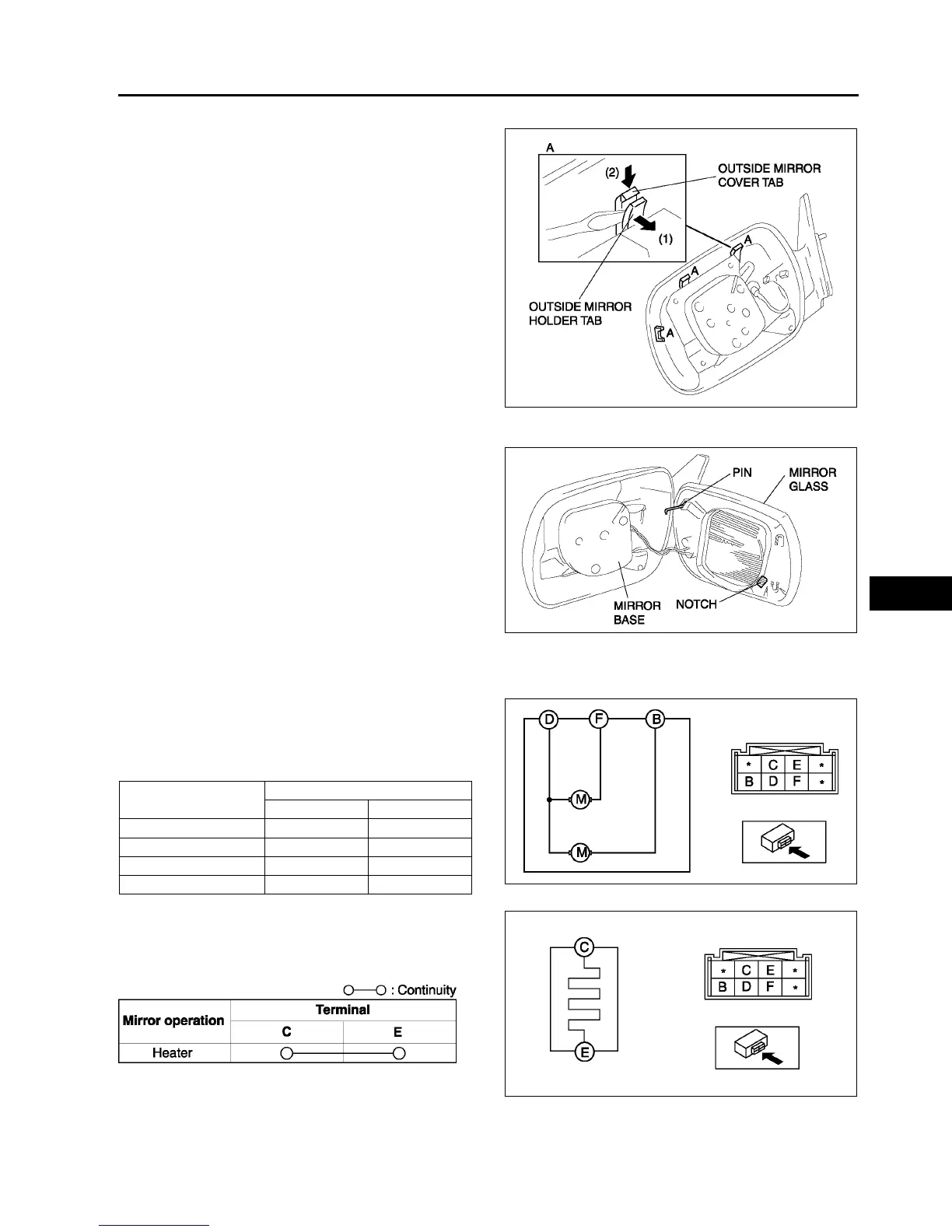

OUTSIDE MIRROR
S59
S
Cover Disassembly Note
1. Pull off the mirror holder tab with a screwdriver
and press the mirror cover tab downward.
Outside Mirror Glass Assembly Note
1. Press the mirror into the base so that the pin does
not dislodge.
End Of Sie
POWER OUTSIDE MIRROR INSPECTION
A6E773269110W03
1. Disconnect the power outside mirror connector.
2. Apply battery positive voltage to the power
outside mirror terminals and inspect the operation
of the power outside mirror.
If not as specified, replace the power outside
mirror.
3. Inspect for continuity between the power outside
mirror heater terminals.
If not as specified, replace the power outside
mirror.
End Of Sie
A6E7732W004
A6E7732W005
Mirror operation
Terminal
B+ GND
Up B D
Down D B
Left F D
Right D F
A6E7732W007
A6E7732W009
A6E7732W010
