Mazda 6 2002 - A-Pillar Trim Removal; A-Pillar Trim Installation

TRIM
S87
S

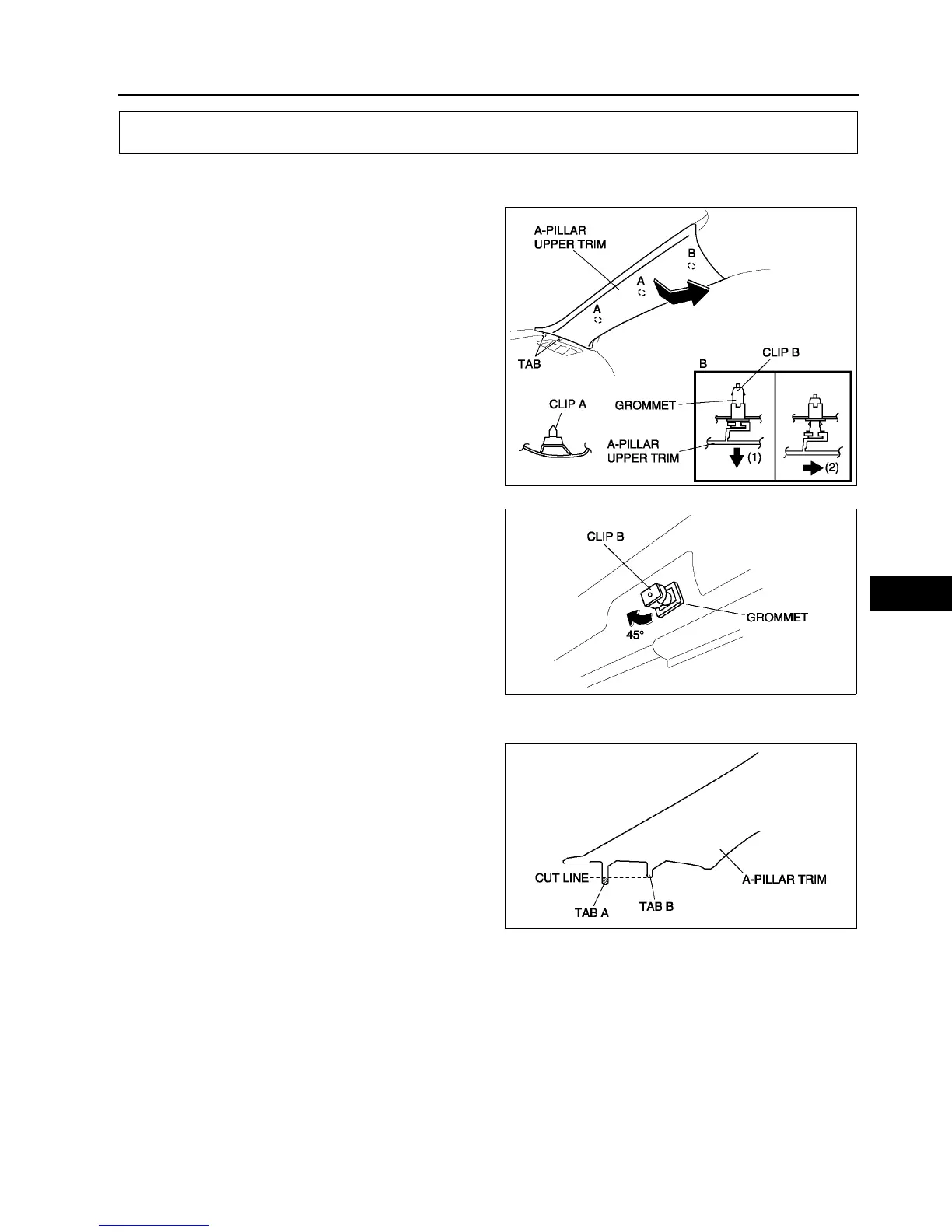

A-PILLAR TRIM REMOVAL
A6E774468160W01
1. Turn the seaming welt over.
2. Disengage clips A using a fastener remover.
3. Pull the A-pillar trim, then disengage clip B (1).
4. Pull the A-pillar trim upward, then disengage clip
B from the A-pillar trim (2).
5. Pull clip B out, then rotate 45° .
6. Remove clip B from the grommet by pulling it
toward you.
End Of Sie
A-PILLAR TRIM INSTALLATION
A6E774468160W02
1. Cut A-pillar trim tab A to the same length as tab B.
2. Install clip B to the A-pillar trim.
3. Install the A-pillar trim by tapping the clip into the
body.
End Of Sie
TRIM
A6E7744W023
A6E7744W024
A6E7744W022
