S40
TRUNK LID
6. Remove the nuts, then remove the trunk lid.
7. Remove the bolts, then remove the trunk lid
hinge.
8. Install in the reverse order of removal.
9. Adjust the trunk lid. (See S41 TRUNK LID
ADJUSTMENT.)
End Of Sie

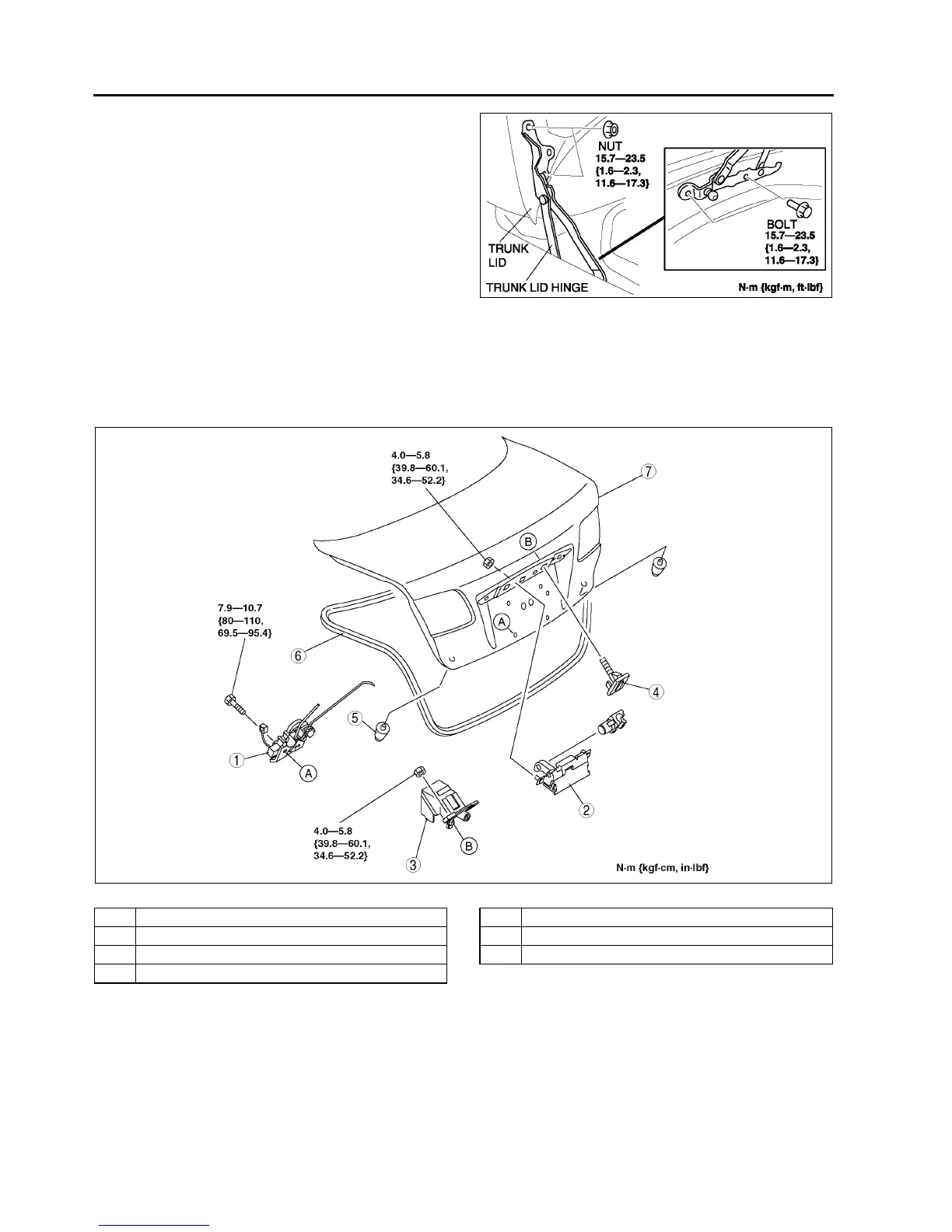

TRUNK LID DISASSEMBLY/ASSEMBLY
A6E772052610W02
1. Disconnect the negative battery cable.
2. Remove the trunk lid trim.
3. To remove the trunk lid outer handle and trunk lid key cylinder, remove the rear finisher.
4. Disassemble in the order indicated in the table.
5. Assemble in the reverse order of disassembly.
.
End Of Sie
A6E7720W007
A6E7720W006
1 Trunk Lid latch and lock actuator
2 Trunk Lid outer handle
3 Trunk Lid key cylinder
4 Clip
5 Stopper
6 Trunk Lid weatherstrip
7Trunk Lid
To Next Page
