ABS (ABS/TCS) HU/CM SYSTEM INSPECTION
A6E692143780W01
System Inspection
Preparation
1. Verify that the battery is fully charged. With the ignition switch on, verify that the ABS and BRAKE system
warning lights goes out after 2.4 seconds.
2. If the lights stays on after 2.4 seconds, the ABS (ABS/TCS) HU/CM detects a failure. Follow the
troubleshooting procedures.
3. Turn the ignition switch off.
4. On level ground, jack up the vehicle and support it evenly on safety stands. Shift the transaxle to N position.
5. Release the parking brake.
6. Rotate the wheels by hand, and inspect for brake drag.
Operation of ABS inspection
1. Perform the Preparation.

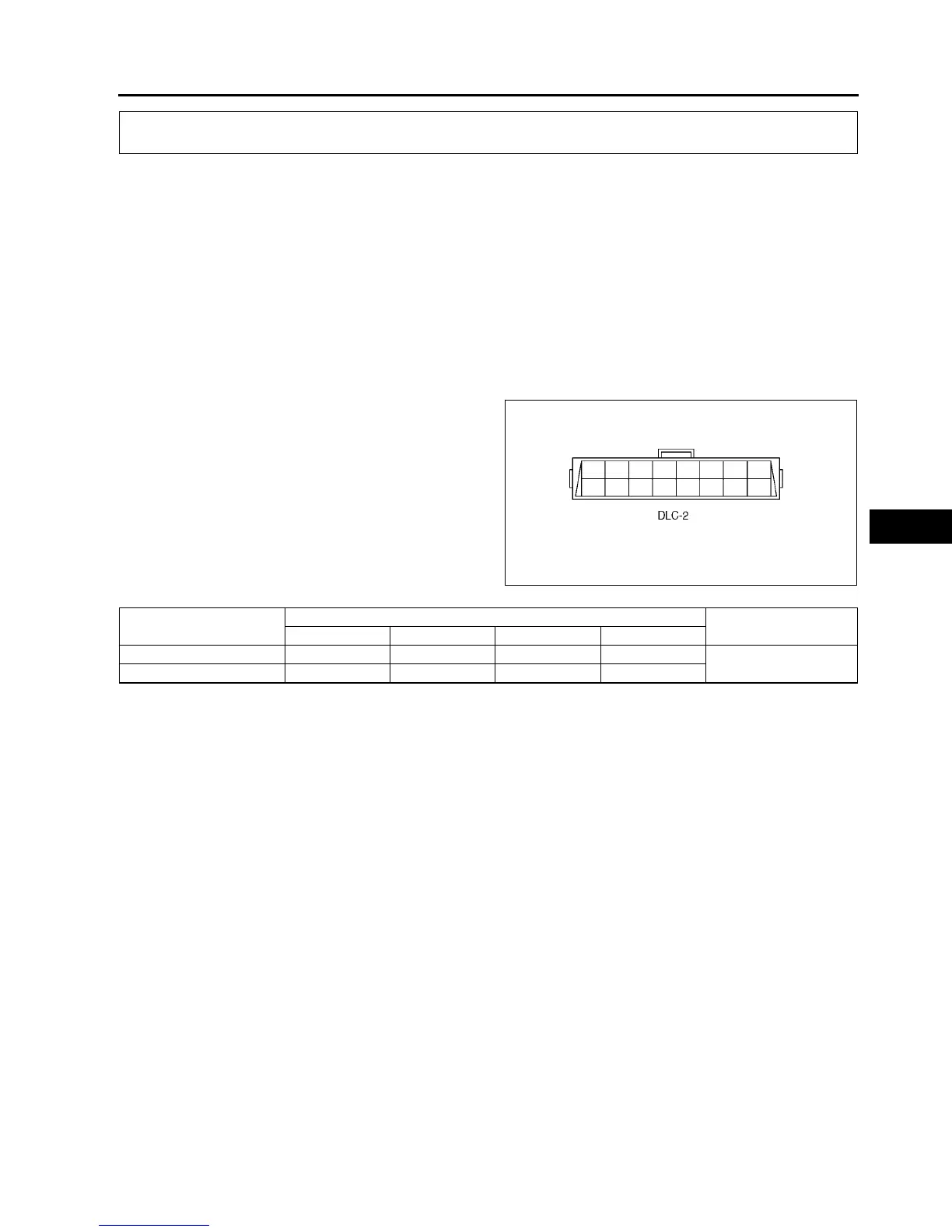

2. Connect the SSTs (WDS or equivalent) to the
data link connector-2 (DLC-2).
3. Set up an active command mode inspection
according to the combination of commands
below.
The chart above shows an example of a right wheel inspection.
Note
• When working with two people, one should press on the brake pedal, the other should attempt to rotate
the wheel being inspected.
4. Send the command while pressing on the brake pedal and attempting to rotate the wheel being inspected.
5. When pressure is being maintained, and click sound indicating the solenoid is operating comes from the ABS
(ABS/TCS) HU/CM, confirm that the wheel does not rotate. When pressure is being reduced, and click sound
indicating the solenoid is operating comes from the ABS (ABS/TCS) HU/CM, confirm that the wheel rotates,
even though the brake pedal is being depressed.
Note
• To protect the ABS (ABS/TCS) HU/CM, the solenoid valve used for simulations and the ABS motor stay
on for 10 seconds each time they are switched on.
• Performing the inspections above determines the following.
 The ABS (ABS/TCS) HU/CM brake lines are normal.
 The ABS (ABS/TCS) HU/CM hydraulic system is not significantly abnormal.
 The ABS (ABS/TCS) HU/CM wiring is normal.
• However, the following items cannot be checked.
 ABS (ABS/TCS) HU/CM input system harness and parts
 Extremely small leaks in the ABS (ABS/TCS) HU/CM internal hydraulic system
 Unusual intermittent occurrences in the above items
End Of Si e
ABS/TCS
A6E6921W007
OPERATION
COMMAND NAME
COMMAND TYPE
PMP_MOTOR RF_OUTLET RF_INLET ABS_POWER
Pressure retention OFF OFF ON ON
Manual
Pressure reduction ON ON ON ON
