Mazda 6 2002 - Power Door Lock System; Front Door Lock Actuator Inspection

S30
POWER WINDOW SYSTEM, POWER DOOR LOCK SYSTEM
Except Driver's Side
1. Apply battery positive voltage to the power
window motor terminals and inspect the operation
of the power window motor.
• If not as specified, replace the power window
motor.
End Of Sie

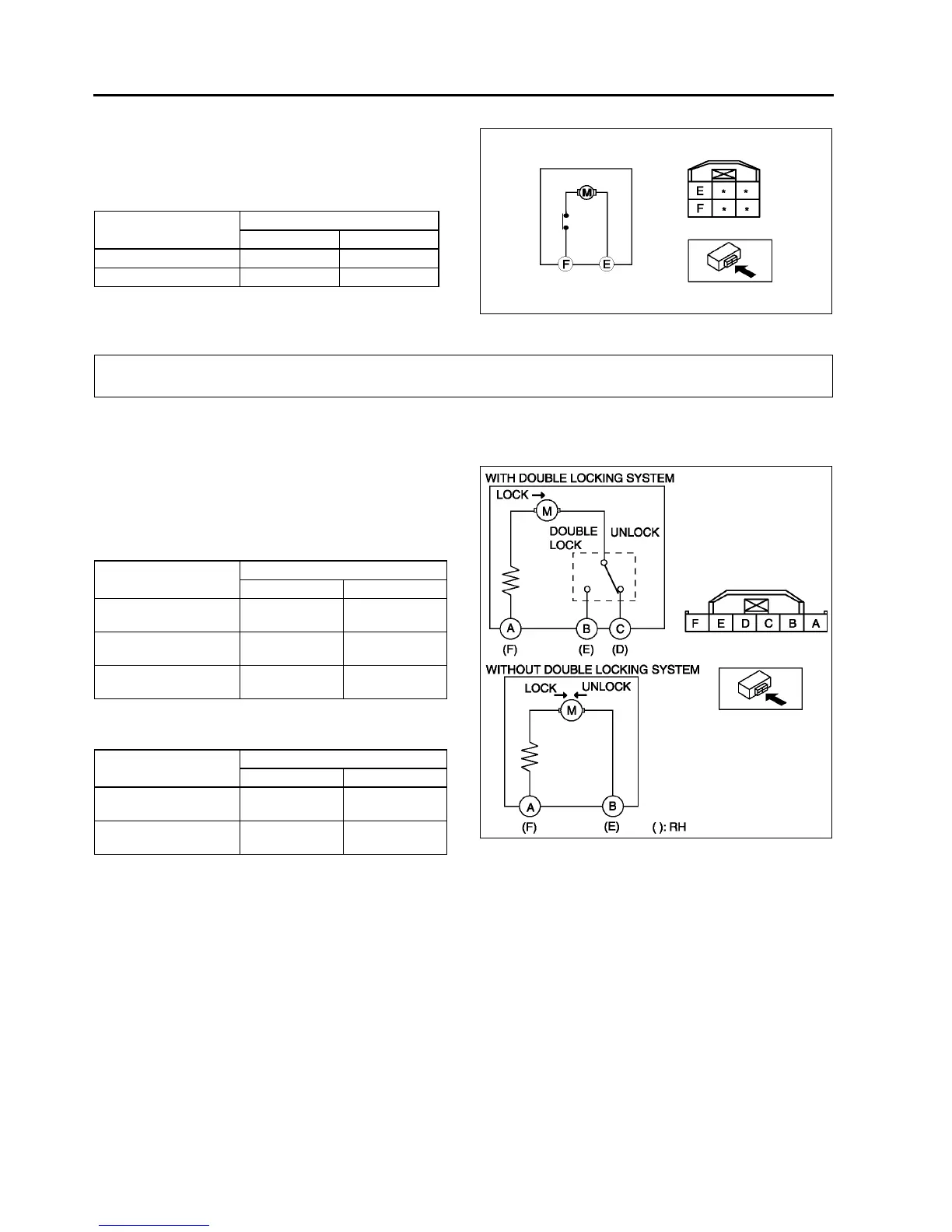

FRONT DOOR LOCK ACTUATOR INSPECTION
A6E771858310W01
Door Lock Actuator
1. Disconnect the front door lock actuator connector.
2. Apply battery positive voltage to the front door
lock actuator terminals and inspect the operation
of the front door lock actuator.
• If not as specified, replace the front door lock
actuator.
With double locking system
( ) : RH
Without double locking system
( ) : RH
Motor operation
Terminal
FE
UP GND B+
DOWN B+ GND
A6E7716W010
POWER DOOR LOCK SYSTEM
Actuator operation
Connection
B+ GND
Lock
A
(F)
C
(D)
Double lock
A
(F)
B
(E)
Unlock
C and B
(D and E)
A
(F)
Actuator operation
Connection
B+ GND
Lock
A
(F)
B
(E)
Unlock
A
(F)
B
(E)
A6E7718W011
