AUTOMATIC TRANSAXLE
K35
K
10. Remove the accumulators and accumulator
springs.
End Of Sie
CONTROL VALVE BODY INSTALLATION
A6E561421100W02
On-Vehicle Installation
Caution
•
••
• Be sure to align the parking rod and the
manual valve.

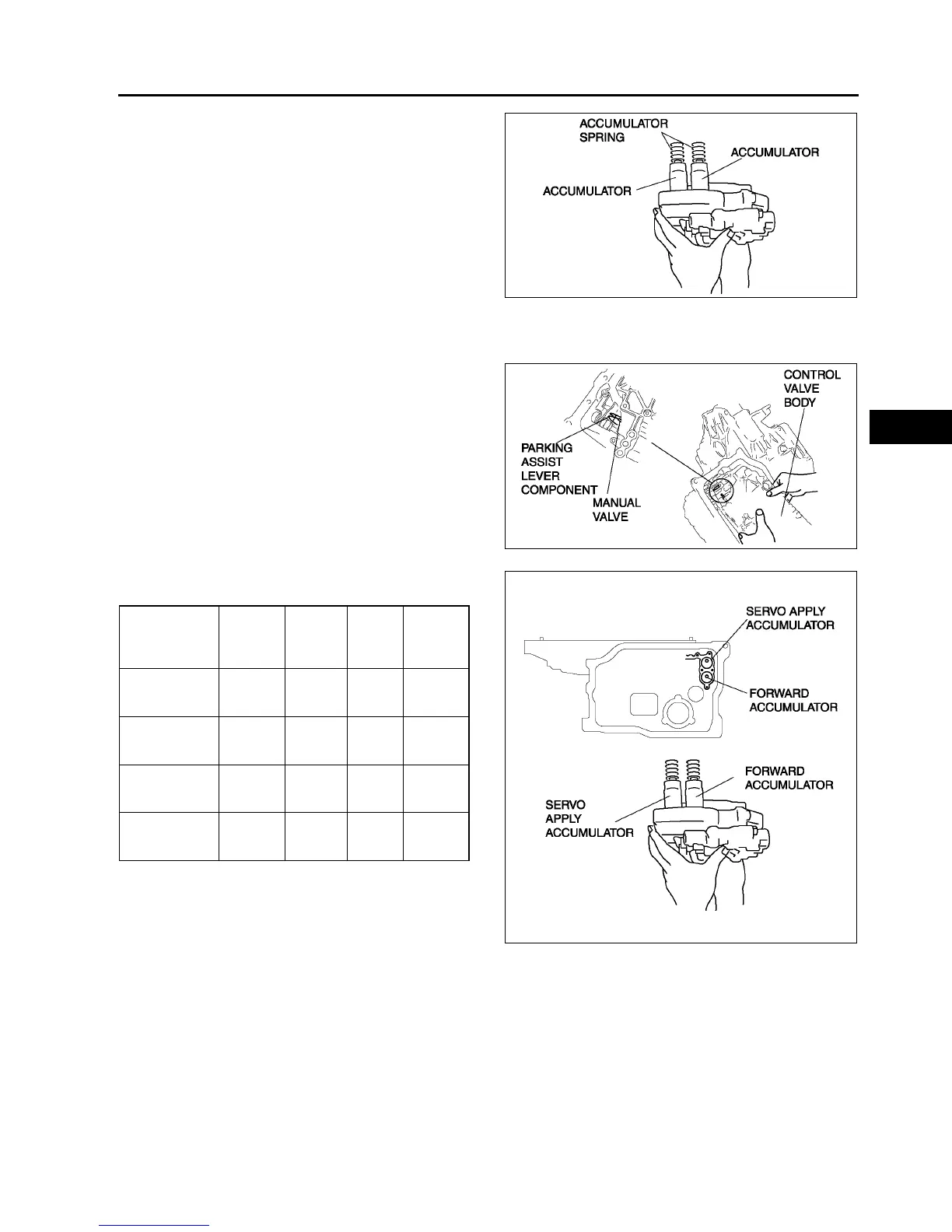

1. Install the accumulator springs and accumulators
into the transaxle case.
A6E5614W059
Spring
Outer
diameter
(mm {in})
Free
Length
(mm
{in})
No. of
coils
Wire
diameter
(mm {in})
Servo apply
accumulator
large spring
21.0
{0.827}
67.8
{2.669}
10.3
3.5
{0.138}
Servo apply
accumulator
small spring
13.0
{0.512}
67.8
{2.669}
17.1
2.2
{0.087}
Forward
accumulator
small spring
21.0
{0.827}
75.0
{2.953}
10.7
2.3
{0.091}
Forward
accumulator
large spring
15.6
{0.614}
49.0
{1.929}
7.7
2.4
{0.094}
A6E5614W060
A6E5614W061
