Mazda 6 2002 - Transaxle Range (Tr) Switch Adjustment

K18
AUTOMATIC TRANSAXLE
20. Connect the selector cable.
21. Inspect for continuity at the TR switch. (See K14
TRANSAXLE RANGE (TR) SWITCH
INSPECTION.)
• If not as specified, readjust the TR switch.
(See K18 TRANSAXLE RANGE (TR)
SWITCH ADJUSTMENT.)
22. Connect the TR switch connector.
23. Install the aircleaner component. (See F10
INTAKE-AIR SYSTEM REMOVAL/
INSTALLATION.)
24. Connect the negative battery cable.
25. Inspect operation of the TR switch. (See K14
TRANSAXLE RANGE (TR) SWITCH
INSPECTION.)
• If not as specified, readjust the TR switch. (See K18 TRANSAXLE RANGE (TR) SWITCH
ADJUSTMENT.)
End Of Sie

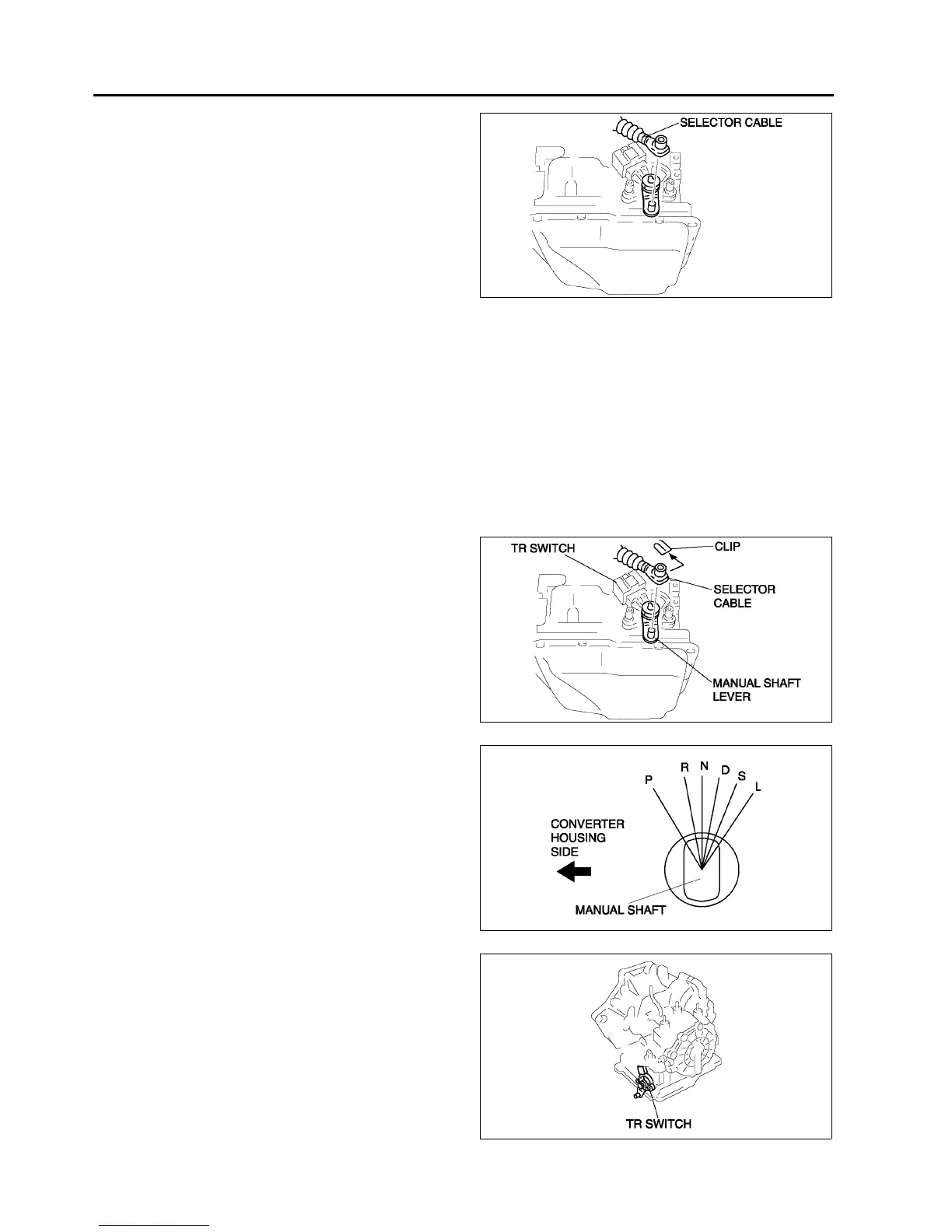

TRANSAXLE RANGE (TR) SWITCH ADJUSTMENT
A6E561419440W03
1. Disconnect the negative battery cable.
2. Remove the air cleaner component. (See F10 INTAKE-AIR SYSTEM REMOVAL/INSTALLATION.)
Caution
•
••
• Water or foreign objects entering the connector can cause a poor connection or corrosion. Be
sure not to drop water or foreign objects on the connector when disconnecting it.
3. Remove the clip and disconnect the selector
cable.
4. Rotate the manual shaft to the converter housing
side fully, then return 2 notches to set the N
position.
5. Disconnect the TR switch connector.
A6E5614W019
A6E5614W011
A6E5614W013
A6E5614W008
