Mazda 6 2002 - Variable Valve Timing; Variable Valve Timing Actuator Inspection; Variable Valve Timing Actuator Removal;Installation

B32
VARIABLE VALVE TIMING
VARIABLE VALVE TIMING ACTUATOR INSPECTION
A6E222500142W01
L3
Caution
•
••
• Variable valve timing actuator can not be disassembled it is a precision unit.
1. Disconnect the negative battery cable.
2. Remove the plug hole plate.
3. Remove the high-tension lead.
4. Remove the oil control valve connector.
5. Remove the ventilation hose.
6. Remove the cylinder head cover.

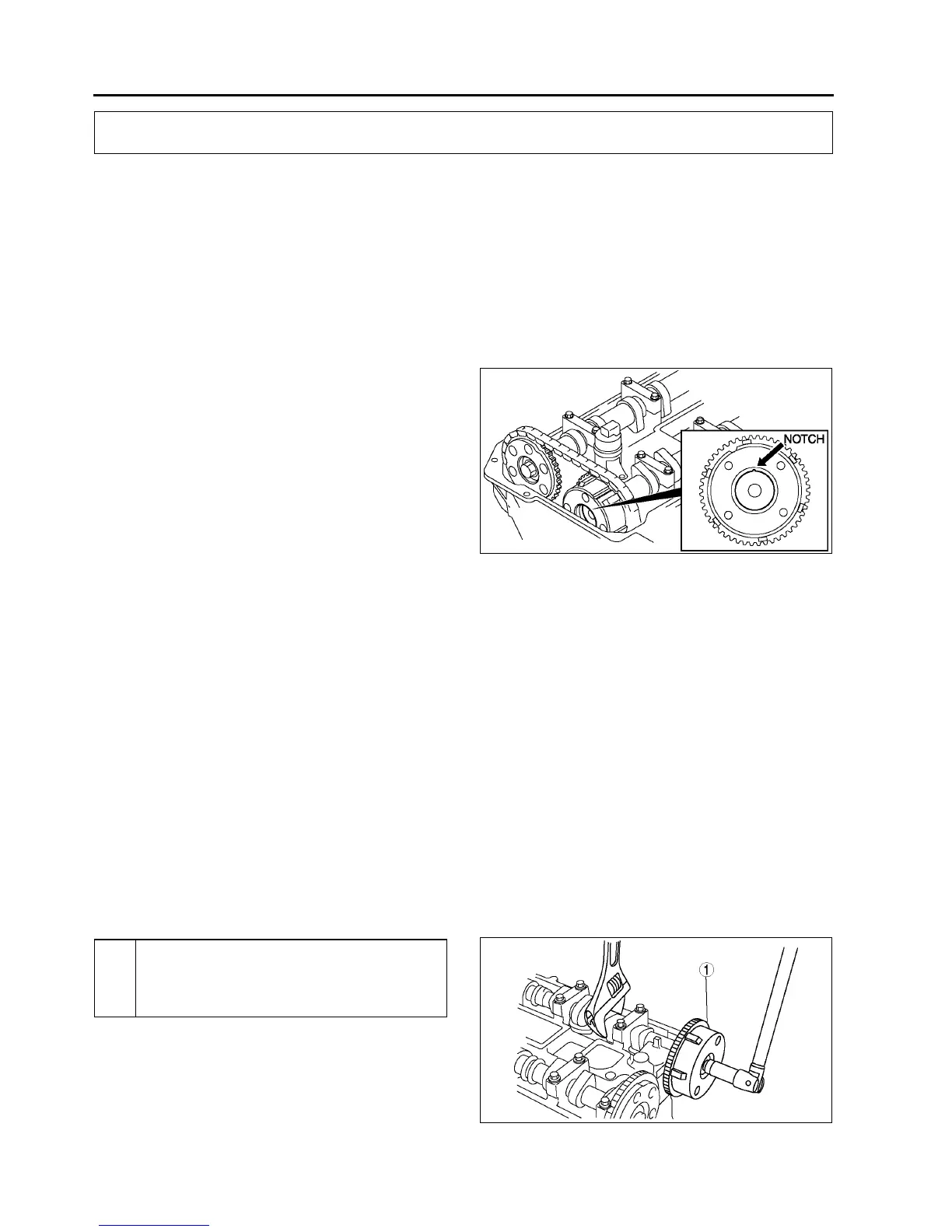

7. Confirm that notch of the rotor and bump of the
cover at the variable valve timing actuator are
aligned and fitted.
• If the notch and the bump are not aligned,
turn the crankshaft clockwise two rotations.
Verify that the bump and the notch are
aligned.
• If the bump and notch are still not aligned,
replace the variable valve timing actuator.
• If, when turning the crankshaft, there is a
hitting noise from the variable valve timing
actuator each time the cam passes the fully
lifted position, it means that the actuator is not
secured. Replace the actuator.
8. Install the cylinder head cover. (See B17 Cylinder Head Cover Installation Note.)
9. Install the ventilation hose.
10. Install the oil control valve connector.
11. Install the high-tension lead. (See G11 HIGH-TENSION LEAD REMOVAL/INSTALLATION.)
12. Install the spark plugs. (See G10 SPARK PLUG REMOVAL/INSTALLATION.)
13. Installs plug hole plate.
End Of Sie
VARIABLE VALVE TIMING ACTUATOR REMOVAL/INSTALLATION
A6E222500142W02
L3
Caution
•
••
• Variable valve timing actuator can not be disassembled because it is a precision unit.
Note
• Variable valve timing actuator camshaft sprocket is integrated with the variable valve timing actuator and
cannot be disassembled.
1. Follow the timing chain removal/installation procedure from 1 to 13 and remove the timing chain. (See B10
TIMING CHAIN REMOVAL/INSTALLATION.)
2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.
.
VARIABLE VALVE TIMING
AME2225W002
1 Variable valve timing actuator
(See B33 Variable Valve Timing Actuator Removal
Note)
(See B33 Variable Valve Timing Actuator
Installation Note)
AME2225W001
