WARNING AND INDICATOR SYSTEM
T83
T
End Of Sie

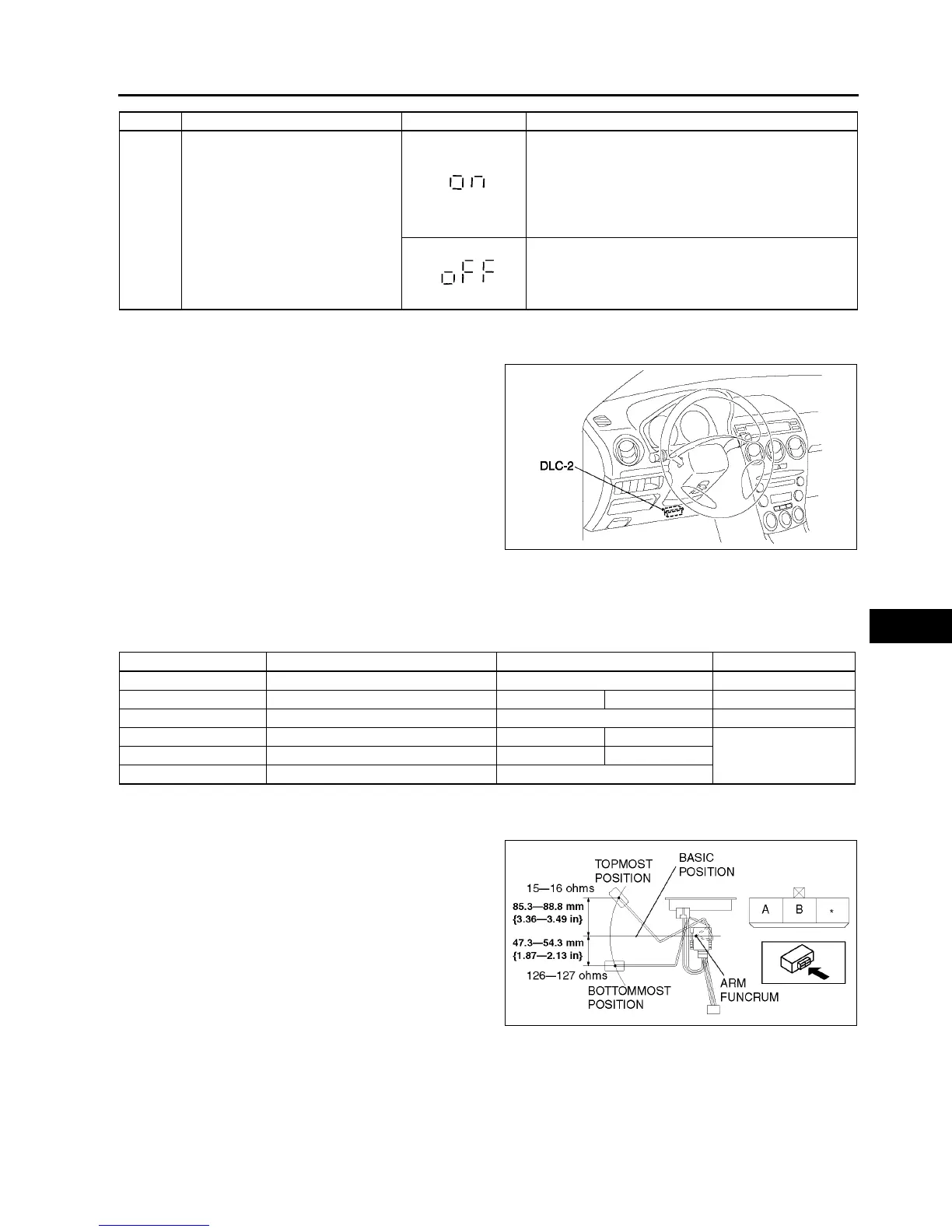

PID/DATA MONITOR AND RECORD PROCEDURE
A6E811855430W07
1. Connect SST (WDS or equivalent) to the vehicle
DLC-2 16-pin connector.
2. Access and monitor PIDs using SST (WDS or
equivalent).
Monitor Item Table
• The PID/DATA monitoring items for the instrument cluster is as shown in the table below.
: Not applicable
End Of Sie
FUEL GAUGE SENDER UNIT INSPECTION
A6E811860960W01
1. Move the float to the topmost and bottommost
positions, and verify that the resistance between
terminals A and B of the unit and the position of
the float are as indicated in the figure.
• If they are not as indicated, replace the fuel
gauge sender unit.
End Of Sie
2 Remove key from steering lock (Key
reminder switch off.)
Measure voltage at instrument cluster terminal 2B.
Is voltage 0 V?
• If as specified, replace instrument cluster.
• If not as specified, inspect following parts.
Key reminder switch
Wiring harness (Key reminder switch
instrument cluster)
Input signal to instrument cluster is okay.
STEP INSPECTION INDICATION ACTION
A6E3970W002
PID item Definition Unit/Condition Terminal
CCNT_HE Continuous codes Number of continuous codes
ECT_GAUGE Temperature gauge °C °F 2W, 2X
FUEL Fuel flow l/min 2M
ODOMETR Total distance km mile
2W, 2XSPEEDSG Speedometer km/h mile/h
RPM Tachometer rpm
A6E8118W002
