Mazda 6 2002 - CONSOLE Disassembly;Assembly

S86
DASHBOARD AND CONSOLE

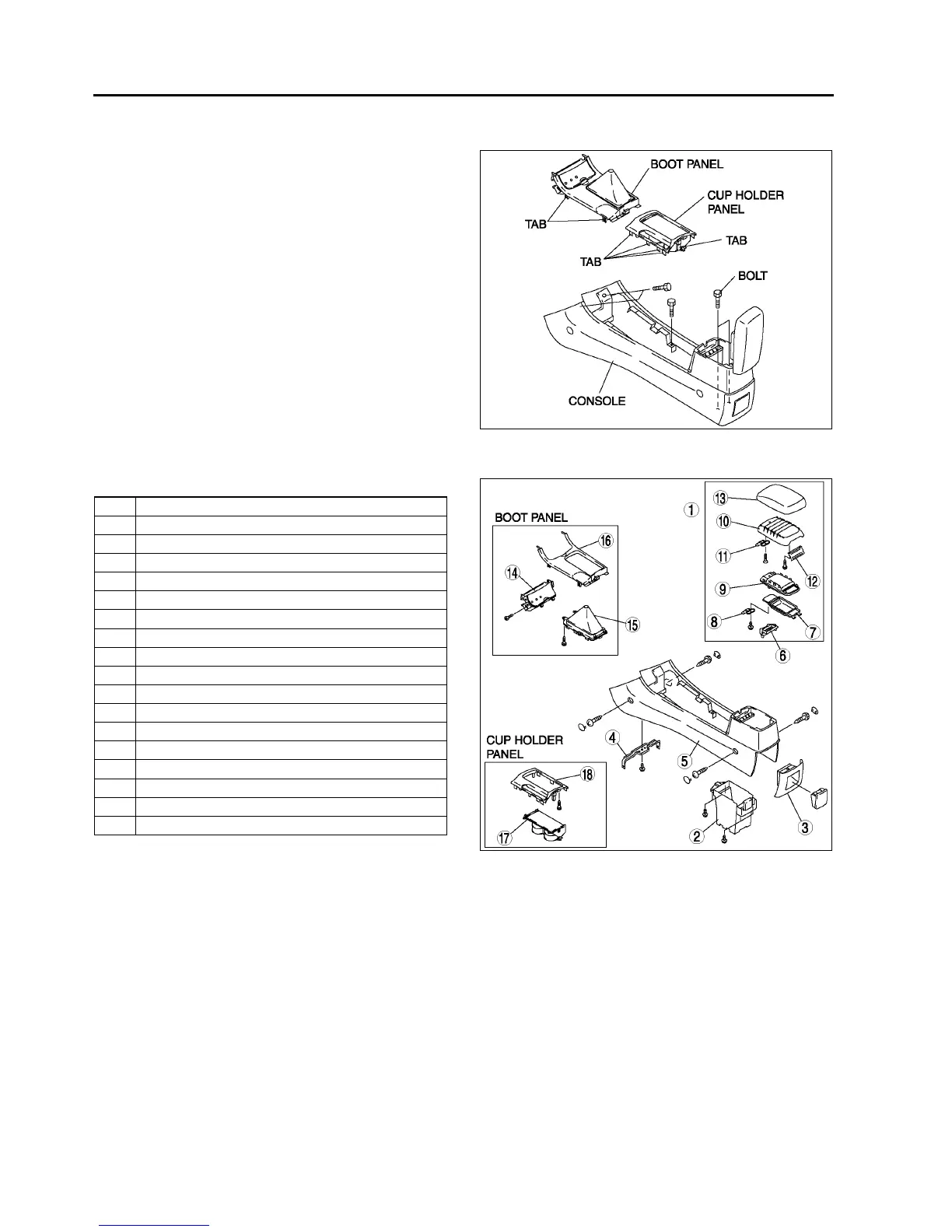

CONSOLE REMOVAL/INSTALLATION
A6E774264270W01
1. For MT vehicle, remove the shift lever knob.
2. Remove the cup holder panel using a tape-
wrapped screwdriver.
3. Remove the boot panel using a tape-wrapped
screwdriver, disconnect the cigarette lighter
connector, and remove the front ashtray
illumination.
4. Remove the bolts.
5. Install in the reverse order of removal.
End Of Sie
CONSOLE DISASSEMBLY/ASSEMBLY
A6E774264270W02
1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.
End Of Sie
A6E7742W011
1 Console lid (only large console box)
2Box
3 Rear ashtray case
4Bracket
5 Console
6 Console cover
7Box storage
8 Lock No.1
9 Inner console lid
10 Lid core
11 Lock No.2
12 Hinge
13 Outer console lid
14 Front ashtray
15 Boot
16 Boot panel
17 Cup holder
18 Cup holder panel
A6E7742W001
