AIR BAG SYSTEM
T121
T
PASSENGER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION
A6E813057050W01
Warning
•
••
• Handling the air bag module improperly can accidentally deploy the air bag module, which may
seriously injure you. Read AIR BAG SYSTEM SERVICE WARNINGS before handling the air bag
module. (See T117 SERVICE WARNINGS.)
•
••
• Due to the adoption of 2-step deployment control in both the passenger-side air bag module,
depending on the impact force, it is possible that inflator No. 2 might not deploy. In such cases,
before disposing of the air bag module, make sure to follow the inflator deployment procedures
and verify complete deployment of inflator No. 1 and 2.
1. Turn the ignition switch to LOCK position.
2. Disconnect the negative battery cable and wait for more than 1 minute.
3. Remove the glove compartment.

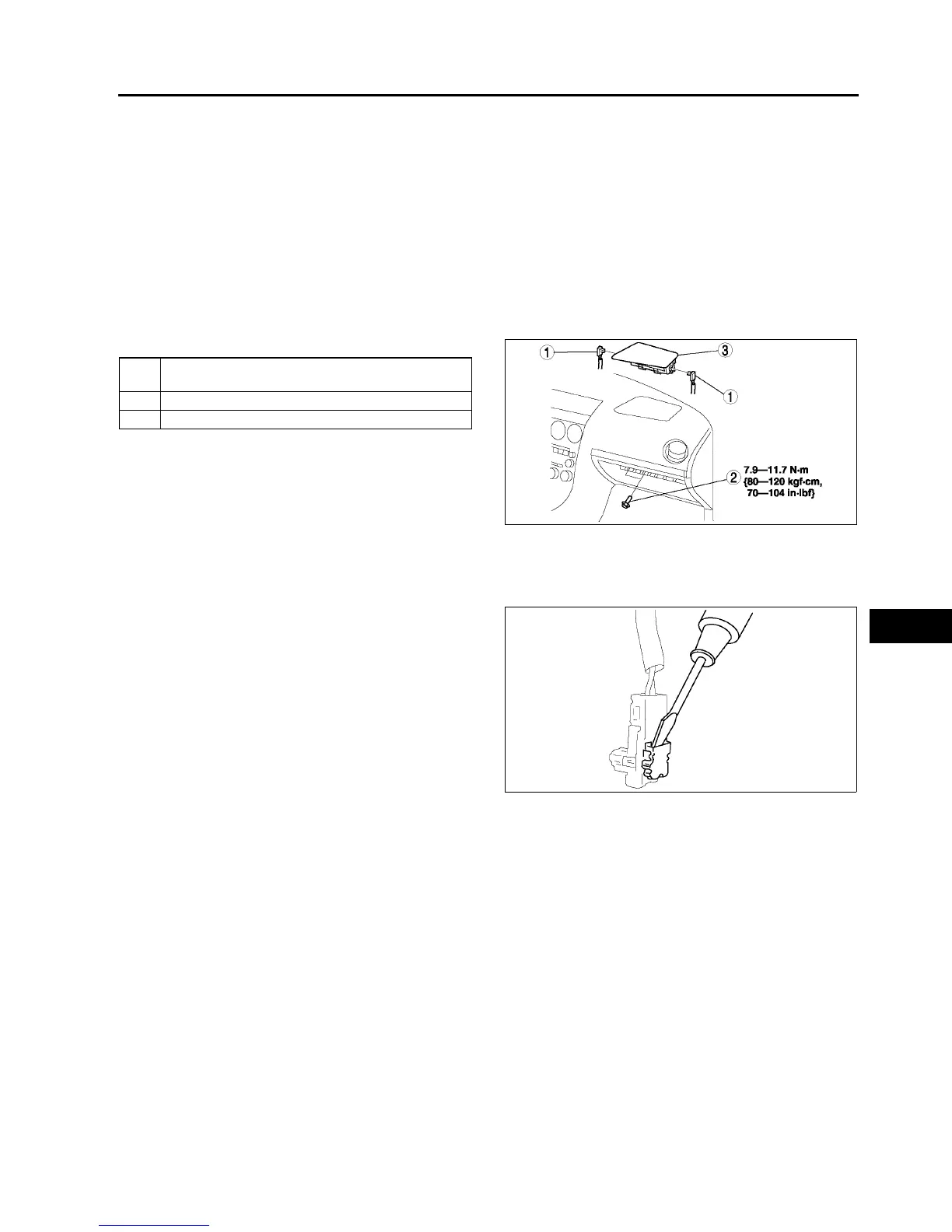

4. Remove in the order indicated in the table.
5. Install in the reverse order of removal.
6. Turn the ignition switch to ON position.
7. Verify that the air bag system warning light
illuminates for approximately 6 seconds and
then goes off.
• If the air bag system warning light does not
operate in the manner described above, there
are malfunctions in the system. Inspect the system using the on-board diagnostic.
Connector Removal Note
1. Using a flathead screwdriver, pry out the
connector's stopper plate.
2. Disconnect the connector.
End Of Sie
SIDE AIR BAG MODULE REMOVAL/INSTALLATION
A6E813000147W01
Warning
•
••
• Handling the air bag module improperly can accidentally deploy the air bag module, which may
seriously injure you. Read AIR BAG SYSTEM SERVICE WARNINGS before handling the air bag
module. (See T117 SERVICE WARNINGS.)
Warning
•
••
• If the side air bag module is installed with debris in the seat back, the foreign material may be
scattered when the side air bag module operates (deploys), causing injury. Verify that there is no
foreign material in the seat back before installing the side air bag module.
1 Connector
(See T121 Connector Removal Note)
2Bolt
3 Passenger-side air bag module
A6E8130W003
A6E8130W002
