Mazda 6 2002 - Instrument Cluster Configuration; Instrument Cluster Removal;Installation

T72
WARNING AND INDICATOR SYSTEM

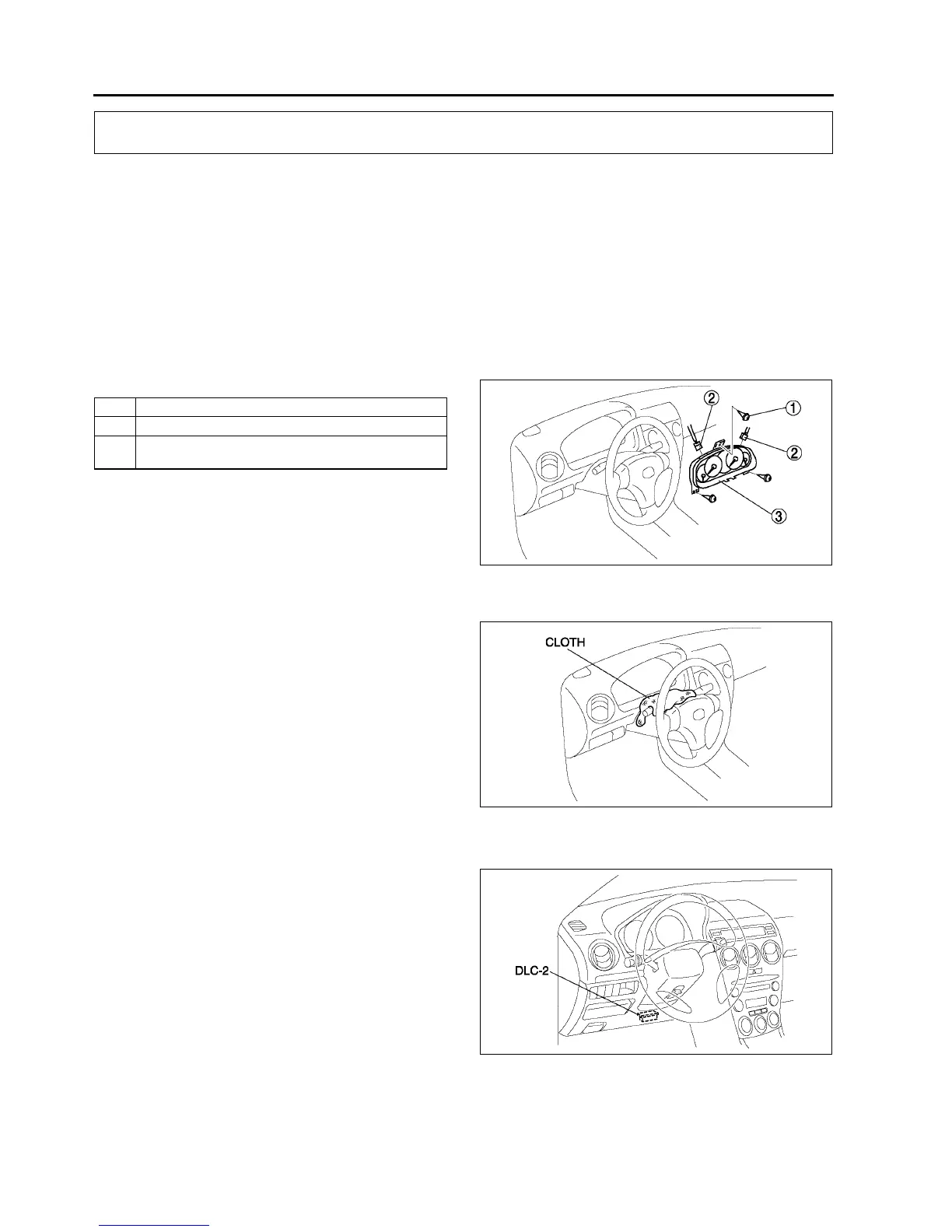

INSTRUMENT CLUSTER REMOVAL/INSTALLATION
A6E811855430W01
Caution
•
••
• When replacing the instrument cluster, the configuration procedure must be performed before
removing the instrument cluster. If the configuration procedure is not performed before removing
the instrument cluster, it is possible that the instrument cluster will not operate normally.
1. Configurate the instrument cluter (when only replacing it). (See T72 INSTRUMENT CLUSTER
CONFIGURATION.)
2. Disconnect the negative battery cable.
3. Pull down the adjusting lever of the tilt steering wheel and push the steering wheel down.
4. Pull the steering wheel toward you.
5. Remove the meter hood.
6. Remove in the order indicated in the table.
7. Install in the reverse order of removal.
Instrument Cluster Removal Note
1. When removing the instrument cluster, in order to
prevent damage to the lens, cover the steering
shaft with a cloth.
End Of Sie
INSTRUMENT CLUSTER CONFIGURATION
A6E811855430W02
1. Connect the SST (WDS or equivalent) to the
DLC-2.
2. Input vehicle information following the directions
on the screen.
3. Select Module programming.
4. Select Programmable module installation.
5. Select the following items and perform
procedures according to directions on the screen.
Items
•
••
• IC
6. Retrieve DTCs by the SST (WDS or equivalent),
then verify that there is no DTC present.
• If DTC is present, perform applicable DTC inspection.
End Of Sie
WARNING AND INDICATOR SYSTEM
1Screw
2 Connector
3 Instrument cluster
(See T72 Instrument Cluster Removal Note)
A6E8118W003
A6E8118W005
A6E3970W002
