N22
ENGINE SPEED SENSING POWER STEERING
POWER STEERING OIL PUMP REMOVAL/INSTALLATION
A6E661432650W01
1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.
.
End Of Sie
POWER STEERING OIL PUMP DISASSEMBLY/ASSEMBLY
A6E661432650W02
Note
• The following procedure is for replacement of the O-ring and oil seal only. Replace the pump component if
other repairs are necessary.
1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.

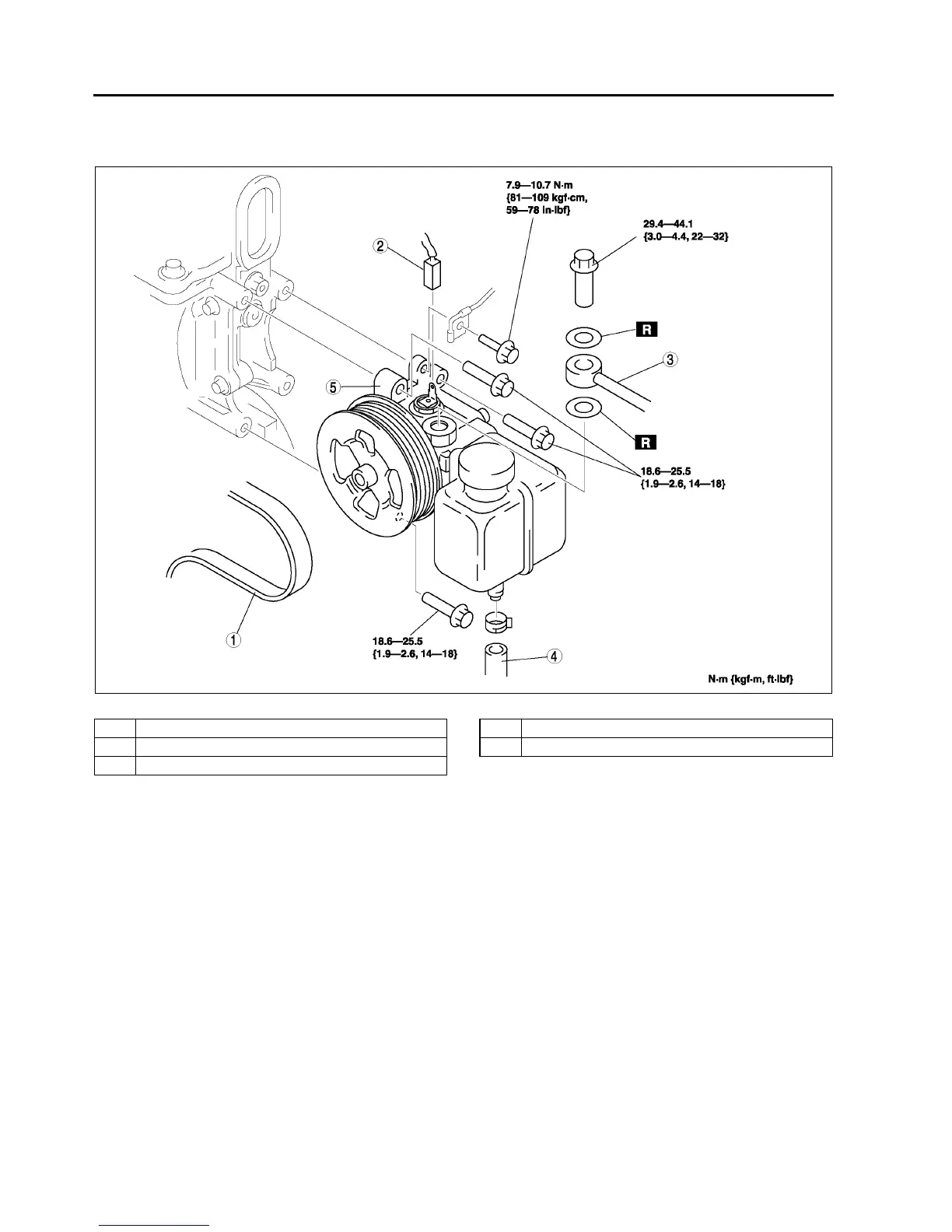

A6E0612W092
1Drive belt
2 Pressure switch connector
3 Pressure pipe
4 Suction hose
5 Power steering oil pump
To Next Page
