Mazda 6 2002 - Wheel Hub, Hub Spindle Removal;Installation

M10
REAR AXLE

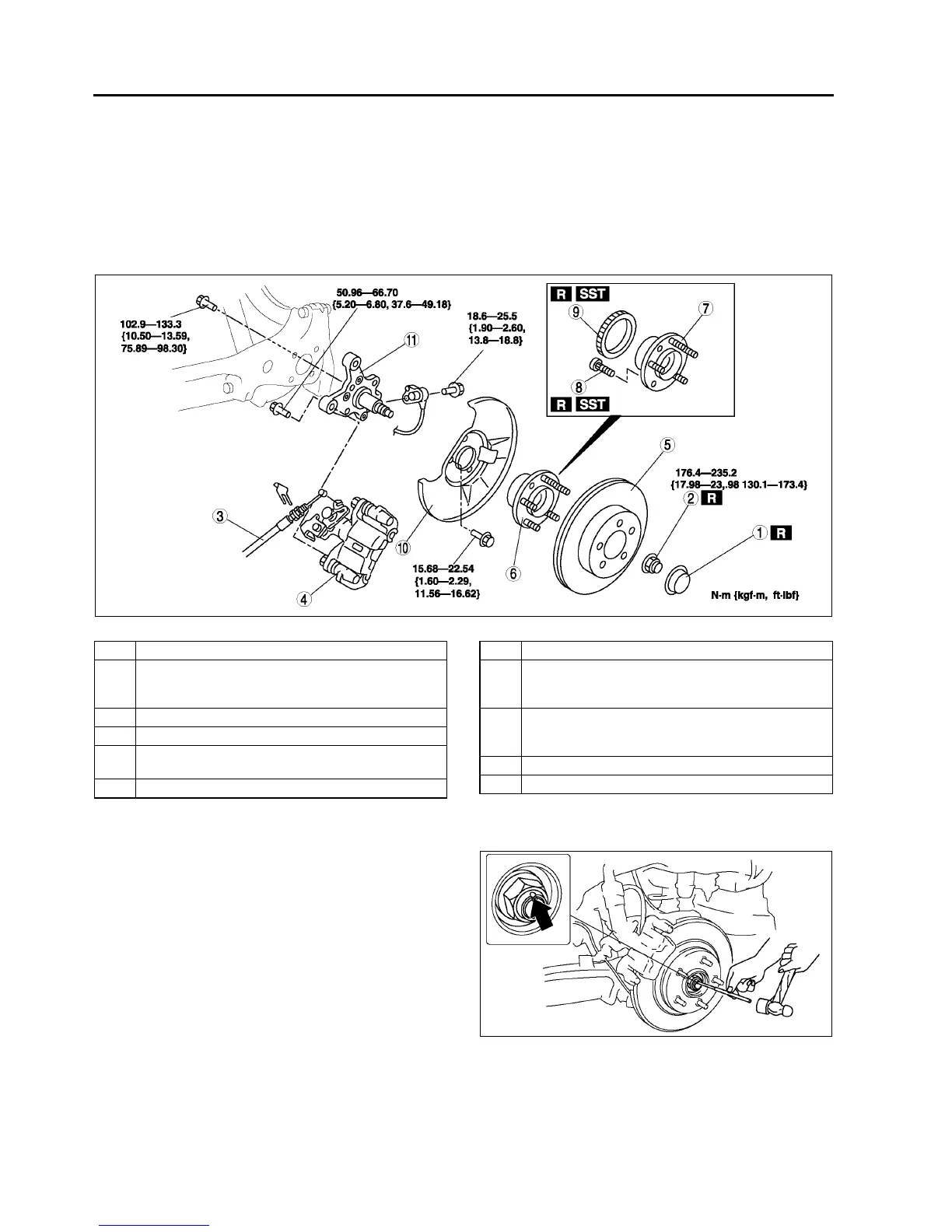

WHEEL HUB, HUB SPINDLE REMOVAL/INSTALLATION
A6E631405000W02
Caution
•
••
• Performing the following procedures without first removing the ABS wheel-speed sensor may
possibly cause an open circuit in the harness if it is pulled by mistake. Before performing the
following procedures, remove the ABS wheel-speed sensor (body side) and fix it to an appropriate
place where the sensor will not be pulled by mistake while the vehicle is being serviced.
1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.
.
Locknut Removal Note
1. Knock the crimped portion of the locknut outward
using a small cape chisel and a hammer.
2. Lock the hub by applying the brakes.
3. Remove the locknut.
A6E0312W078
1 Hub cap
2 Locknut
(See M10 Locknut Removal Note)
(See M11 Locknut Installation Note)
3 Parking brake cable
4 Brake caliper component
5Disc plate
(See P20 Disc Plate Removal Note)
6 Wheel hub component
7 Wheel hub
8 Hub bolt
(See M7 Hub Bolt Removal Note)
(See M7 Hub Bolt Installation Note)
9 ABS sensor rotor (with ABS)
(See M11 ABS Sensor Rotor Removal Note)
(See M11 ABS Sensor Rotor Installation Note)
10 Dust cover
11 Hub spindle
A6E0312W021
