CLUTCH PEDAL
H5
H
CLUTCH PEDAL ADJUSTMENT

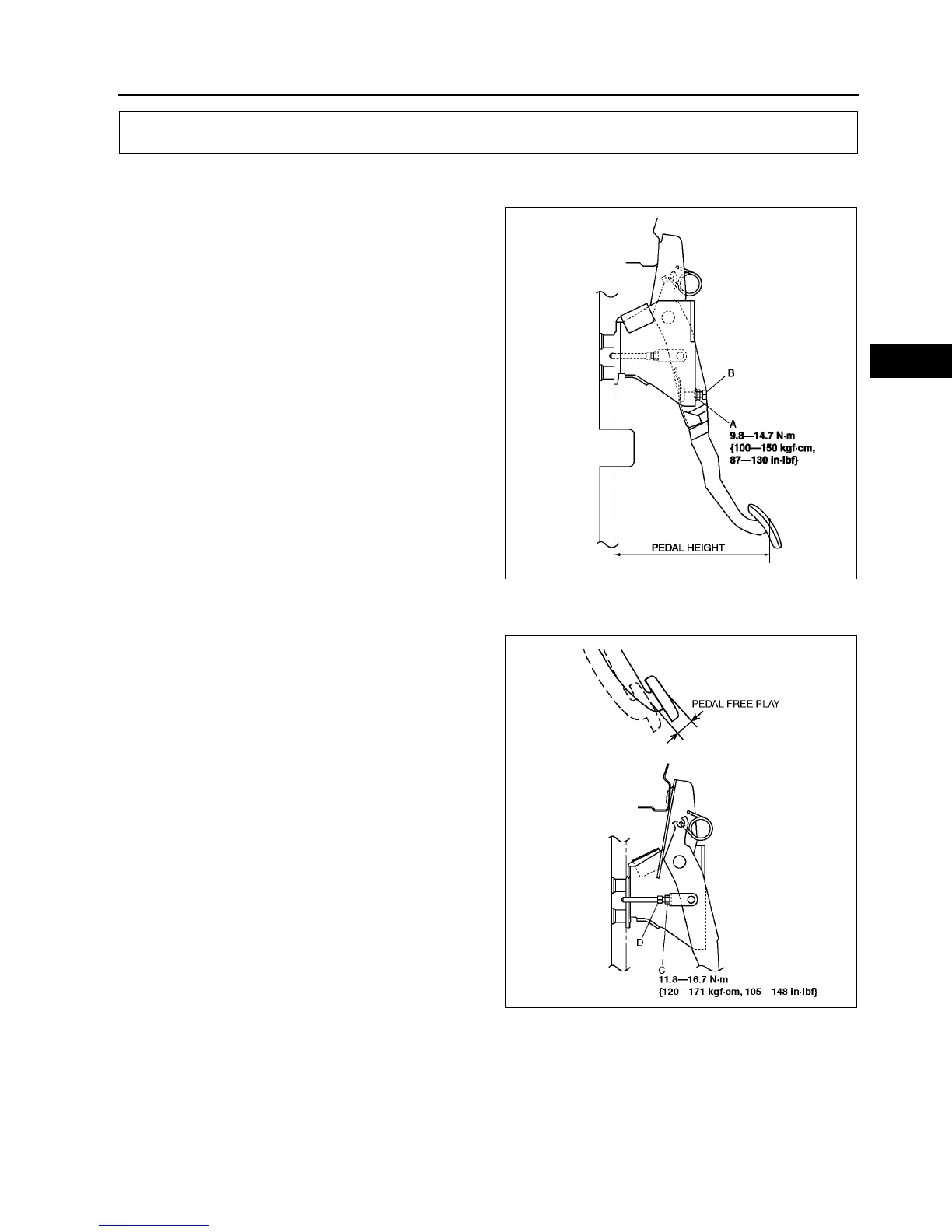

A6E491441030W01
Clutch Pedal Height
1. Measure the distance from the upper surface of
the pedal pad to the carpet.
• If not as specified, adjust the pedal height by
turning adjustment bolt B and locknut A.
Pedal height(with carpet)
L.H.D.: 210216 mm {8.278.50 in}
R.H.D.: 209215 mm {8.238.46 in}
Clutch Pedal Free Play
1. Depress the clutch pedal by hand until clutch
resistance is felt, and measure the pedal free
play.
• If not as specified, adjust the pedal free play
by loosening locknut C and turning push rod
D as necessary.
Pedal free play
1.03.0 mm {0.040.11 in}
Push rod free play at clutch pedal
0.10.5 mm {0.0040.02 in} (Reference
value)
Clutch Pedal Disengagement Point
1. Apply the parking brake and fix the front and rear of the wheels with the wheel chocks.
2. Start the engine at idle.
3. Without depressing the clutch pedal, move the
shift lever slowly to the reverse position.
4. Hold the lever when the gear noise is heard.
5. Depress the clutch pedal slowly.
CLUTCH PEDAL
A6E4914W001
A6E4914W002
