Mazda 6 2002 - Selector Lever Disassembly;Assembly

AUTOMATIC TRANSAXLE SHIFT MECHANISM
K51
K
SELECTOR LEVER DISASSEMBLY/ASSEMBLY
A6E561646102W04

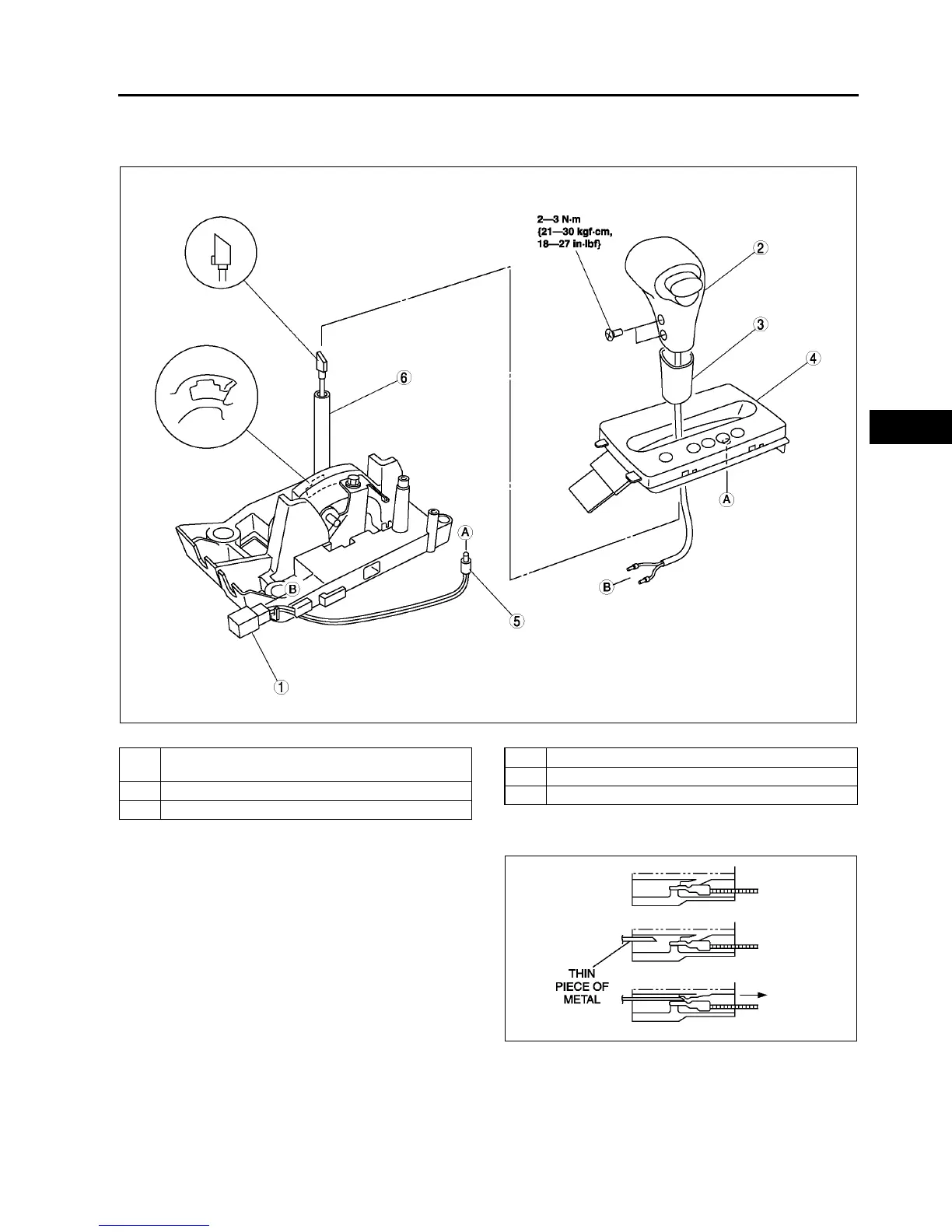

1. Disassemble in the order shown in the figure.
2. Assemble in the reverse order of disassembly.
.
Connector Disassembly Note
1. Insert a thin piece of metal from the terminal side
of the connector, and press down the terminal
locking tab.
2. Pull the terminal out of the connector.
End Of Sie
A6E5616W015
1 Connector
(See K51 Connector Disassembly Note.)
2 Selector lever knob component
3 Cover
4 Indicator panel
5 Selector illumination light
6Selector lever
A6E5616W016
