Mazda 6 2002 - Page 424

K50
AUTOMATIC TRANSAXLE SHIFT MECHANISM

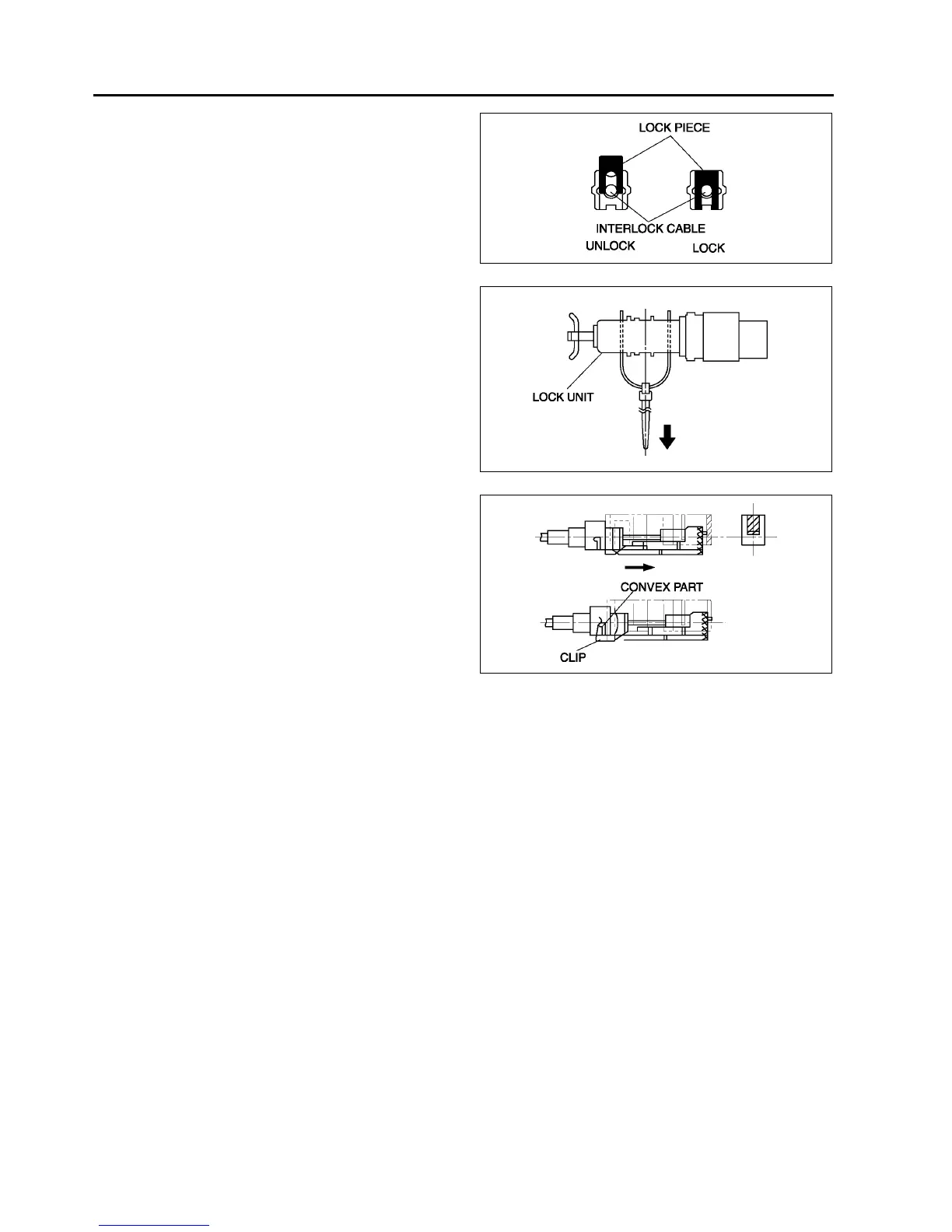

6. Press the interlock cable lock piece in unitl it is
locked.
Note
• Step 7 is for the interlock cable replacement
only.
7. Remove the lock unit pin as shown in the figure.
8. Turn the ignition key in ACC position.
9. Install the interlock cable to the key cylinder.
10. Slide the outer casing to the key cylinder, and
insert the clip over the convex part of the outer
casing.
End Of Sie
A6E5616W012
A6E5616W013
A6E5616W014
