AUTOMATIC TRANSAXLE SHIFT MECHANISM
K49
K
Caution
•
••
• Bending the selector cable in the manner
shown in the figure will damage the cable
and it may become loose when shifted.
When installing the selector cable, hold it
straight.
Note

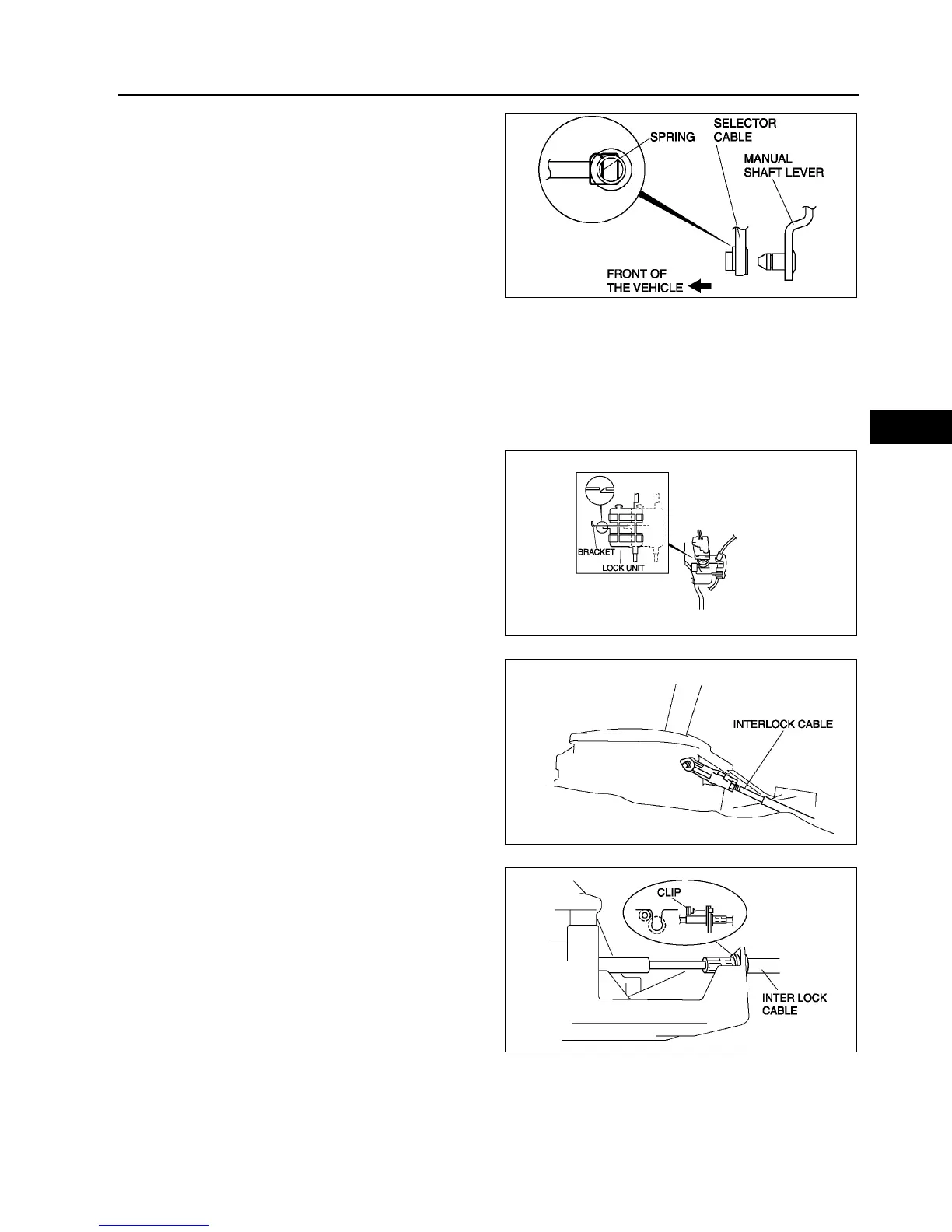

• Install the selector lever to the manual shaft
lever with the spring side of the selector
cable end facing the front of the vehicle.
6. Install the selector lever to the manual shaft lever
in such a way that the selector cable does not bear a load.
7. Confirm that the end of the manual shift lever sticks out of the end of the selector cable.
8. Install the selector cable to the selector cable securely bracket.
Interlock Cable Installation Note
1. Verify that the shift the selector lever in P position and ignition key is in LOCK position.
2. Press the lock unit onto the brake pedal stopper bracket.
3. From this position, slide the lock unit to fix the
lock unit hook into the bracket hole securely as
shown in the figure.
Caution
•
••
• Allowing the interlock cable to be bent or
twisted during installation can affect the
lock unit operation.
4. Install the interlock cable end onto the cam pin on
the selector lever.
5. Fit the interlock cable in the Ugroove in the
selector lever base plate, and install the clip.
Caution
•
••
• Applying a load to the interlock cable
while pressing the lock piece in can
affect the lock unit operation.
