Mazda 6 2002 - Audio Unit Disassembly;Assembly; Center Panel Module Disassembly;Assembly

AUDIO AND NAVIGATION SYSTEM
T97
T

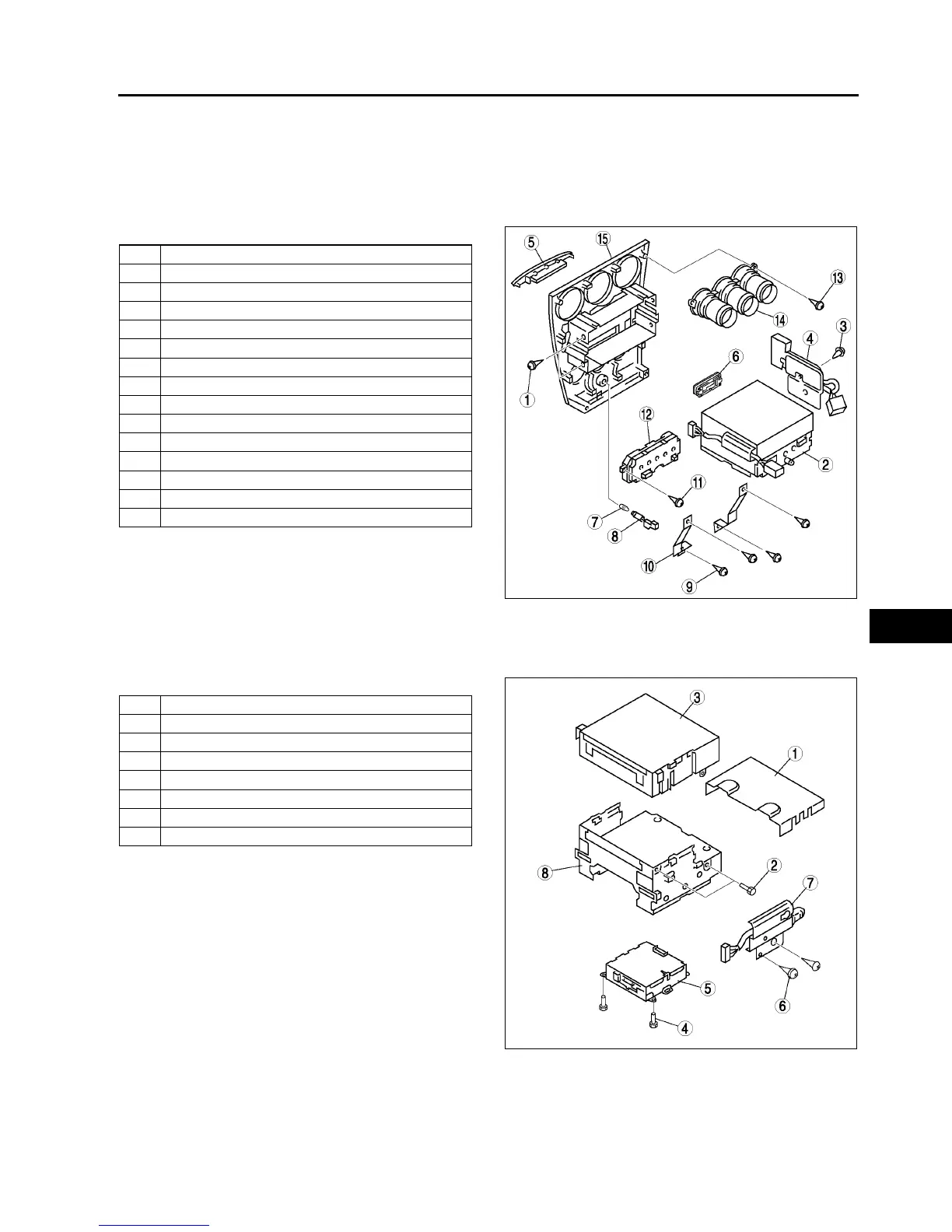

CENTER PANEL MODULE DISASSEMBLY/ASSEMBLY
A6E812466900W03
Caution
•
••
• Before disassembling the center panel module, spread a cloth on the floor to put the
disassembled parts on. This protects the surface of the panel from scratches or dirt.
1. Remove the center panel module. (See T96 CENTER PANEL MODULE REMOVAL/INSTALLATION.)
2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.
End Of Sie
AUDIO UNIT DISASSEMBLY/ASSEMBLY
A6E812466900W04
1. Remove the audio unit. (See T97 CENTER PANEL MODULE DISASSEMBLY/ASSEMBLY.)
2. Disassemble in the order indicated in the table.
3. Assemble in the reverse order of disassembly.
End Of Sie
1Screw
2 Audio unit
3Screw
4 Circuit board (manual A/C only)
5 Cover (upper module)
6 Cover (lower module)
7 Passenger-side air bag cut indicator light bulb
8Socket
9Screw
10 Bracket
11 Screw
12 Climate control unit (auto A/C only)
13 Screw
14 Ventilator grille
15 Center panel
A6E8124W012
1 Cover (without upper module)
2Screw
3 Upper module
4Screw
5 Lower module
6Screw
7 Wiring harness
8 Base unit
A6E8124W013
