Mazda 6 2002 - Sunroof Motor Removal; Sunroof Motor Installation; Sunroof Motor Inspection

SLIDING SUNROOF
S79
S

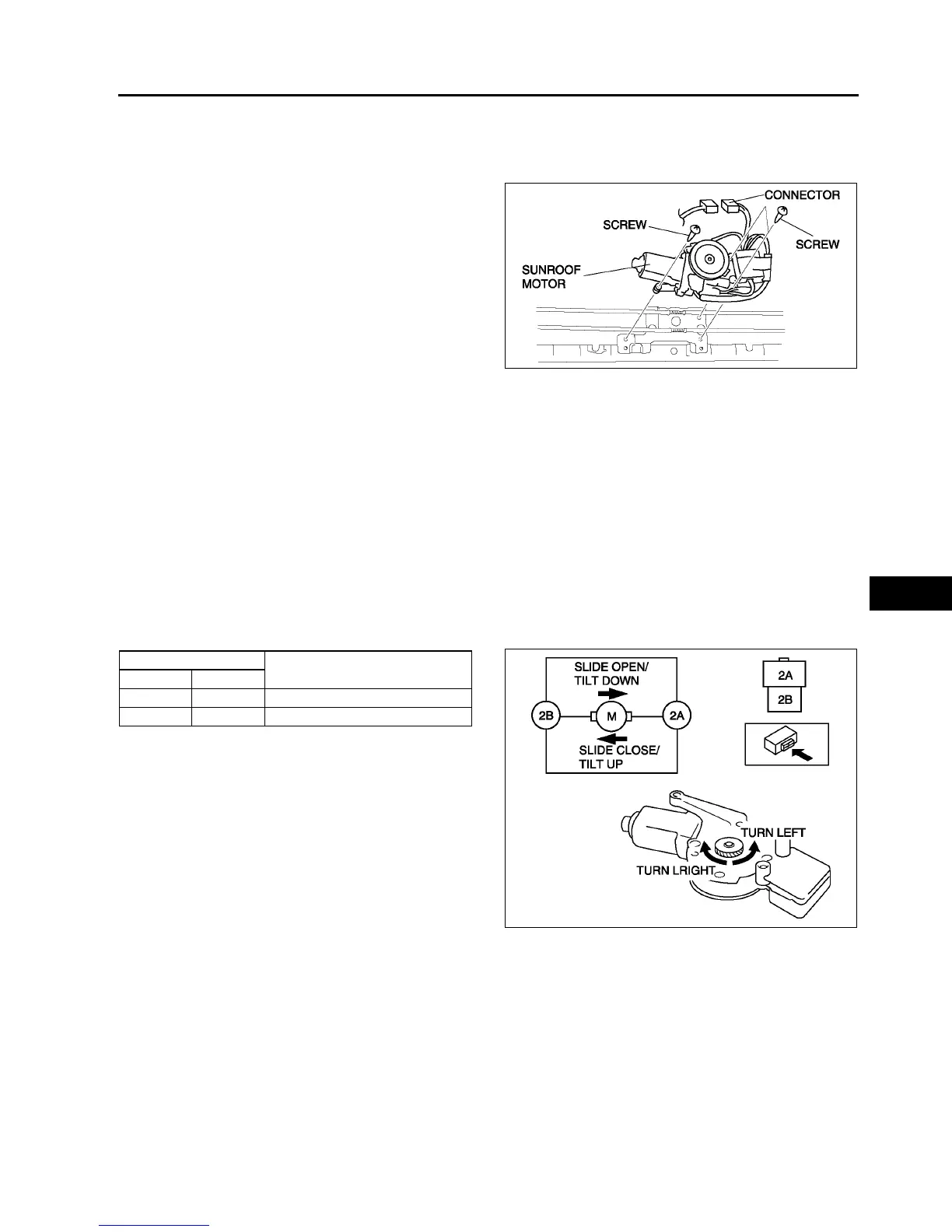

SUNROOF MOTOR REMOVAL
A6E774069870W01
1. Disconnect the negative battery cable.
2. Remove the headliner.
3. Disconnect the connector.
4. Remove the screws, and then remove the sunroof
motor.
End Of Sie
SUNROOF MOTOR INSTALLATION
A6E774069870W02
1. Connect the sunroof motor connector.
2. Connect the sunroof switch connector.
3. Connect the negative battery cable.
4. Turn the ignition switch to ON position.
5. Press the CLOSE side of the slide switch until the sunroof motor stops.
6. Disconnect the sunroof switch connector.
7. Install the screws, and then install the sunroof motor.
8. Install the headliner.
End Of Sie
SUNROOF MOTOR INSPECTION
A6E774069870W03
Motor
1. Remove the sunroof motor.
2. Apply battery positive voltage to the sunroof motor terminals and inspect the operation of the sunroof motor.
• If not as specified, replace the sunroof motor.
A6E7740W002
Connection
Motor operation
2A 2B
B+ GND Turn left (Slide close/Tilt up)
GND B+ Turn right (Slide open/Tilt down)
A6E7740W016
