Mazda 6 2002 - Clutch Master Cylinder Disassembly;Assembly

H8
CLUTCH MASTER CYLINDER

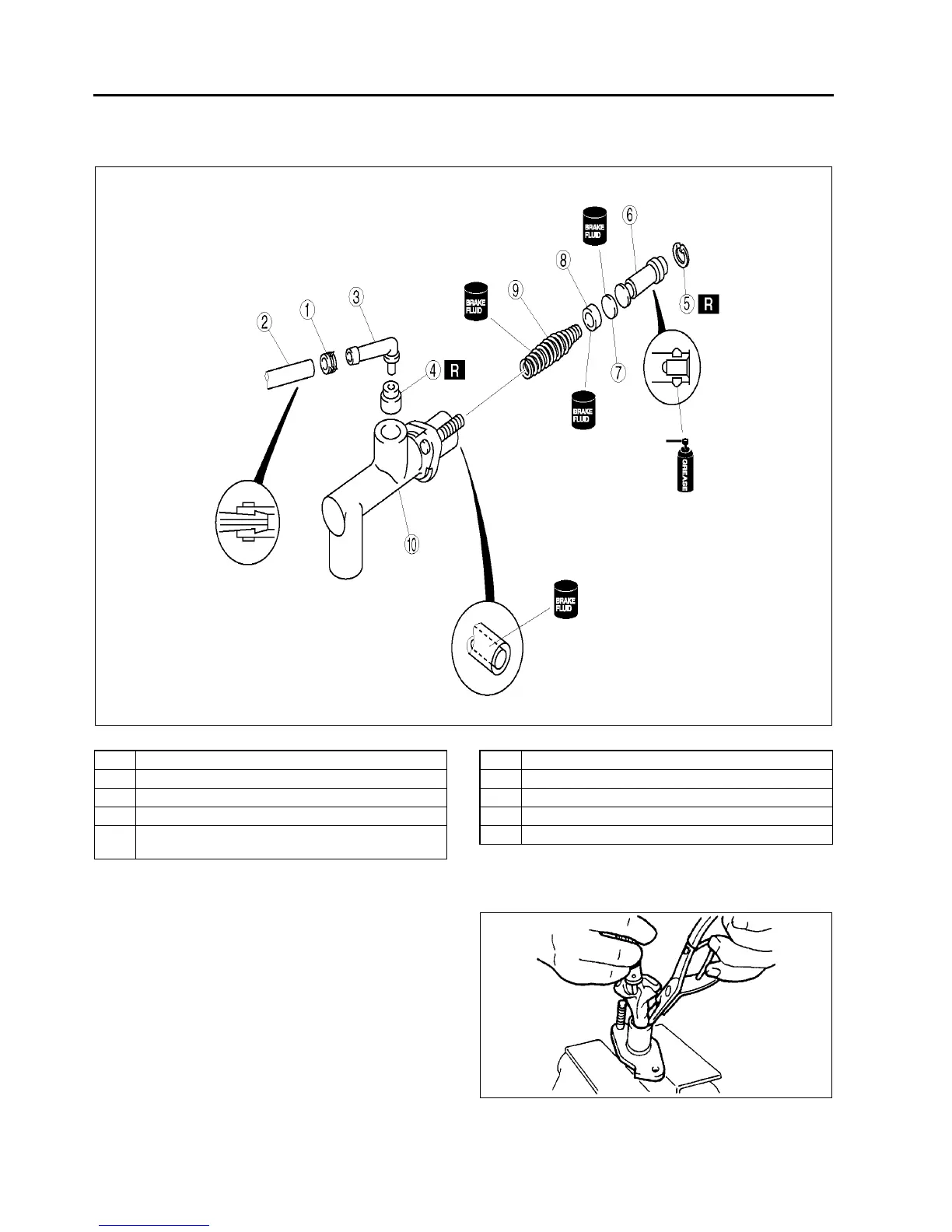

CLUTCH MASTER CYLINDER DISASSEMBLY/ASSEMBLY
A6E491641990W02
1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.
.
Snap Ring Disassembly/Assembly Note
1. Hold the piston down using a cloth-wrapped pin
punch.
• If disassembling, remove the snap ring; if
assembling, install it.
End Of Sie
A6E4916W002
1 Clip
2Hose
3Joint
4 Bushing
5 Snap ring
(See H8 Snap Ring Disassembly/Assembly Note)
6 Piston and secondary cap component
7Spacer
8 Primary cap
9 Return spring
10 Clutch master cylinder body
XME4916W003
