Mazda 6 2002 - Rear Lower Arm

R30
REAR SUSPENSION
Bound Stopper (Body Side) Removal/Installation Note
1. Remove or/and install the bound stopper (body side) using the extension bar.
Rear Coil Spring Installation Note

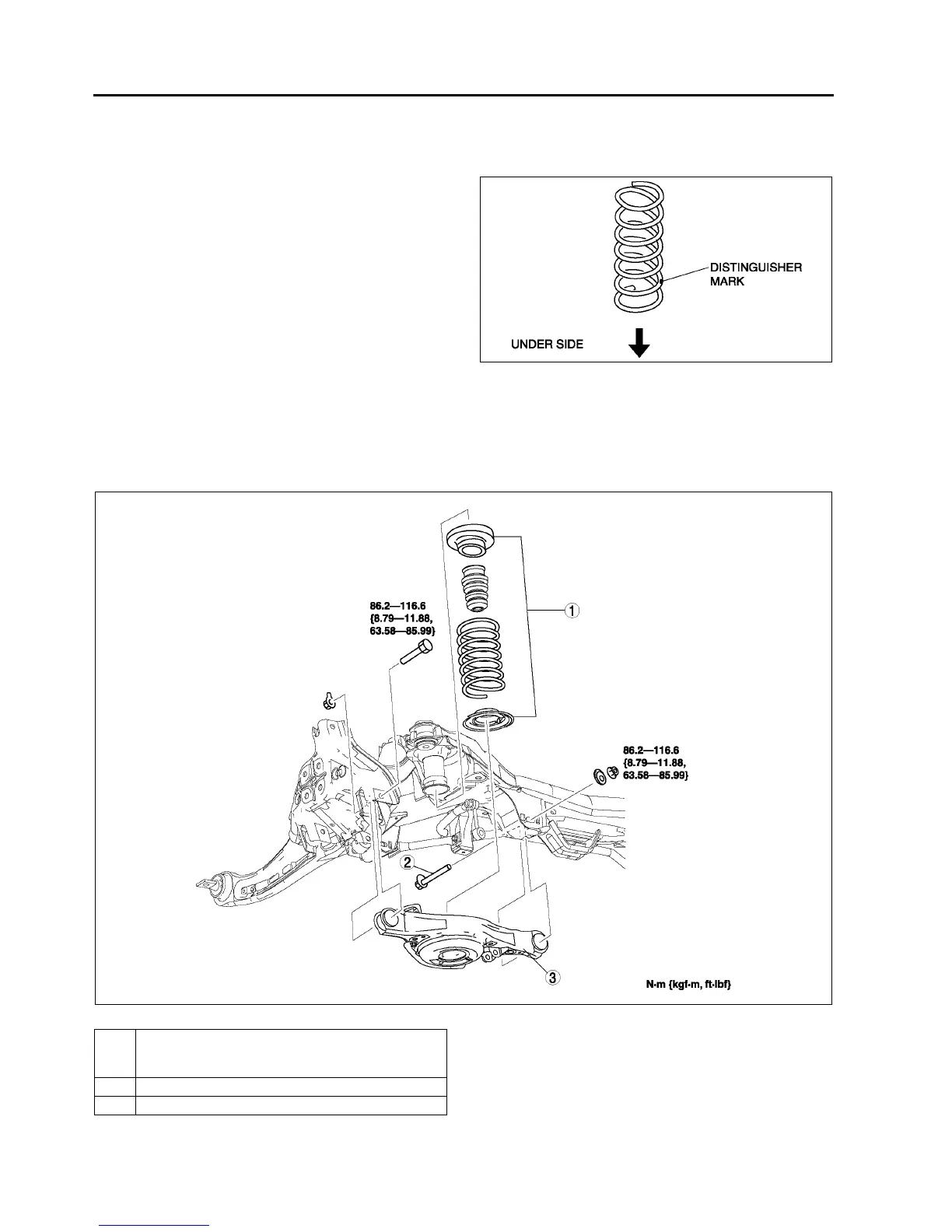

1. Install the coil spring so that the distinguisher
mark is located on under side.
2. Position the jack under the lower arm and jack up
slowly.
Warning
•
••
• Installing the coil spring is dangerous.
The coil spring could fly off, and cause
serious injure of death.
3. Install the lower arm (outer side) bolt.
End Of Sie
REAR LOWER ARM REMOVAL/INSTALLATION
A6E741628310W01
1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.
3. Inspect the rear wheel alignment.
(See R6 REAR WHEEL ALIGNMENT.)
End Of Sie
A6E7416W015
A6E7416W008
1 Rear coil spring component
(See R29 REAR COIL SPRING REMOVAL/
INSTALLATION)
2 Bolt (rear lower arm inner side)
3 Rear lower arm
