SLIDING SUNROOF
S77
S
6. Remove the bolt B and nuts, and then remove the
sunroof unit.
7. Install in the reverse order of removal.
8. Adjust the glass panel. (See S75 GLASS
PANEL ADJUSTMENT.)
End Of Sie
SUNROOF UNIT DISASSEMBLY/ASSEMBLY
A6E774069850W02
1. Disconnect the negative battery cable.
2. Remove the deflector.
3. Remove the glass panel.

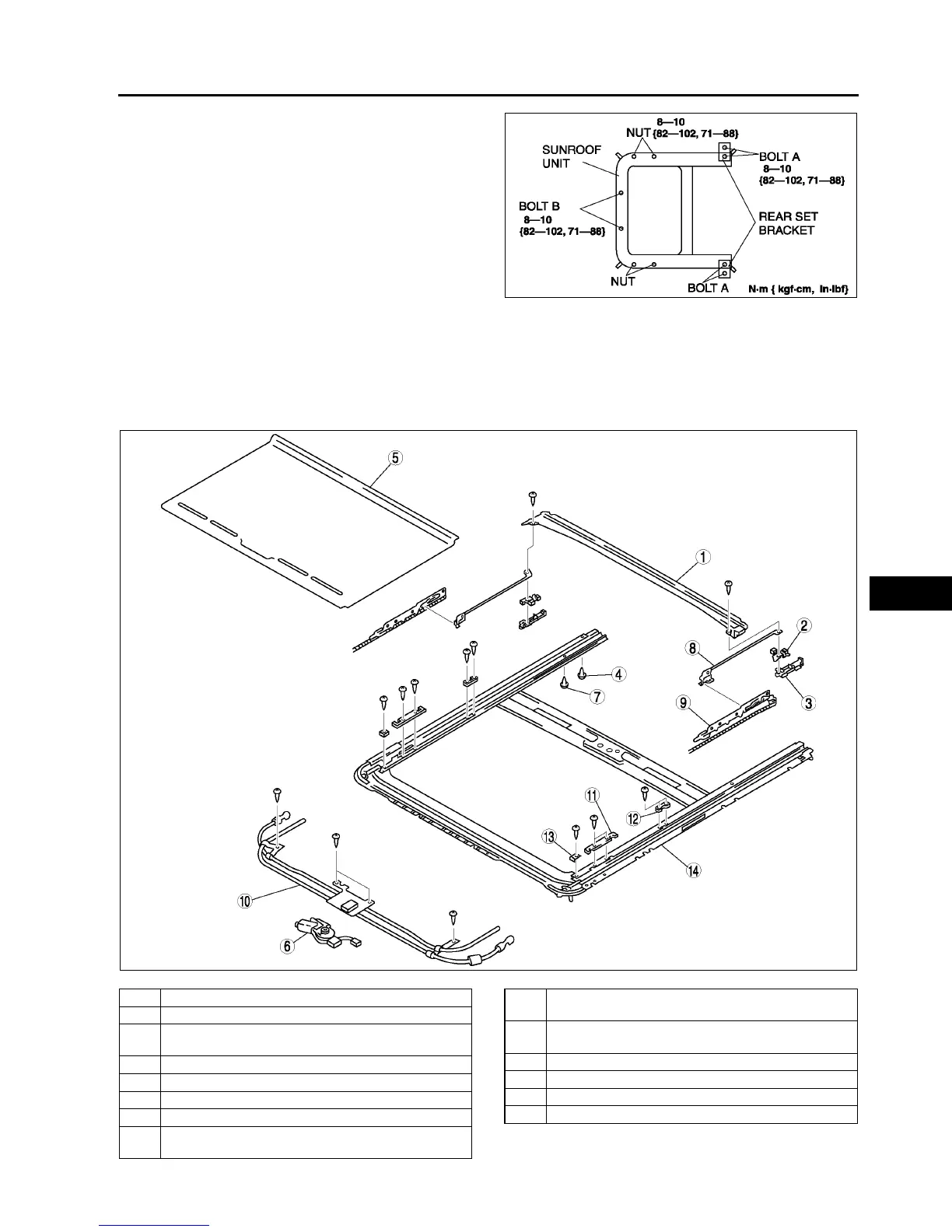

4. Disassemble in the order indicated in the table.
5. Assemble in the reverse order of disassembly.
.
A6E7740W005
A6E7740W001
1 Drip rail
2 Position plate
3 Slider
(See S78 Slider Disassembly Note)
4 Rear stopper A
5 Sunshade
6 Sunroof motor
7 Rear stopper B
8 Decoration link
(See S78 Decoration Link Assembly Note)
9 Guide
(See S78 Guide Disassembly Note)
10 Drive unit
(See S78 Guide Assembly Note)
11 Set plate A
12 Set plate B
13 Front stopper
14 Frame
