Mazda 6 2002 - Drive Belt; Drive Belt Inspection; Drive Belt Replacement

DRIVE BELT
B3
B
End Of Si e
DRIVE BELT INSPECTION
A6E221015800W01
Note
• Front and water pump drive belt deflection/tension inspection is not necessary because of the use of the
front drive belt auto tensioner.
Front Drive Belt

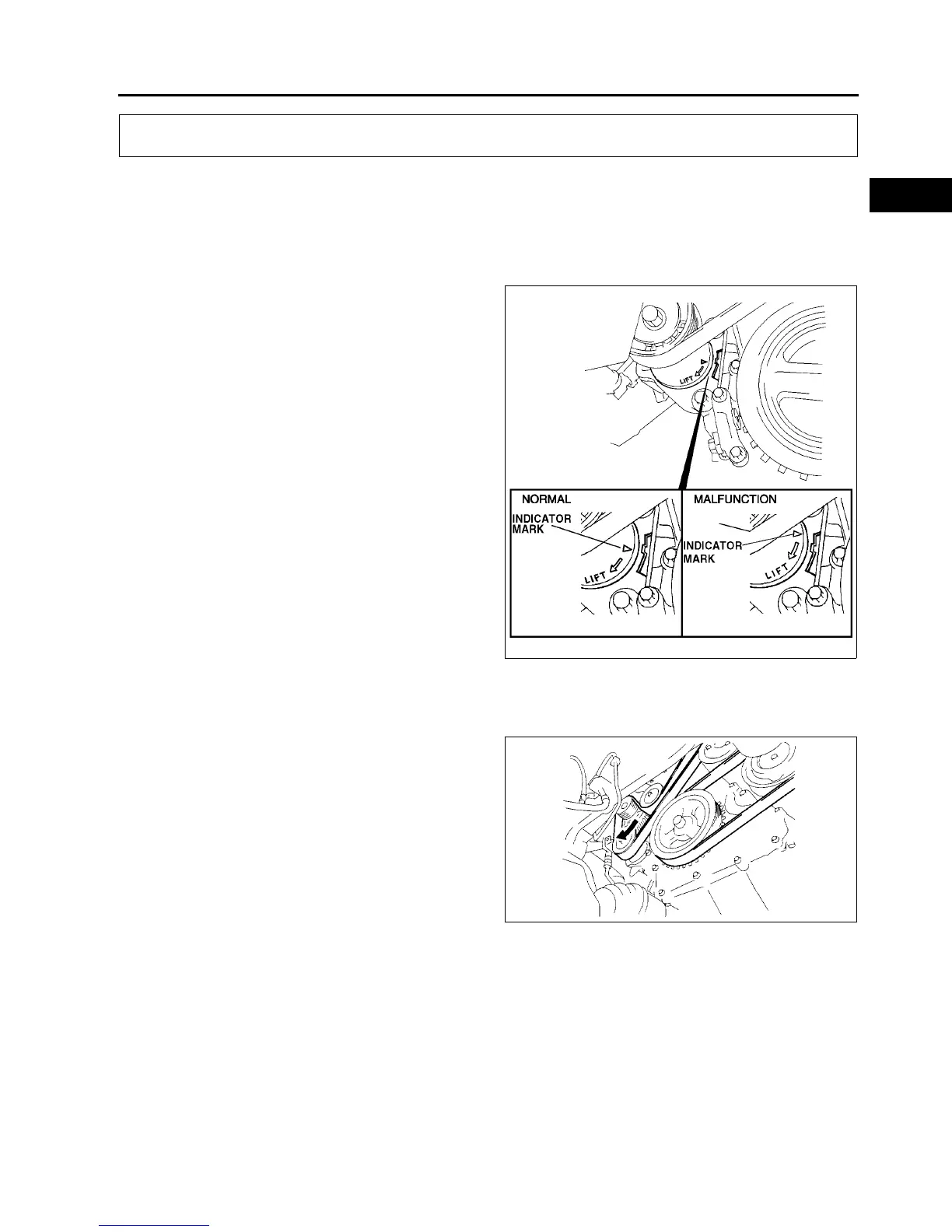

1. Verify that the drive belt auto tensioner indicator
mark does not exceeds the limit.
• If it exceeds the limit, replace the drive belt.
(SeeB3 DRIVE BELT REPLACEMENT.)
End Of Sie
DRIVE BELT REPLACEMENT
A6E221015800W03
1. Remove the splash shield (RH).
2. Turn the center of the tensioner pulley clockwise
to release tension to the drive belt.
3. Remove the drive belt.
4. Reinstall the drive belt or install a new drive belt.
5. Verify that the drive belt auto tensioner indicator
mark does not exceeds the limit. (See B3 DRIVE
BELT INSPECTION.)
• If it exceeds the limit, replace the drive belt.
6. Install the splash shield (RH).
End Of Sie
DRIVE BELT
AME2210W001
AME2210W002
