AUTOMATIC TRANSAXLE SHIFT MECHANISM
K45
K
SHIFT-LOCK INSPECTION
A6E561630000W01
1. Turn the ignition switch to ON position.
2. Verify that the selector lever is in P position.
3. Depress the brake pedal and verify that the selector lever can be shifted from P position.
• If a malfunction is found, inspect the interlock cable.
(See K45 INTERLOCK CABLE INSPECTION.)
End Of Sie
KEY INTERLOCK INSPECTION
A6E561609000W01
1. Verify that the ignition key cannot be pulled out except in P position.
• If a malfunction is found, inspect the interlock cable. (See K45 INTERLOCK CABLE INSPECTION.)
End Of Sie
INTERLOCK CABLE INSPECTION
A6E561609000W02

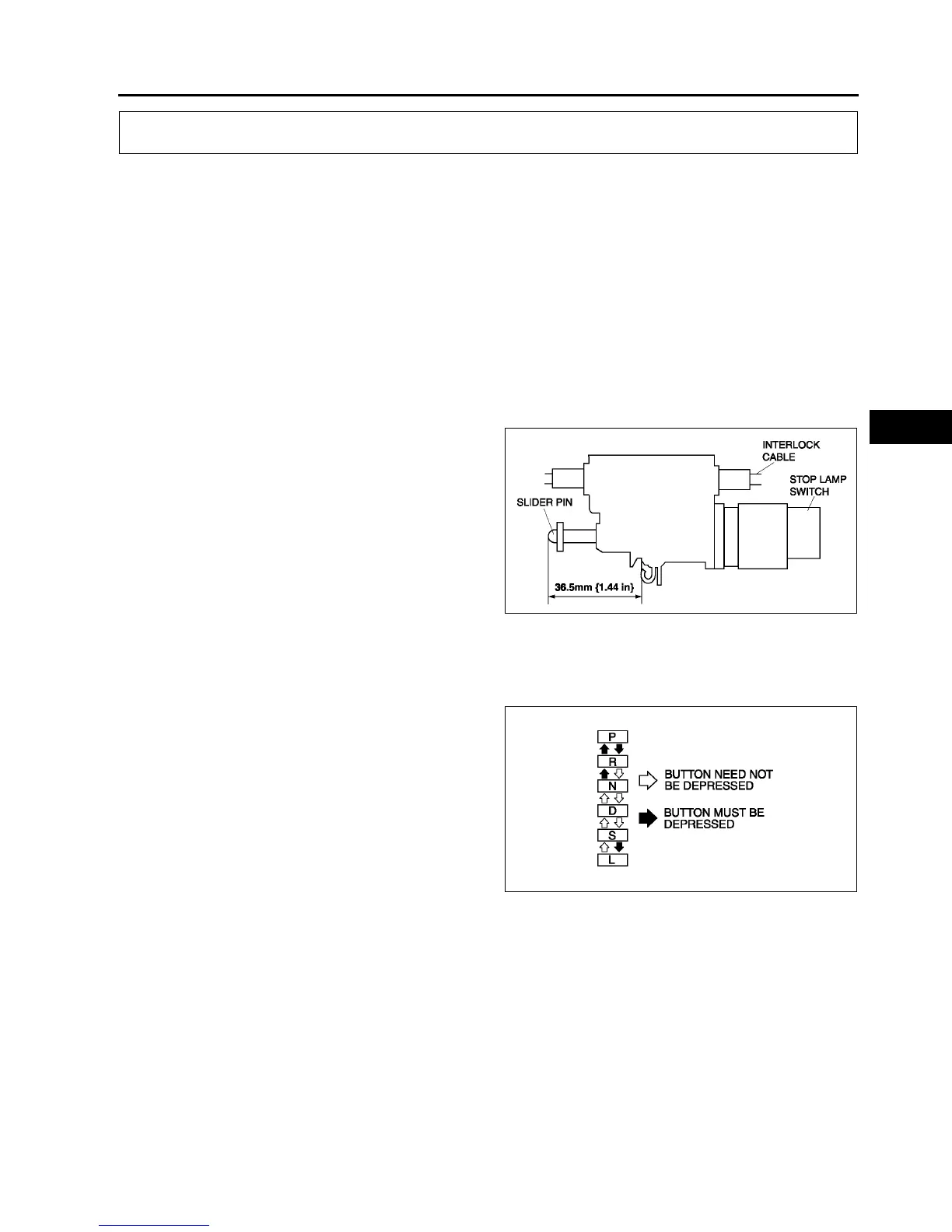

1. Remove the interlock cable.
2. With the slider pin as shown in the figure, verify that the interlock cable moves freely.
• If a malfunction is found, replace the interlock cable.
End Of Sie
SELECTOR LEVER INSPECTION
A6E561646102W01
1. Turn the ignition switch to ON (engine OFF).
2. With the brake pedal depressed, verify that there is a "click" at each range when shifted.
3. Verify that the selector lever can be shifted.
4. Verify that there is a "click" at each position when
shifted from P position to L range.
5. Verify that the positions of the selector lever and
the indicator are aligned.
• If not as specified, adjust the TR switch.(See
K18 TRANSAXLE RANGE (TR) SWITCH
ADJUSTMENT.)
6. Verify that the vehicle operates in each selected
range.
End Of Sie
AUTOMATIC TRANSAXLE SHIFT MECHANISM
A6E5616W001
A6E5616W002
