MANUAL TRANSAXLE
J5
J
VEHICLE SPEEDOMETER SENSOR INSPECTION
A6E511217400W02
Without ABS
1. Remove the vehicle speedometer sensor.

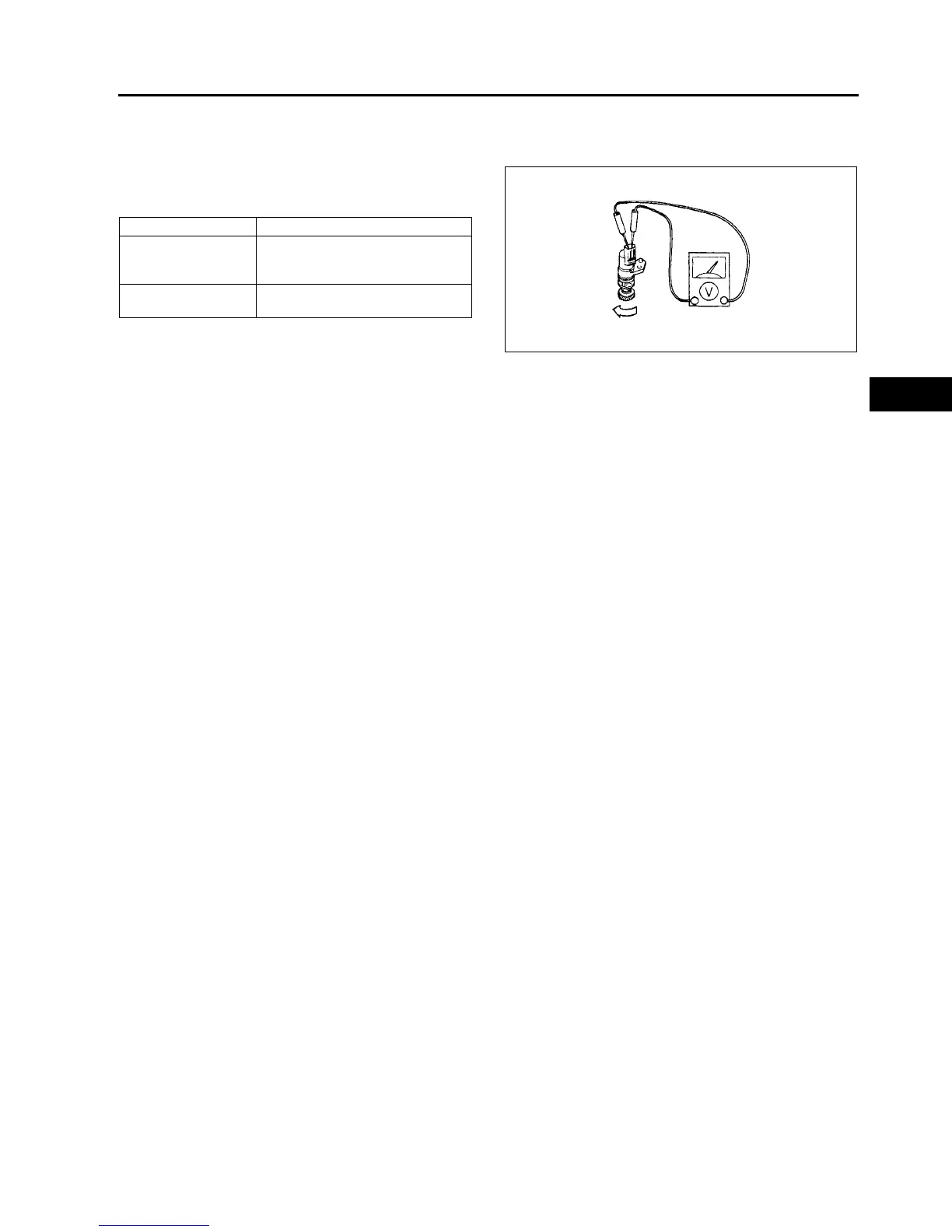

2. Measure voltage (AC range) between terminals of
the vehicle speedometer sensor while the gear is
turning.
3. Install the vehicle speedometer sensor.
End Of Sie
MANUAL TRANSAXLE REMOVAL/INSTALLATION
A6E511201029W01
1. Remove the battery, battery tray and battery bracket.
2. Remove the air cleaner compornent. (See F10 INTAKE-AIR SYSTEM REMOVAL/INSTALLATION.)
3. Remove the wheels, tires and splash shields.
4. Remove the under cover.
5. Remove the steering gear and power steering pipe. (See N10 STEERING GEAR AND LINKAGE REMOVAL/
INSTALLATION.)
6. Remove the front auto leveling sensor. (See T32 FRONT AUTO LEVELING SENSOR REMOVAL/
INSTALLATION.)
7. Drain the transaxle oil into a suitable container.
8. Remove in the order indicated in the table.
9. Install in the reverse order of removal.
10. Adjust the headlight zeroset. (See T31 HEADLIGHT ZEROSET.)
11. Add the specified amount of specified transaxle oil.
12. Install the air cleaner compornent. (See F10 INTAKE-AIR SYSTEM REMOVAL/INSTALLATION.)
13. Warm up the engine and transaxle, inspect for oil leakage, and inspect the transaxle operation.
Meter needle Action
Moves slightly under
5 V (AC range)
Repair wiring harness between
instrument cluster and vehicle
speedometer sensor.
Does not move Replace vehicle speedometer
sensor.
W6U515WA4
