Mazda 6 2002 - Rear Window Glass Removal

S68
WINDOW GLASS
REAR WINDOW GLASS REMOVAL
A6E773863931W01
1. For the 4SD, remove the following parts:
(1) Remove the headliner.
(2) Remove the rear package trim.
2. For the 5HB, remove the following parts.
(1) Remove the rear wiper arm and blade.
(2) Remove the liftgate lower trim.
3. Apply protective tape along the edge of the body to protect it from damage.

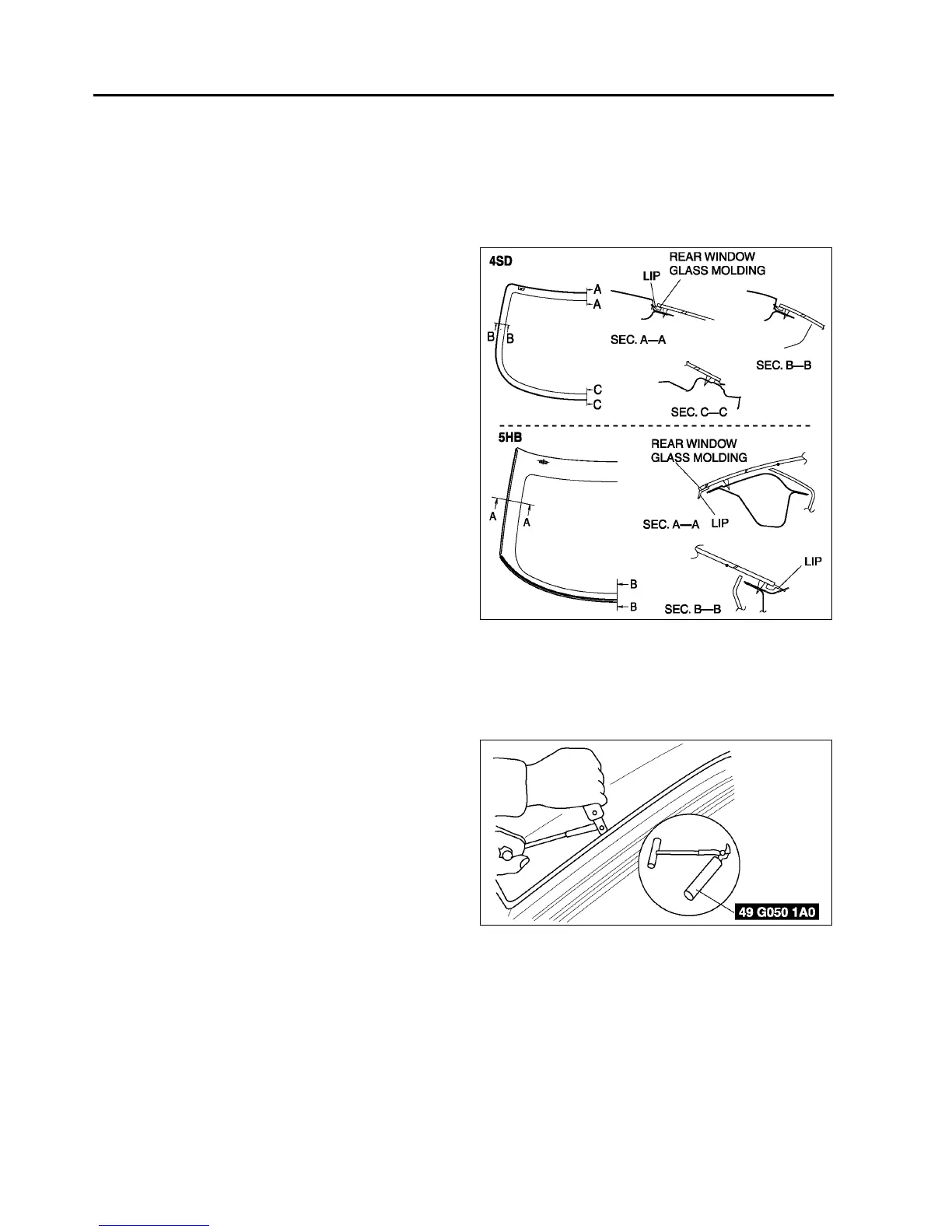

4. Cut the lip of the rear window molding using a
razor.
Warning
•
••
• Using a razor with bare hands can cause
injury. Always wear gloves when using a
razor.
Note
• The rear window molding is a replacement
part.
Not Reusing Glass
Note
• For the areas of the sealant that are difficult to cut, use a SST (piano wire) and follow the procedure under
Reusing Glass.
1. Use a SST, and insert the blade into the sealant.
2. Pull through the sealant around the edge of the
glass.
3. Remove the glass.
A6E7738W009
A6E7738W022
