ON-BOARD DIAGNOSTIC [MULTIPLEX COMMUNICATION SYSTEM]
T141
T
MULTIPLEX COMMUNICATION SYSTEM
A6E816255430W01
Outline
• In case the controller area network (CAN) system is malfunctioning, read the DTCs of the following modules,
using the SST (WDS or equivalent) to determine the malfunctioning system.
PCM
DSC HU/CM (with DSC)
ABS (ABS/TCS) HU/CM (with ABS (ABS/TCS)
Instrument cluster
Flowchart

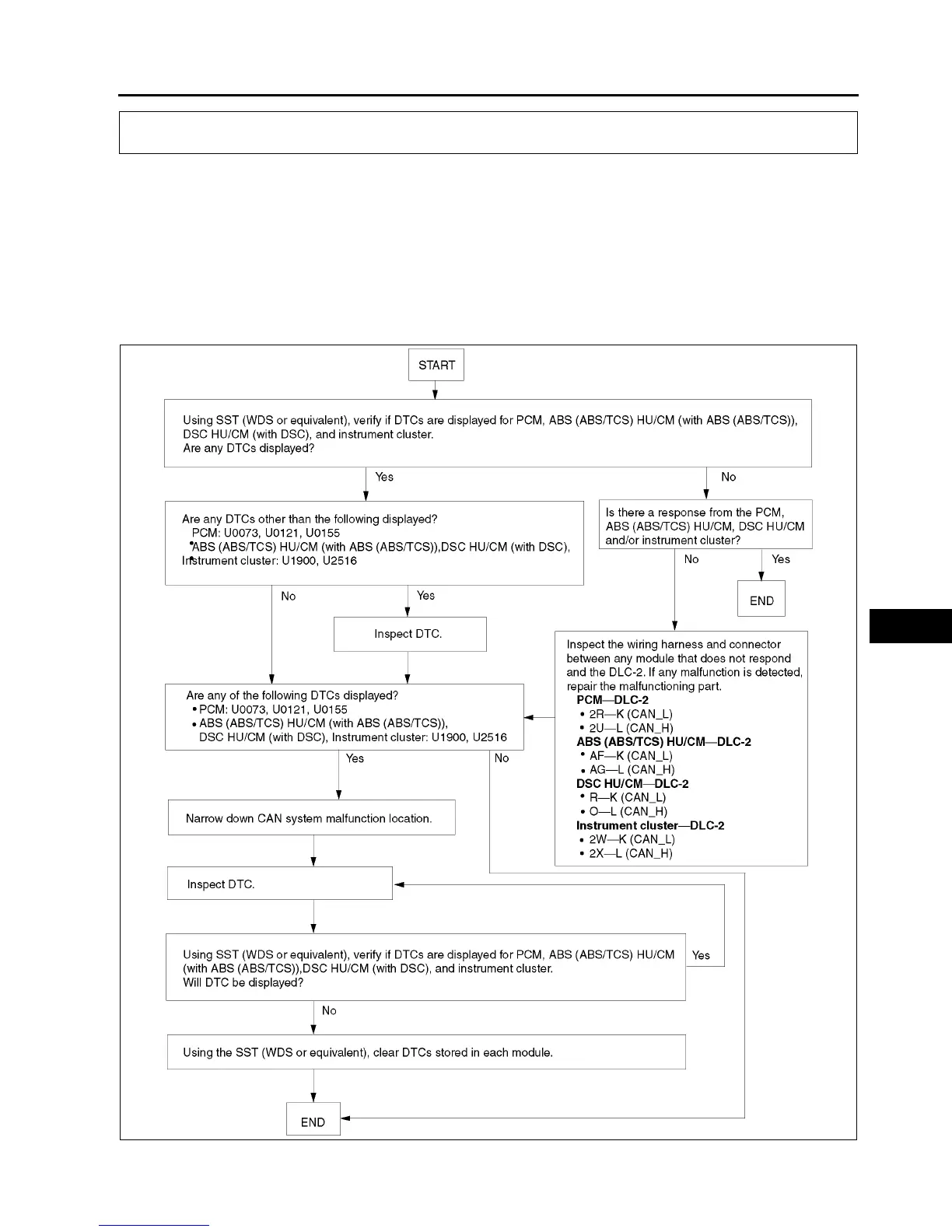

• Use the following flowchart to verify the cause of the trouble.
