Mazda 6 2002 - Curtain Air Bag Module Removal;Installation

T122
AIR BAG SYSTEM
1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.
3. Turn the ignition switch to ON position.
4. Verify that the air bag system warning light
illuminates for approximately 6 seconds and
then goes off.
• If the air bag system warning light does not
operate in the manner described above, there
are malfunctions in the system. Inspect the system using the on-board diagnostic.
Connector Removal Note
1. Using a flathead screwdriver, pry out the
connector's stopper plate.
2. Disconnect the connector.
End Of Sie

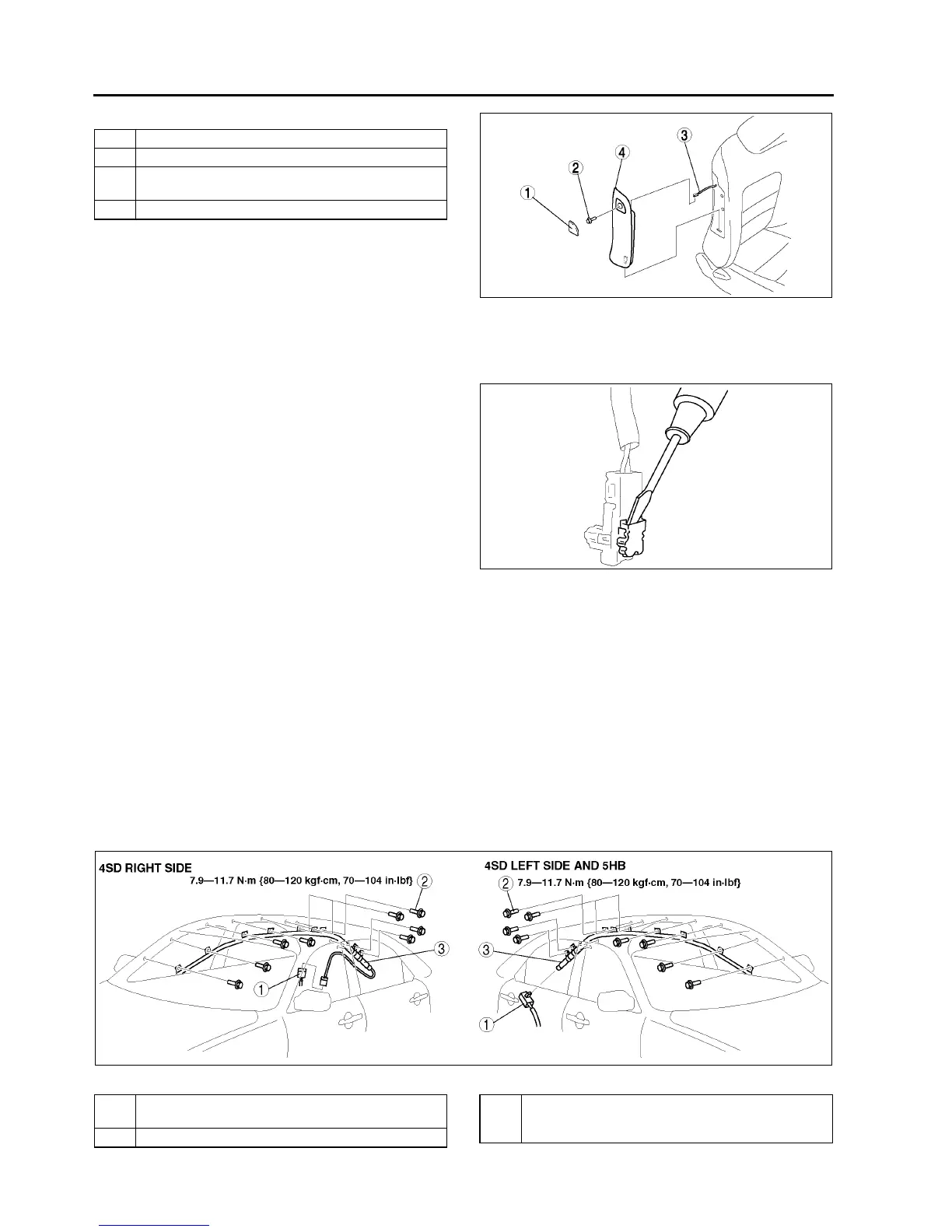

CURTAIN AIR BAG MODULE REMOVAL/INSTALLATION
A6E813000171W01
Warning
•
••
• Handling the air bag module improperly can accidentally deploy the air bag module, which may
seriously injure you. Read AIR BAG SYSTEM SERVICE WARNINGS before handling the air bag
module. (See T117 SERVICE WARNINGS.)
1. Turn the ignition switch to LOCK position.
2. Disconnect the negative battery cable and wait for more than 1 minute.
3. Remove the headliner.
4. Remove in the order indicated in the table.
5. Install in the reverse order of removal.
6. Turn the ignition switch to ON position.
7. Verify that the air bag system warning light illuminates for approximately 6 seconds and then goes off.
• If the air bag system warning light does not operate in the manner described above, there are malfunctions
in the system. Inspect the system using the on-board diagnostic.
.
1Cover
2Bolt
3 Connector
(See T122 Connector Removal Note)
4 Side air bag module
A6E8130W004
A6E8130W002
A6E8130W026
1 Connector
(See T123 Connector Removal Note)
2Bolt
3 Curtain air bag module
(See T123 Curtain Air Bag Module Installation
Note (4SD Right Side))
