Mazda 6 2002 - Front Shock Absorber Inspection

R12
FRONT SUSPENSION

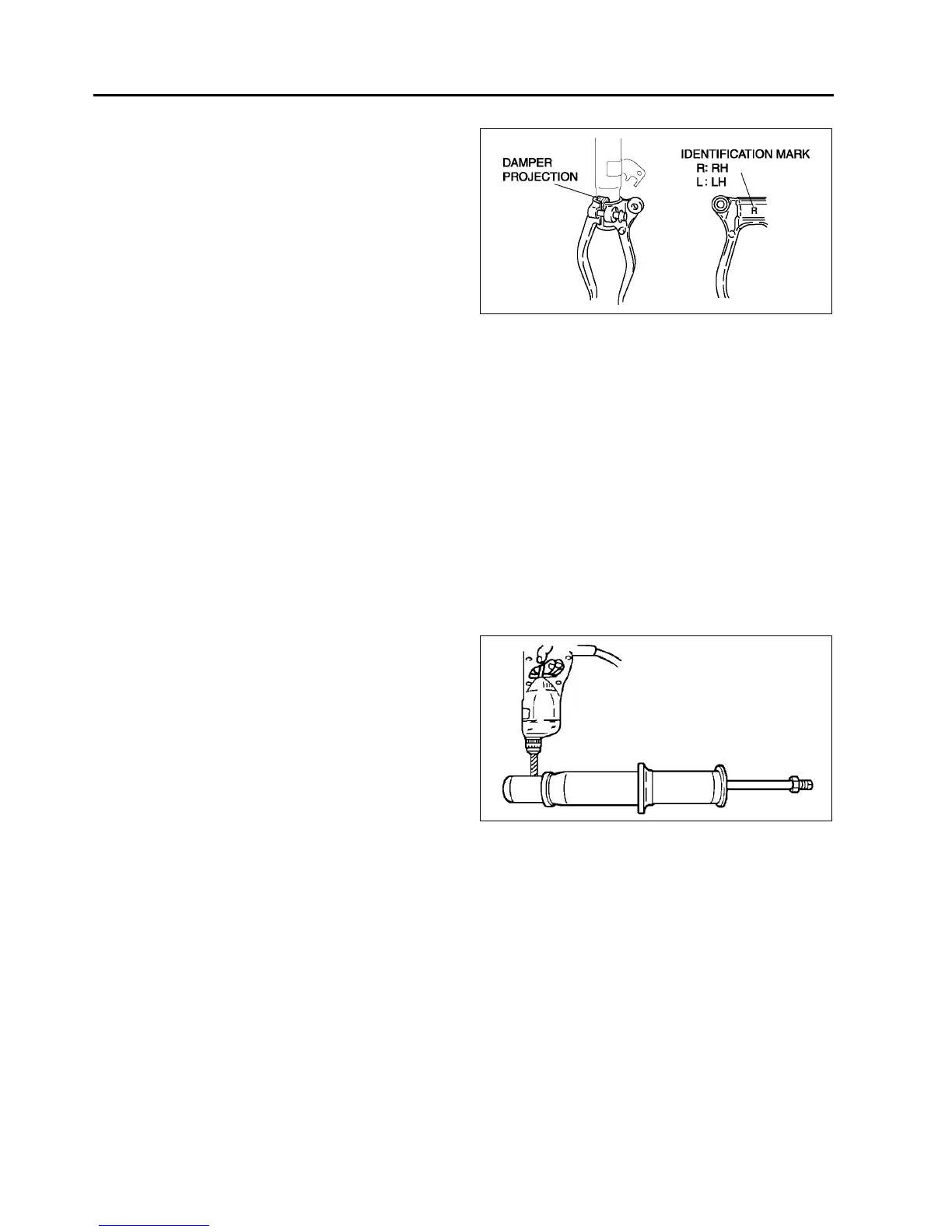

Damper Fork Installation Note
1. Align the gap of the damper fork with the
projections of the damper.
2. Tighten the bolt.
End Of Sie
FRONT SHOCK ABSORBER INSPECTION
A6E741434700W01
1. Remove the front shock absorber from the vehicle.
2. Inspect for damage and oil leakage.
3. Inspect the rubber bushing for deterioration and wear.
4. Compress and extend the shock piston at least three times. Verify that the operational force does not change
and that there is no unusual noise.
• If not as specified, replace the shock absorber.
(1) Compress the shock absorber piston and release it.
(2) Verify that the piston extends fully at a normal speed.
End Of Sie
FRONT SHOCK ABSORBER DISPOSAL
A6E741434700W02
Warning
•
••
• Whenever drilling into a shock absorber, wear protective eye wear. The gas in the shock absorber
is pressurized, and could spray metal chips into the eyes and face when drilling.
1. Clamp a shock absorber on a flat surface or with the piston pointing downwards.
2. Drill a 23 mm {0.080.12 in} hole at a point
2030 mm {0.81.2 in} from the bottom of the
tube, so that the gas can escape.
3. Turn the hole downwards.
4. The oil can be collected by moving the piston rod
several times up and down and cutting the tube at
the end.
5. Dispose of waste oil according to the waste
disposal law.
Note
• Shock absorber gas is nitrogen gas.
• Shock absorber oil is mineral oil.
End Of Sie
A6E7414W005
A6E7414W022
