Mazda 6 2002 - Rear Coil Spring; Removal;Installation

REAR SUSPENSION
R29
R
REAR COIL SPRING REMOVAL/INSTALLATION
A6E741628011W01
1. Remove the rear auto leveling sensor.
(See T32 REAR AUTO LEVELING SENSOR REMOVAL/INSTALLATION.)
2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.
4. Adjust the headlight zeroset.
(See T31 HEADLIGHT ZEROSET.)
5. Inspect the rear wheel alignment.
(See R6 REAR WHEEL ALIGNMENT.)
.
Bolt (Rear Lower Arm Outer Side) Removal Note
1. Support the lower arm with a jack.
2. Loosen the inner bolt of the lower arm.
3. Remove the outer bolt of the lower arm.

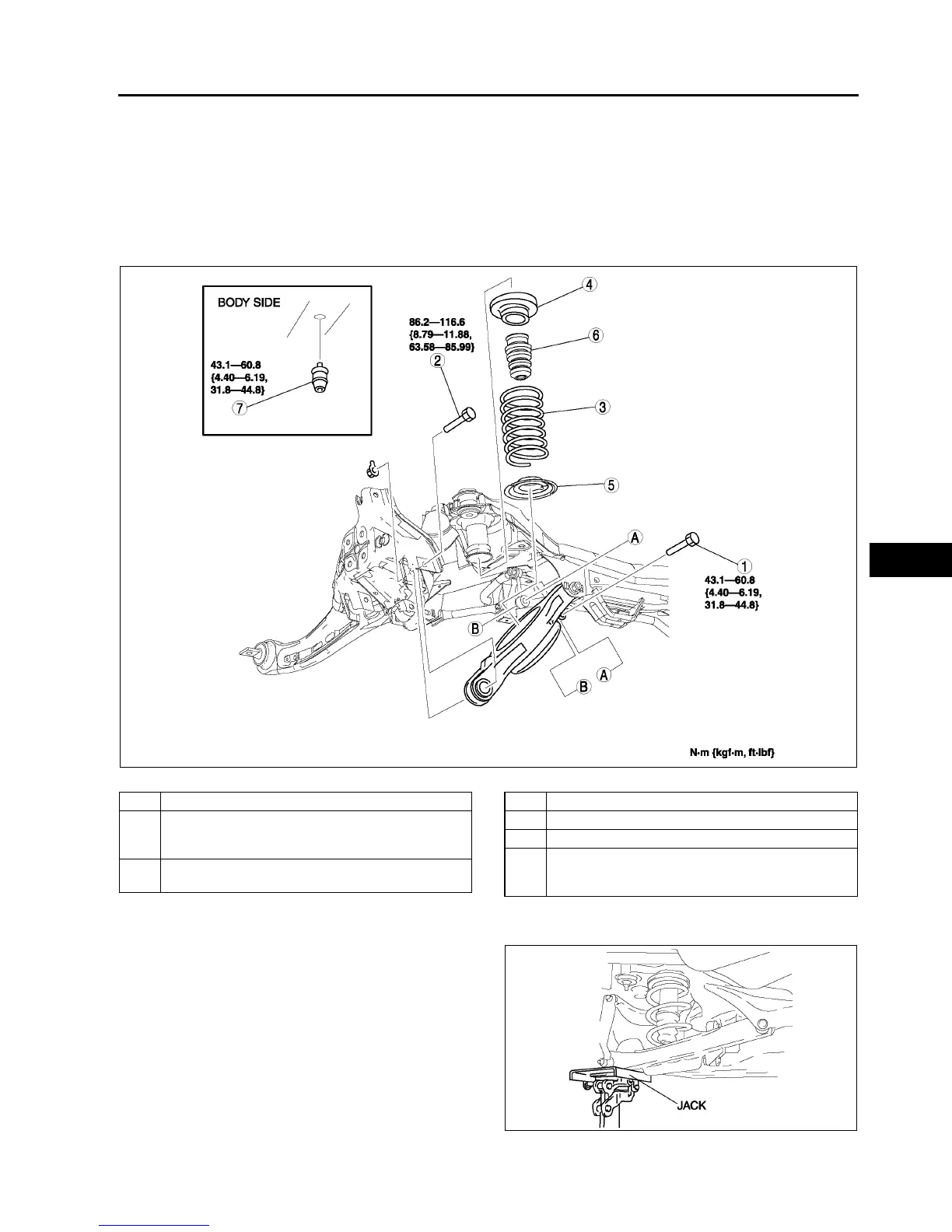

A6E7416W022
1 Bolt (stabilizer control link lower side)
2 Bolt (rear lower arm outer side)
(See R29 Bolt (Rear Lower Arm Outer Side)
Removal Note)
3 Rear coil spring
(See R30 Rear Coil Spring Installation Note)
4 Upper spring seat rubber
5 Lower spring seat
6 Bound stopper (spring side)
7 Bound stopper (body side)
(See R30 Bound Stopper (Body Side) Removal/
Installation Note)
A6E7416W019
