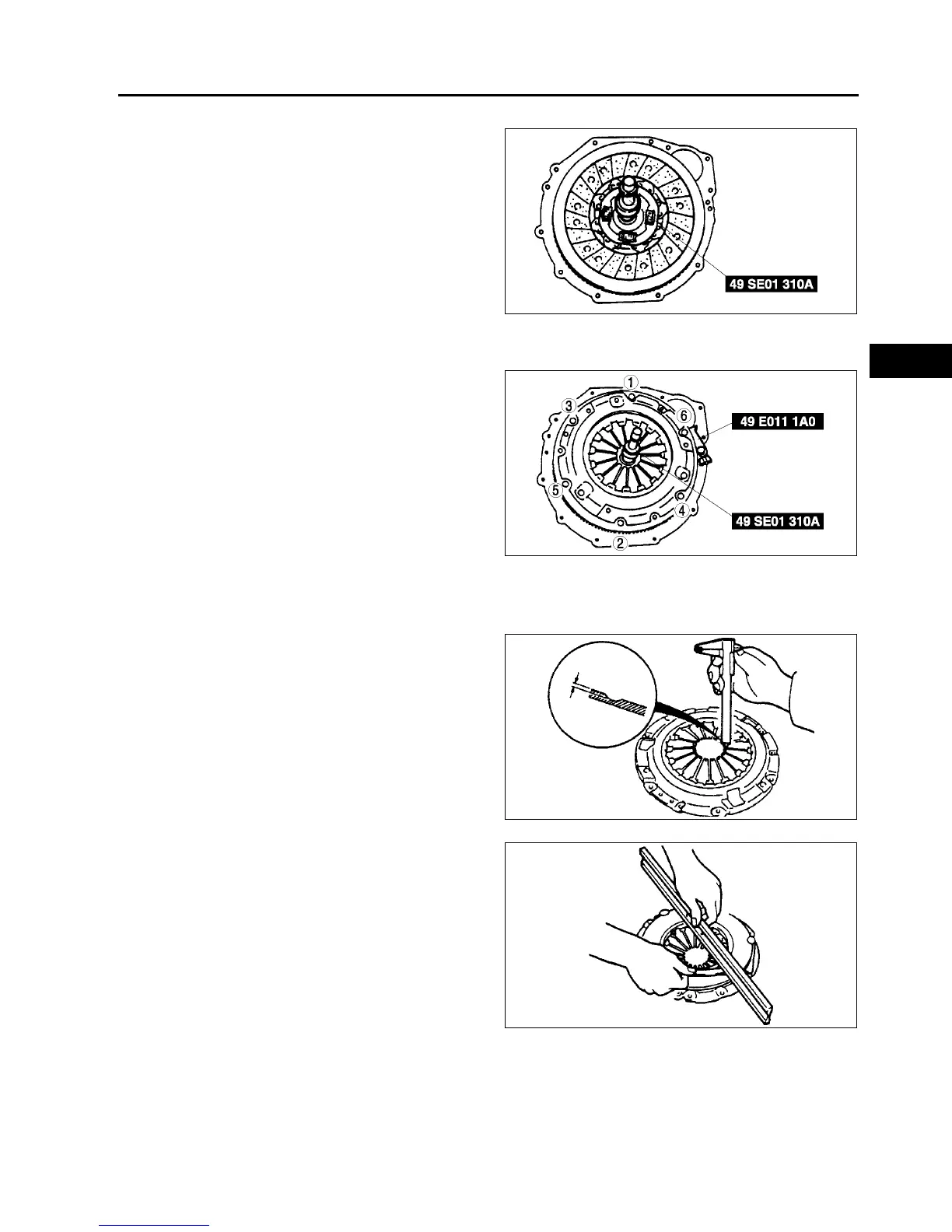

Mazda 6 2002 - Clutch Cover Inspection

CLUTCH UNIT
H13
H
Clutch Disc Installation Note
1. Hold the clutch disc position using the SST.
Clutch Cover Installation Note
1. Install the SSTs.
2. Tighten the bolts evenly and gradually in a
crisscross pattern.
Tightening torque
18.625.5 N·m {1.92.6 kgf·m, 1419 ft·lbf}
End Of Sie
CLUTCH COVER INSPECTION
A6E492016410W01
1. Measure the wear of the diaphragm spring
fingers.
• If not as specified, replace the clutch cover.
Depth
0.6 mm {0.024 in} max.
2. Measure the flatness of the pressure plate with a
straight edge and a feeler gauge.
• If not as specified, replace the clutch cover.
Maximum clearance
0.5 mm {0.020 in}
3. When checking the diaphragm spring fingers,
mount a dial indicator on the cylinder block.
A6E4920W005
A6E4920W006
XME4920W010
XME4920W011
