S60
OUTSIDE MIRROR

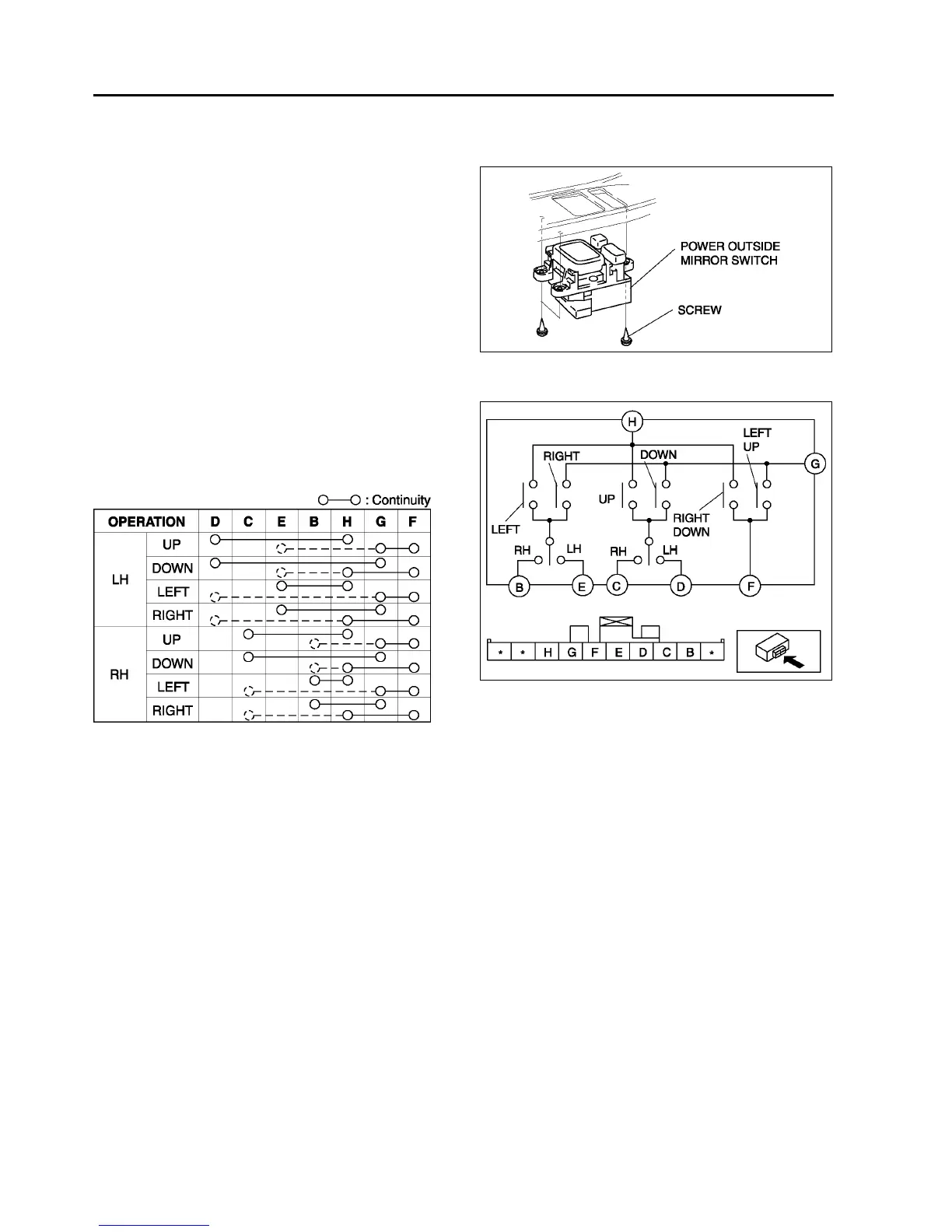

POWER OUTSIDE MIRROR SWITCH REMOVAL/INSTALLATION
A6E773266600W01
1. Disconnect the negative battery cable.
2. Remove the front door trim.
3. Remove the screws and the power outside mirror
switch.
4. Install in the reverse order of removal.
End Of Sie
POWER OUTSIDE MIRROR SWITCH INSPECTION
A6E773266600W02
1. Inspect for continuity between the power outside
mirror switch terminals using an ohmmeter.
• If not as specified, replace the power outside
mirror switch.
End Of Sie
A6E7732W008
A6E7732W001
A6E7734W003
