Mazda 6 2002 - Rear Door Lock Actuator Inspection; Trunk Lid Lock Actuator

S32
POWER DOOR LOCK SYSTEM
REAR DOOR LOCK ACTUATOR INSPECTION
A6E771872310W01
Door Lock Actuator
1. Disconnect the front door lock actuator connector.
2. Apply battery positive voltage to the front door
lock actuator terminals and inspect the operation
of the front door lock actuator.
• If not as specified, replace the front door lock
actuator.
With double locking system
( ) : RH
Without double locking system
( ) : RH
Door Lock-link Switch (With Theft-deterrent System
1. Disconnect the front door lock actuator connector.
2. Inspect for continuity between the door lock-link
switch terminals using an ohmmeter.
• If not as specified, replace the front door lock
actuator.
End Of Sie
TRUNK LID LOCK ACTUATOR INSPECTION
A6E771856840W02
1. Disconnect the trunk lid lock actuator connector.
2. Apply battery positive voltage to the trunk lid lock
actuator terminals and inspect the operation of the
trunk lid lock actuator.
• If not as specified, replace the trunk lid lock.
End Of Sie
Connection
Actuator operation
B+ GND
A
(F)
F
(A)
Lock
F
(A)
A
(F)
Double lock
F and E
(A and B)
E
(A)
Unlock
Actuator operation
Connection
B+ GND
Lock
A
(F)
B
(E)
Unlock
B
(E)
A
(F)

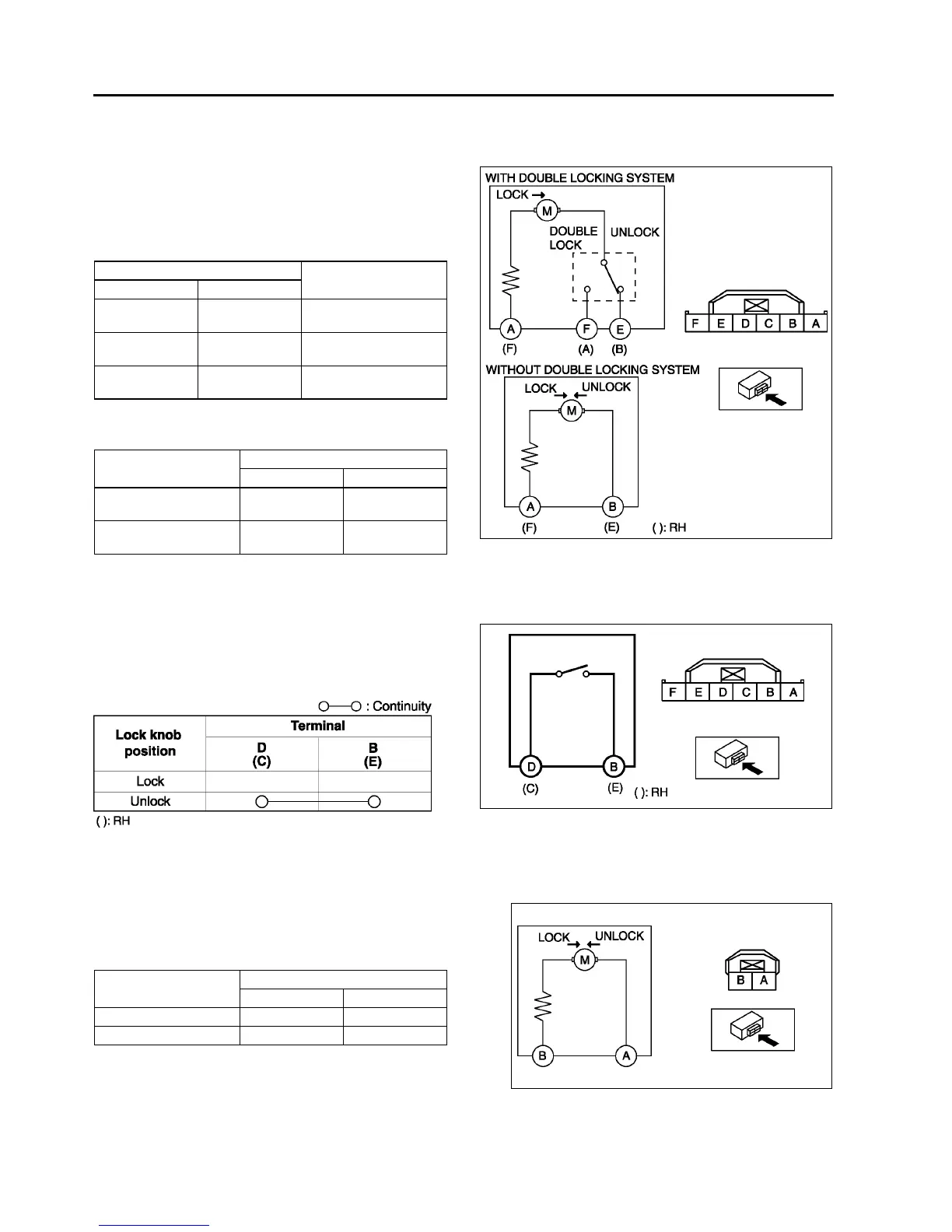

A6E7718W018
A6E7718W010
A6E7718W019
Actuator operation
Connection
B+ GND
Lock A B
Unlock B A
A6E7718W016
