Mazda 6 2002 - Page 803

DASHBOARD AND CONSOLE
S85
S

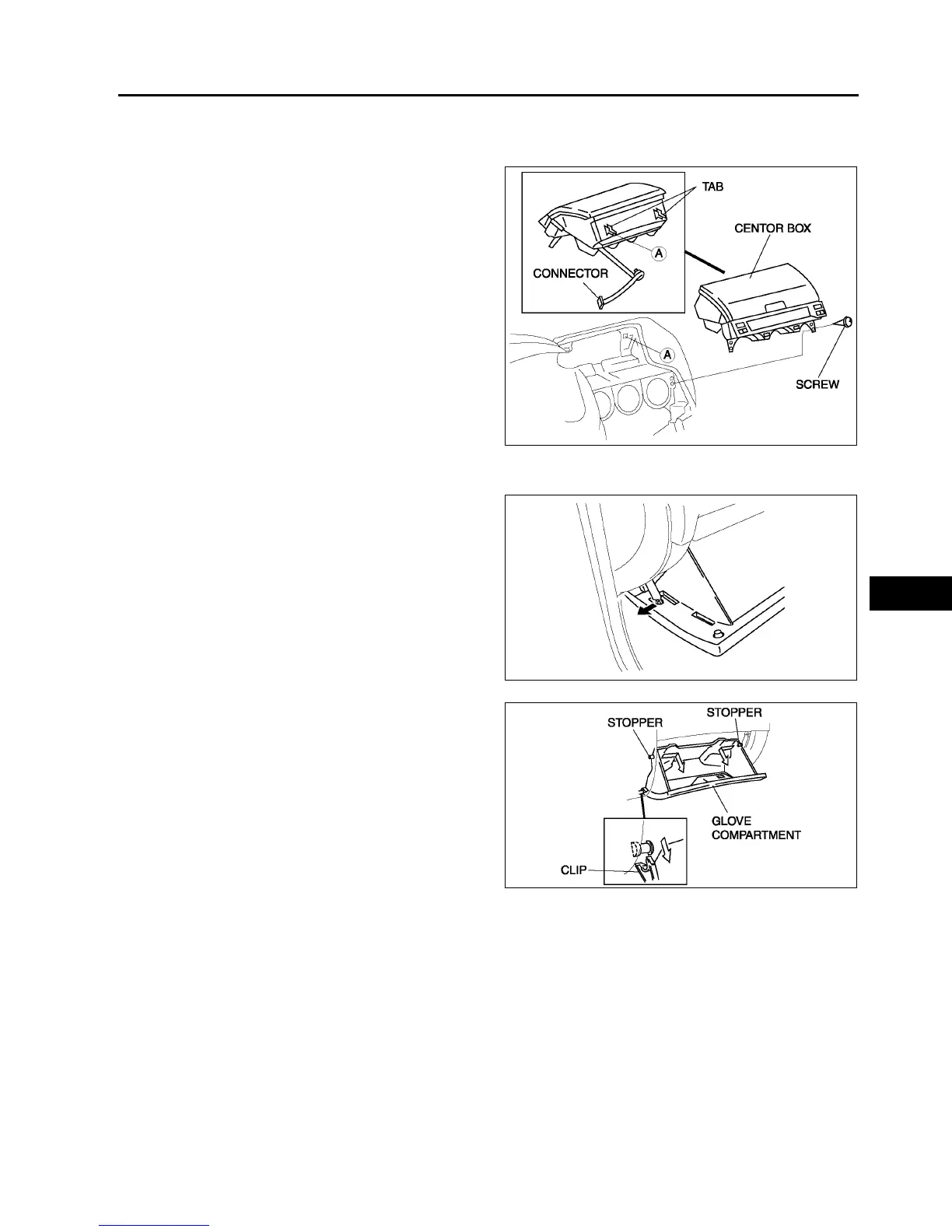

CENTER BOX REMOVAL/INSTALLATION
A6E774264030W01
1. Disconnect the negative battery cable.
2. Remove the center panel module.
3. Remove the screws.
4. Pull the center box forward, then disengage the
tabs
5. Disconnect the LDC unit connector.
6. Install in the reverse order of removal.
End Of Sie
GLOVE COMPARTMENT REMOVAL/INSTALLATION
A6E774264030W02
1. Pull the stay damper to the direction shown in the
figure. Then detach the fit for the glove
compartment from the stay damper.
2. Bend the stoppers inward to remove.
3. Turn the glove compartment downward and pull
the clips to remove it.
4. Install in the reverse order of removal.
End Of Sie
A6E7742W012
A6E7742W006
A6E7742W007
