U30
CONTROL SYSTEM

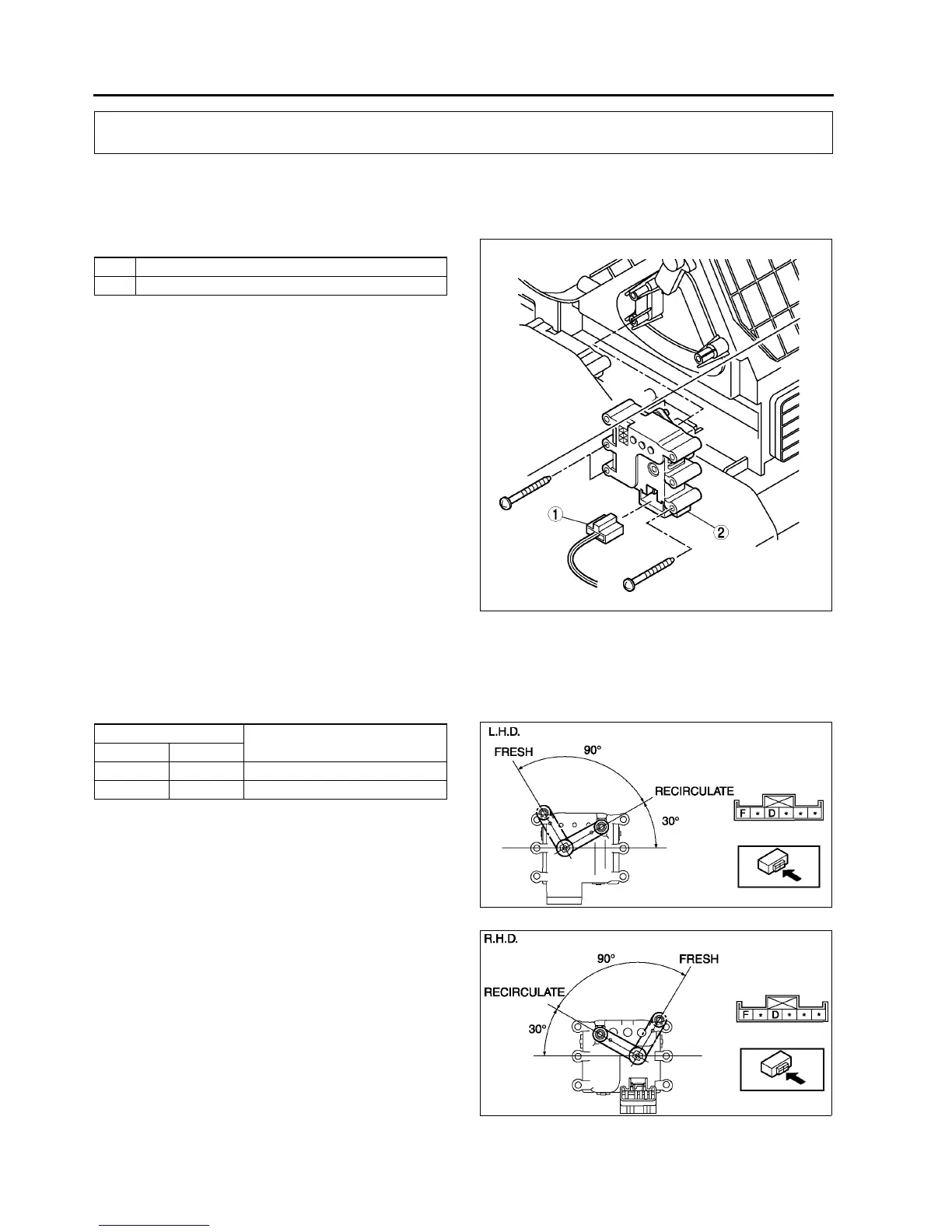

AIR INTAKE ACTUATOR REMOVAL/INSTALLATION
A6E854061060W01
1. Disconnect the negative battery cable.
2. Remove the glove compartment.
3. Remove the car navigation unit. (See T98 CAR-NAVIGATION UNIT REMOVAL/INSTALLATION.)
4. Remove in the order indicated in the table.
5. Install in the reverse order of removal.
End Of Sie
AIR INTAKE ACTUATOR INSPECTION
A6E854061060W02
1. Connect battery positive voltage to terminal D or F and ground to terminal F or D of the air intake actuator.
2. Verify that the air intake actuator operates as shown below.
• If not as specified, replace the air intake actuator.
CONTROL SYSTEM
1 Air intake actuator connector
2 Air intake actuator
A6E8540W001
Connection
Movement
B+ GND
D F RECIRCULATE→FRESH
F D FRESH→RECIRCULATE
A6E8540W002
A6E8540W003
