U32
CONTROL SYSTEM

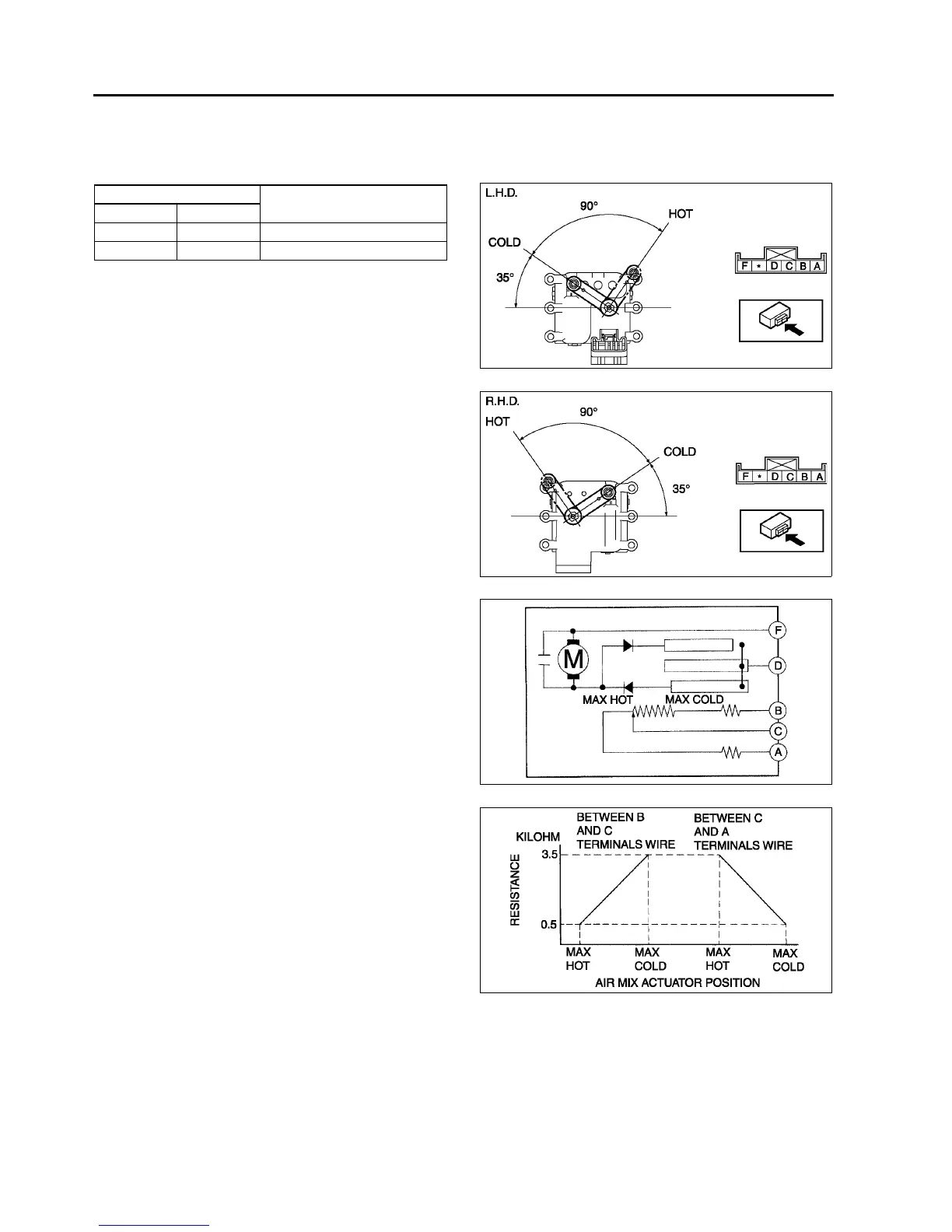

AIR MIX ACTUATOR INSPECTION
A6E854061415W02
1. Connect battery positive voltage to terminal D or F and ground to terminal F or D of the air mix actuator.
2. Verify that the air mix actuator operates as shown below.
• If not as specified, replace the air mix actuator.
3. Verify that the resistance between the terminals
of the air mix actuator are as shown in the graph.
• If not as specified, replace the air mix
actuator.
End Of Sie
Connection
Movement
B+ GND
DF COLD→HOT
FD HOT→COLD
A6E8540W005
A6E8540W006
A6E8540W044
A6E8540W045
