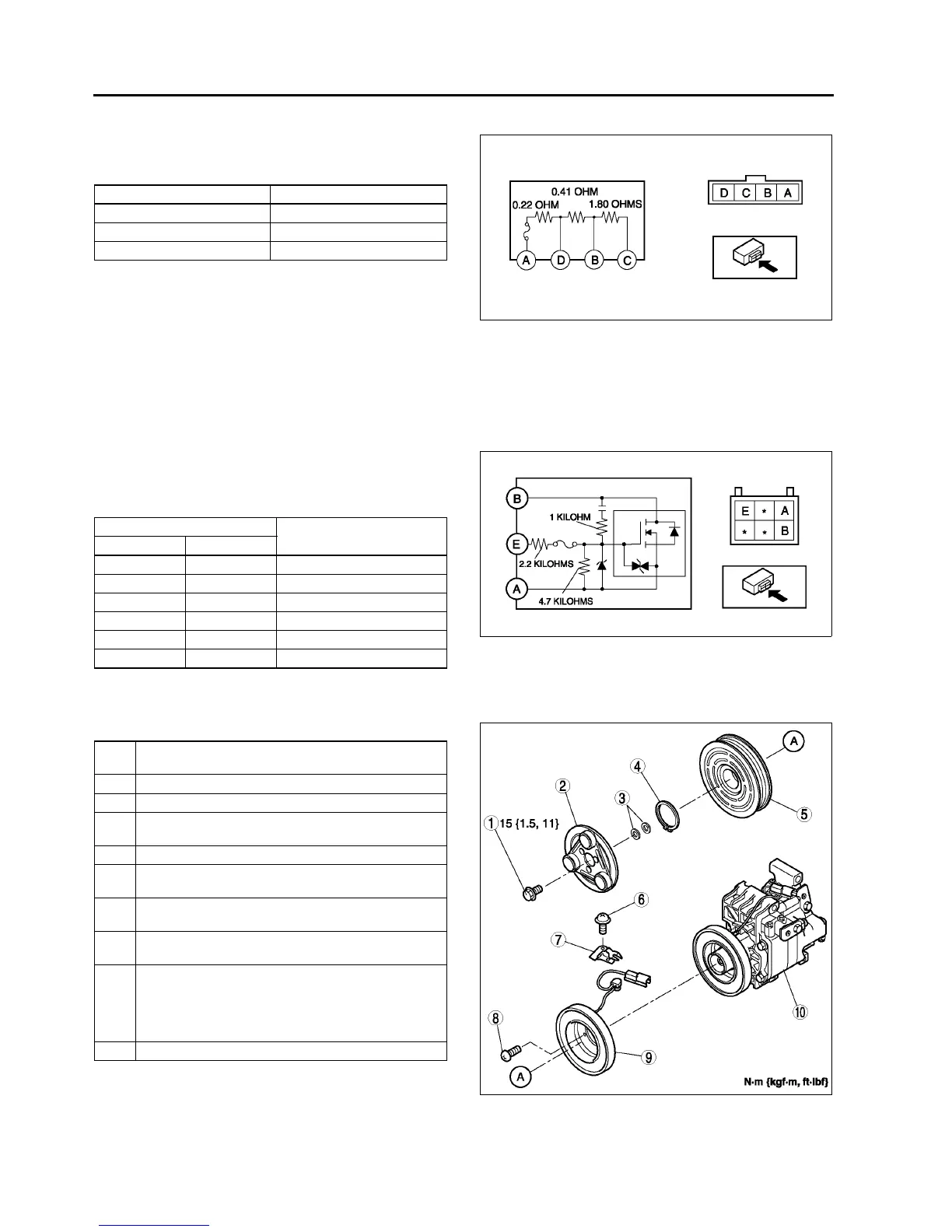

RESISTOR INSPECTION
A6E854061215W02
1. Verify that the resistance between the terminals
of the resistor is as shown in the table.
• If not as specified, replace the resistor.
End Of Sie
POWER MOS FET REMOVAL/INSTALLATION
A6E854061B15W01
(See U35 RESISTOR REMOVAL/INSTALLATION.)
End Of Sie
POWER MOS FET INSPECTION
A6E854061B15W02
1. Verify that the resistance between the terminals
of the power MOS FET is as shown in the table.
• If not as specified, replace the power MOS
FET.
End Of Sie
MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY
A6E854061010W01
1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.
3. Adjust the magnetic clutch clearance. (See U38
MAGNETIC CLUTCH ADJUSTMENT.)
Terminal Resistance (ohm)
AD 0.210.23
AB 0.600.68
AC 2.292.62
A6E8540W012
Ohmmeter lead
Resistance (kilohm)
+ −
−−
−
AB ∞
AE 6.9
BA Continuity
BE Continuity
EA 6.9
EB ∞
A6E8540W013
1Bolt
(See U37 Bolt Removal/Installation Note)
2 Pressure plate
3Shim
4 Snap ring
(See U37 Snap Ring Installation Note)
5 A/C compressor pulley
6Screw
(See U37 Screw Installation Note)
7Clamp
(See U37 Clamp Installation Note)
8Screw
(See U37 Screw Installation Note)
9 Stator and thermal protector
(See U37 Stator and Thermal Protector Removal
Note)
(See U37 Stator and Thermal Protector Installation
Note)
10 A/C compressor body
A6E8540W014
