MAGNETIC CLUTCH ADJUSTMENT
A6E854061010W02

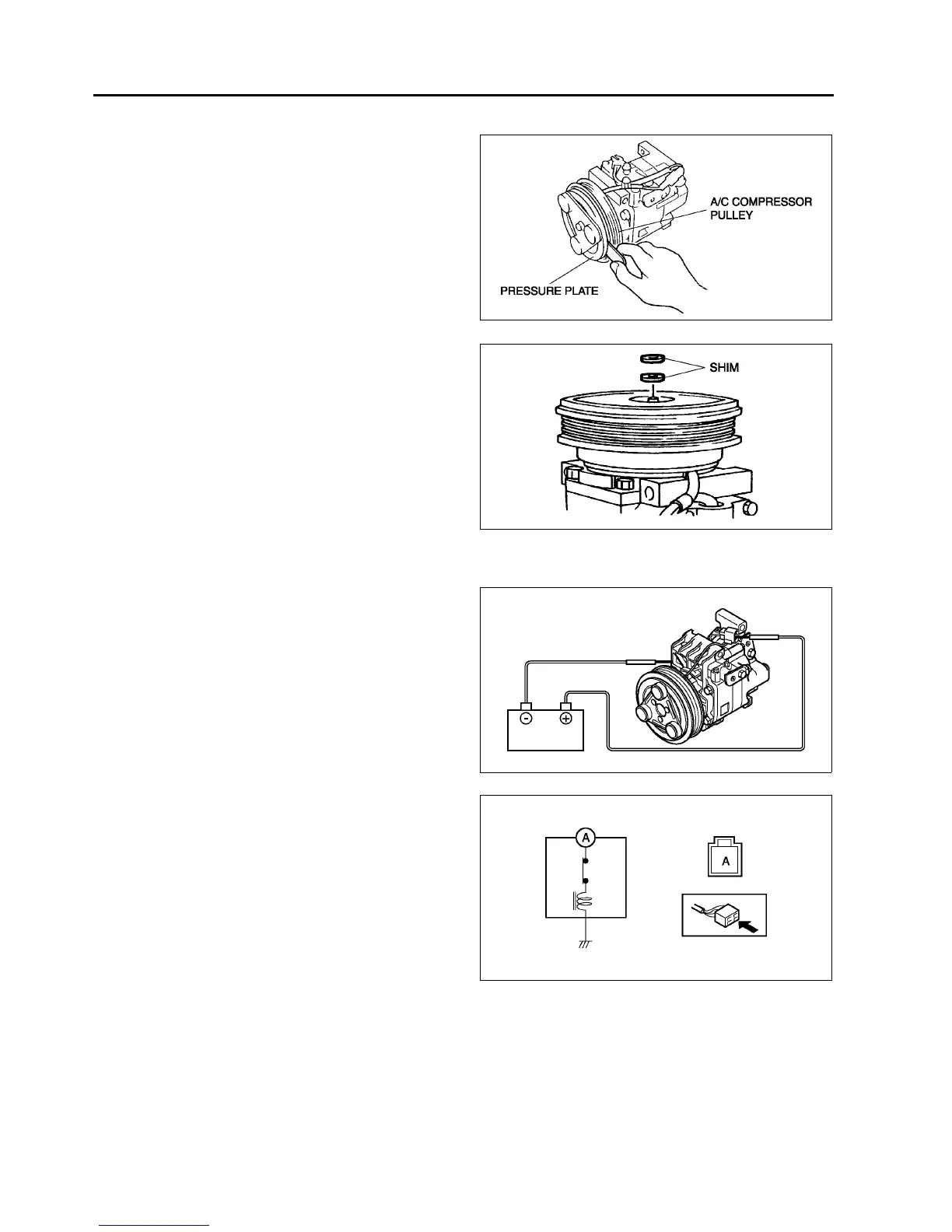

1. Measure the clearance around the entire
circumference between the pressure plate and A/
C compressor pulley using a thickness gauge.
2. Verify that the clearance is within the
specification.
• If not within the specification, remove the
pressure plate and adjust the clearance by
changing the shim (0.2 mm {0.008 in}, 0.5
mm {0.02 in}) or the number of shims.
Clearance
0.30.5 mm {0.0120.019 in}
End Of Sie
MAGNETIC CLUTCH INSPECTION
A6E854061010W03
1. Connect battery positive voltage to terminal A of
magnetic clutch and ground to A/C compressor
body.
2. Verify that the magnetic clutch operates.
• If not as specified, replace the stator and
thermal protector.
End Of Sie
