ENGINE SPEED SENSING POWER STEERING
N17
N

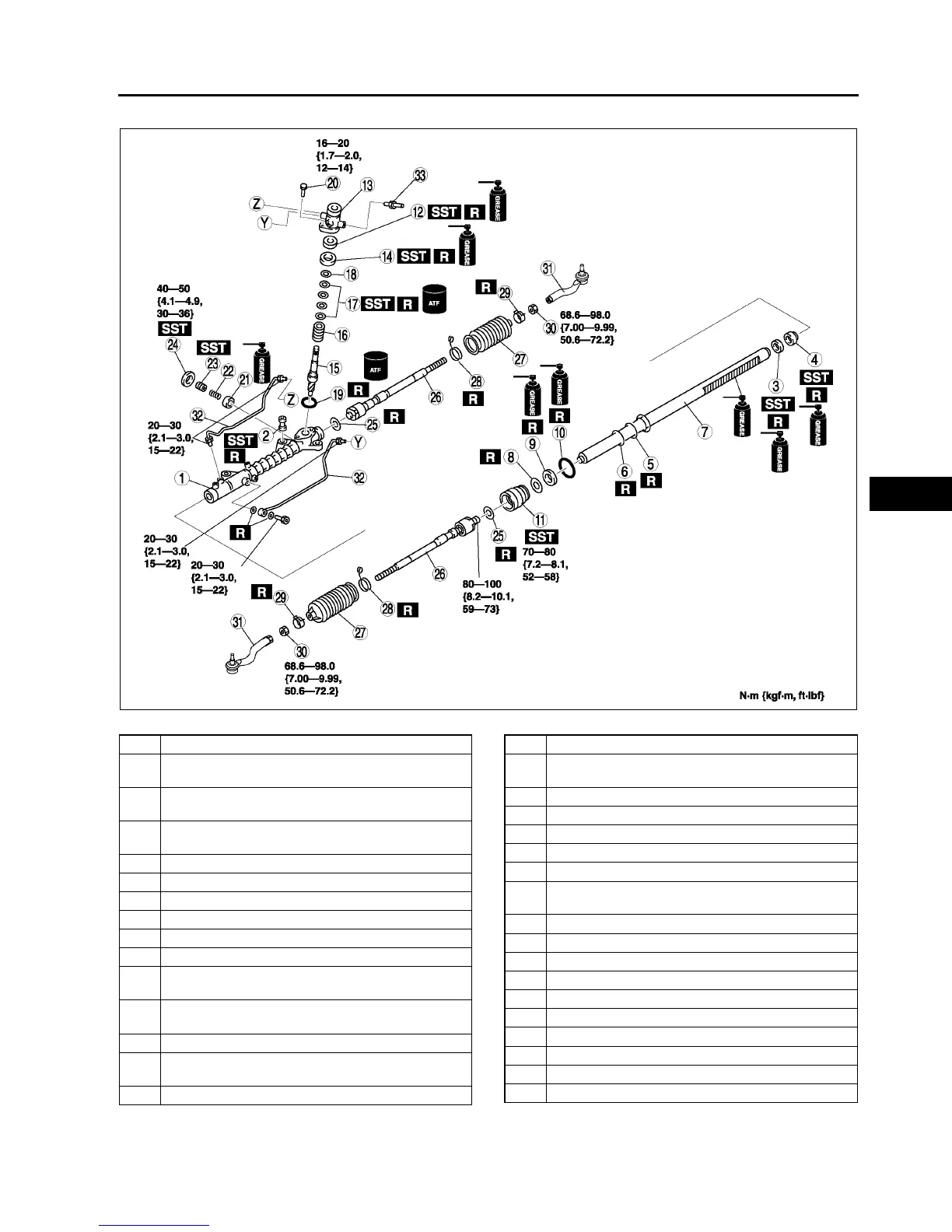

1. Assemble in the order indicated in the table..
A6E0612W044
1 Gear housing
2 Mounting rubber
(See N18 Mounting Rubber Assembly Note)
3 Oil seal
(See N18 Oil Seal, Inner Guide Assembly Note)
4 Inner guide
(See N18 Oil Seal, Inner Guide Assembly Note)
5 O-ring
6 Seal ring
7Steering rack
8 Backup ring
9U-gasket
10 O-ring
11 Holder
(See N19 Holder Assembly Note)
12 Oil seal
(See N20 Oil Seal Assembly Note)
13 Valve housing
14 Upper bearing
(See N20 Upper Bearing Assembly Note)
15 Pinion shaft
16 Control valve
17 Seal ring
(See N20 Seal Ring Assembly Note)
18 Snap ring
19 O-ring
20 Bolt
21 Support yoke
22 Yoke spring
23 Adjusting cover
(See N20 Adjusting Cover Assembly Note)
24 Locknut (adjusting cover)
25 Washer
26 Tie rod
27 Boot
28 Boot band
29 Boot clamp
30 Locknut
31 Tie-rod end
32 Oil pipe
33 Return pipe
