CONVENTIONAL BRAKE SYSTEM
P11
P
Master Cylinder Installation Note
Caution
•
••
• Always install the gasket of the power brake unit push rod before performing measurement
inspections or adjustments.

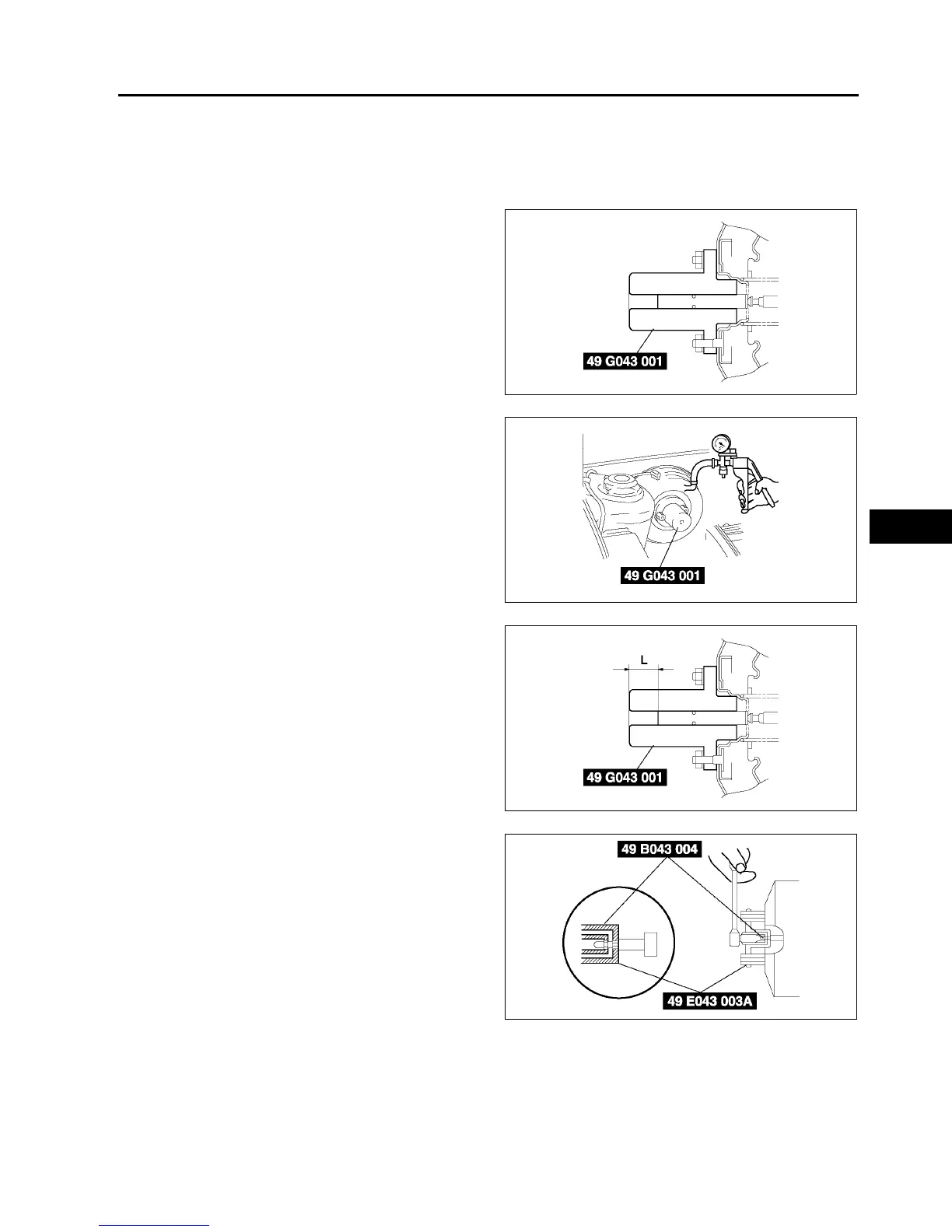

1. Install the SST to the power brake unit as shown,
and tighten within the specified torque.
Tightening torque
9.816.0 N·m {100163 kgf·cm, 87141
in·lbf}
2. Using a vacuum gauge, create a vacuum
pressure of 66.7 kPa {500 mmHg, 19.7 inHg} in
the power brake unit.
3. Using calipers, measure dimension L as shown.
Specification
22.7 mm{8.94 in}
4. If dimension L is not within the specification as
shown, remove SST (49 E043 001) and use SST
(49 B043 004) to adjust the length of the push rod
while using SST (E043 003A) to keep the push
rod from rotating.
5. Remove the SSTs, replace SST (49 E043 001)
and measure dimension L again.
A6E6912W042
A6E6912W029
A6E6912W030
A6E6912W031
